NMB Miniature & Small Sized Ball Bearings

Compact high-performance motors rely on miniature ball bearings for smooth, efficient rotation. Modern precision devices – from drones and robots to smartphones and medical instruments – all depend on a humble but critical component hidden inside them: miniature ball bearings. These tiny bearings (typically 35 mm or less in outer diameter) support shafts and rotating parts, enabling motion with minimal friction. When early small gadgets and electric motors first emerged, many relied on simple bushings or low-grade bearings. Those early solutions often suffered from high friction, noise, and wear – requiring frequent maintenance and limiting performance. The shortcomings of plain bearings in small mechanisms underscored the need for a better solution. This need gave rise to high-precision miniature ball bearings, which have since become indispensable for modern engineering. Today,NMB miniature and small ball bearings are widely found  in precision equipment, delivering the quiet, smooth, and reliable rotation that we often take for granted. NMB  since 1951, has played a leading role in advancing these components, offering designers a vast array of premium NMB brand miniature bearings to power the next generation of innovative products.

Precision Construction and Engineering

Creating a miniature ball bearing that can spin smoothly at high speed under load is an impressive engineering feat. Each NMB bearing consists of several precision-machined components that must work in harmony: an outer ring, an inner ring, a series of spherical balls, and a retainer (also called a cage) that evenly spaces the balls. The inner and outer rings have grooved raceways on their facing surfaces, forming a circular track in which the balls roll. The retainer holds the balls equally spaced around the raceway, preventing them from clustering or rubbing and ensuring uniform load distribution. In many designs, thin metallic or polymer shields are added on one or both sides to keep lubricant in and contaminants out, further improving longevity. Every one of these parts is made with extreme precision – even minor imperfections can lead to vibration or early failure when the bearing is in use.

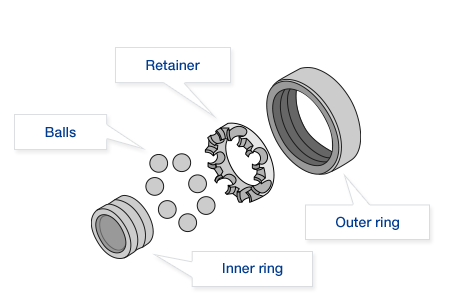

An exploded view of a miniature ball bearing, showing its core components: the inner ring, outer ring, balls, and cage (retainer). Each part is machined to micron-level tolerances to ensure smooth rotation. The quality of a ball bearing’s construction directly determines its performance. In a high-precision miniature bearing, the rings are ground and lapped so that their raceways are perfectly round and smooth. The steel balls (often made of hardened chrome steel or stainless steel) are polished into near-perfect spheres, typically within millionths of an inch accuracy. This precision minimizes vibration and friction – critical for applications like small brushless motors or robotic actuators where even slight roughness can cause noise or reduce efficiency. NMB ‘s  manufacturing process emphasizes ultra-precision at every step: advanced machining equipment shapes the rings and retainer with minimal variance, and automated inspection systems check ball diameter and roundness to ensure consistency. By tightly controlling factors like raceway geometry, surface finish, and ball sphericity, these miniature bearings achieve remarkable rotational accuracy and low noise levels. The result is a component that enables high RPM rotation and precise motion control, all within a very small form factor.

Beyond the core components, the choice of materials and finishes also enhances performance. Most miniature ball bearings use high-grade bearing steels for rings and balls, which provide a balance of hardness (for wear resistance) and toughness (to handle shock and loads). Some specialized designs incorporate ceramic balls or hybrid constructions to further reduce friction or weight. The cages may be made of metal (e.g., brass or stainless steel) or engineered polymer, optimized to reduce drag on the rolling elements. Lubrication is carefully selected and often pre-packed during assembly – a quality grease or oil that will last the bearing’s intended life and suit the device’s speed and temperature range. All these engineering details in construction ensure that when a miniature bearing is put into service, it runs smooth from the first rotation and continues to perform reliably over a long lifespan.

Integrated-Shaft Designs for Compact Precision

One innovative design approach that NMB offers is the integrated-shaft ball bearing. In a conventional setup, if an assembly needs two supporting bearings (for example, to stabilize both ends of a small shaft or gear), an engineer would typically use two separate ball bearings spaced a certain distance apart. In an integrated-shaft design, by contrast, the bearing’s inner race is actually built as part of the shaft itself. In practice, this means the shaft is machined with two raceway grooves on it, and a single set of balls and retainer can run on those grooves, effectively combining what would be two bearings into one integrated unit. The outer ring in this design may be a single concentric piece corresponding to both raceways on the shaft. This clever integration eliminates the need for a separate inner ring for each bearing – the shaft doubles as the inner ring.

The integrated-shaft bearing design brings several advantages in high-precision, compact mechanisms. First, it ensures perfect alignment between what would have been two separate bearings. Since the raceways are directly machined onto one shaft, there is no risk of misalignment between two individual inner rings. This leads to more precise rotation of the shaft with less runout (wobble) than using two independent bearings. Second, it can save space and reduce parts count. Instead of a shaft plus two bearing inner rings, you have just a shaft that incorporates those raceways – streamlining the assembly and often making it lighter. Fewer parts can also mean improved reliability. Integrated-shaft ball bearings are particularly useful in applications where there is very limited space and a need for high accuracy. For example, camera systems benefit from this design; many advanced video camera lenses and miniature zoom mechanisms use integrated-shaft bearings to support smooth lens movement. By combining multiple supports into one precision piece, the lens cylinder can stay stable and true as it extends, all while keeping the mechanism compact for a portable device. Other use cases include specialized optical instruments and small rotary actuators where dual-bearing support is needed without bulk. NMB  has developed expertise in producing these integrated-shaft bearings, which require extremely tight manufacturing tolerances to get the multi-raceway shaft just right. The payoff is a uniquely compact solution that delivers top-tier rotational smoothness and accuracy in critical assemblies.

Manufacturing and Quality Advantages

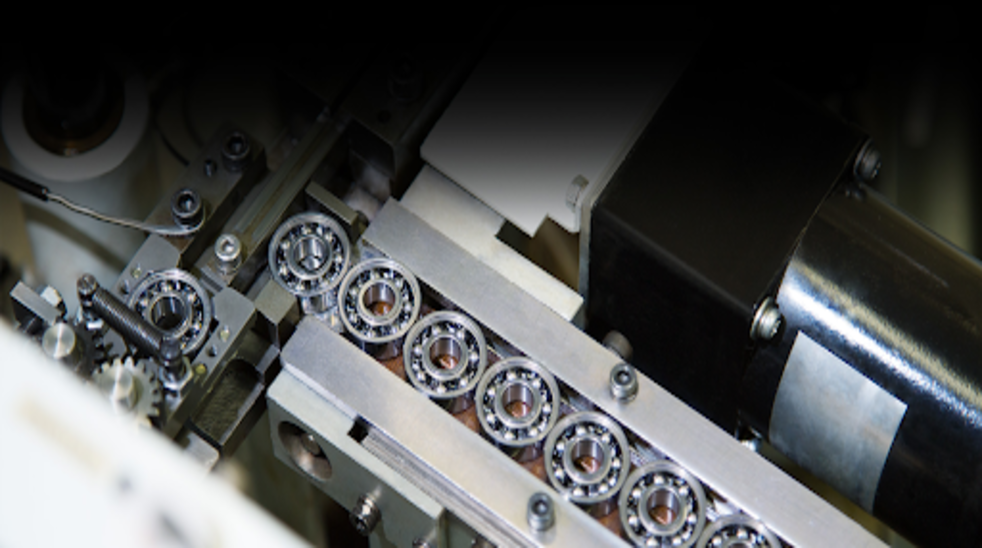

Producing millions of tiny, high-precision bearings is a challenge that NMB has mastered through decades of experience and a commitment to quality. Unlike some manufacturers that source parts from various suppliers, NMB operates a vertically integrated production system for its miniature and small ball bearings. This means that nearly every step – from refining raw materials and machining the rings, to stamping retainers, precision grinding the balls, assembly, lubrication, and final testing – is done in-house under unified quality control. By maintaining full control over the manufacturing process, the company ensures that every bearing meets the same exacting standards regardless of which factory it comes from. Currently, NMB has numerous bearing manufacturing plants worldwide (with around ten key facilities across Japan, Thailand, Singapore, China, Europe, and North America dedicated to bearings). Each plant follows the production techniques and strict quality criteria developed at the company’s headquarters in Japan, so that a bearing made in Southeast Asia or the U.S. is indistinguishable in performance and reliability from one made in Nagano, Japan.

Consistency is a hallmark of NMB’s approach – a crucial factor when customers (like electronics or automotive manufacturers) need interchangeable parts from different batches or factories. Every miniature bearing undergoes rigorous quality inspections before it ships out. Measurements of critical dimensions, noise and vibration testing, and checks for any surface flaws are standard. Statistical process control is employed on the production lines to catch any deviations early. Thanks to advanced mass-production technology and refined automated processes, NMB can achieve incredibly tight tolerances in huge volumes. In fact, the company produces thousands of different bearing models (including specialized types) and can meet large-scale demands without sacrificing precision. This capability is essential because modern industries require both quality and quantity – for instance, think of the millions of tiny bearings used in laptop fans or the numerous bearings in an assembly line of personal robotics. Engineers can have confidence that a bearing from NMB will perform as expected out of the box, and that replacement units will consistently match the specs every time.

Conclusion

Miniature and small ball bearings are crucial to maintaining high reliability and performance in precision mechatronics. They enable the creation of ever-smaller, smarter, and more reliable devices by solving a fundamental engineering challenge: how to support motion with minimal friction and maximal accuracy in a small form factor. From the smooth glide of a household robot vacuum’s wheels to the whisper-quiet spin of a drone’s propeller motor, these bearings make modern marvels possible. NMB’s commitment to ultra-precision manufacturing, innovative designs like integrated-shaft bearings, and globally consistent quality has positioned it as a leader in this field.

Ready to take the next step? If you’re looking to incorporate high-performance miniature bearings into your design, explore the extensive selection in the PIB sales catalog or contact us at  [email protected] The right bearing can elevate your project’s capabilities – and with the expertise and range offered by NMB, you’re sure to find an ideal fit. In the world of precision devices, great things truly come in small packages, and NMB ball bearings are proven as well as cost effective. .

FAQ

Q: Do miniature bearings require maintenance or lubrication?
A: Generally, miniature ball bearings are low-maintenance components. Most are factory lubricated (with a light grease or oil) and often come with shields or seals that keep the lubricant in and dirt out. This means that for the life of many devices, the bearings don’t need re-lubrication or routine maintenance. However, it’s important to use the right type of bearing for the job – for example, sealed bearings are preferable for dusty or harsh environments because they offer better protection. If a bearing is not sealed, it might require periodic cleaning and re-oiling in long-term use, but this is uncommon in modern consumer products. Ultimately, if you select a bearing suited to your operating conditions (temperature, load, speed, environment), it should function for years without intervention. Always refer to manufacturer guidelines on lubrication; NMB supplies most bearings with “for life” lubrication so that engineers can “fit and forget” these components in their designs.

Q: What are the limits of miniature ball bearings in terms of speed and load?
A: Despite their small size, quality miniature bearings can handle surprisingly high speeds and loads – but there are practical limits. Speed: Many small ball bearings are capable of very high RPM (some well over 100,000 RPM in applications like dental drills or miniature turbines) when lightly loaded and properly lubricated. The limit comes from heat and centrifugal forces: beyond a certain speed, the bearing may overheat or the balls may experience too much force against the raceway. Manufacturers publish a “maximum RPM” for each bearing type, which depends on factors like size, lubrication, and whether it has seals. Load: Miniature bearings can carry decent loads relative to their size (both radial and axial loads), but of course a smaller bearing has less absolute capacity than a larger one. Pushing a tiny bearing too hard – for example, putting a heavy radial load or shock on it – can cause deformation of the races or flattening of the balls. In design, it’s important to check the specified dynamic load rating (the load under which the bearing can operate for a defined life) and static load rating (load that can be applied without causing permanent damage when stationary). Exceeding these limits will shorten the bearing’s lifespan. In summary, while miniature bearings are engineered for robustness, staying within recommended speed and load limits is key to ensuring they perform well over time.

Q: Why choose a ball bearing over a plain bushing for small applications?
A: Ball bearings vs. bushings (sleeve bearings) is a common design consideration. Ball bearings offer a few clear advantages:

(1) Lower friction: Because ball bearings use rolling motion (balls rolling between rings) instead of sliding, they have much less starting and running friction. This makes devices run more efficiently and start up with less resistance.

(2) Precision and stability: A well-made ball bearing has tight control over clearance and can maintain a precise shaft position. This is important in applications like rotor shafts or gearboxes where any wobble or misalignment can cause problems. Bushings, especially if worn, can introduce play or stick-slip motion.

(3) Longevity: Ball bearings, when properly lubricated and sealed, generally wear less over time than plain bushings, which rely on sliding surfaces that can wear down and enlarge. There are cases where a bushing might be chosen – typically if the loads are very light and the motion is slow or oscillatory (or for cost reasons) – but for most high-performance and high-speed designs, miniature ball bearings are preferred for their efficiency, accuracy, and durability.
