Bearing Usage Across an Agricultural Drone

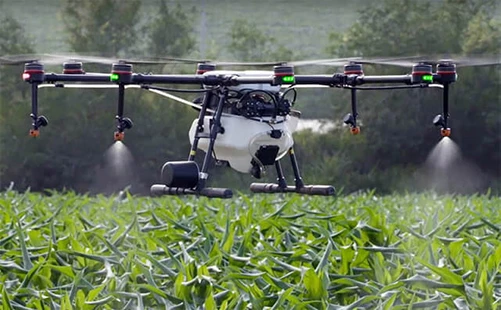

Agricultural drones – especially large crop-sprayer UAVs – rely on precision bearings in almost every moving part. These drones often face dusty, corrosive conditions in fields, so their bearings are engineered for durability with sealed designs and corrosion-resistant materials. Key areas where bearings are used include the propulsion motors, structural joints, sprayer pumps, and gimbals:

• Brushless Propulsion Motors
  The multi-rotor motors that lift a drone each contain high-precision bearings supporting the motor’s rotor shaft. Typically, two deep groove ball bearings are mounted at the top and bottom of each motor to hold the rotating bell (propeller hub) firmly in place. These bearings enable the rotor to spin at tens of thousands of RPM with minimal friction, converting battery power into lift efficiently. They also keep the motor shaft aligned, reducing vibration and “wobble” in the propellers for stable flight. In heavy spray drones, the motor bearings must also withstand significant axial thrust from the large propellers pushing downwards. Some high-end agri-drone motors therefore, use more robust bearing arrangements (e.g., larger or angular-contact bearings) to support the propeller thrust loads without premature wear.

• Folding Arms and Hinges
  To make large drones easier to transport, many agricultural drone frames have folding arms or boom extensions. At each folding joint, bearings or bushings ensure the arm can pivot smoothly and lock firmly into place when deployed. Some designs use slim, thin-section ball bearings in the hinges to save weight while providing a stable, low-friction rotation axis. In other cases – especially for smaller drones – lightweight polymer bushings might be used in the hinge to eliminate maintenance and weight. Either way, a bearing in the folding arm prevents metal-on-metal wear and helps the arm unfold with precision. Once the arm is locked out for flight, the bearing also cushions against vibrations from the motors, improving overall stability.

• Sprayer Pump and Mechanisms
  A unique feature of agricultural UAVs is the sprayer system for liquids (fertilizer, pesticide, etc.). These drones typically have one or more pump motors and rotating nozzles that rely on bearings for smooth operation. For example, the impeller pump that pressurizes the spray fluid will have bearings supporting its motor shaft and impeller. These are often stainless steel or ceramic-hybrid ball bearings, since they must resist water and chemical exposure while spinning at high speed. Bearings in the pump ensure efficient power transfer from the motor to the impeller, so that fluid flows steadily without the motor overheating from friction. Additionally, any rotating spray nozzles or agitator mechanisms use small bearings to allow continuous rotation without seizing. Given the corrosive nature of farm chemicals, sprayer drone bearings are usually sealed to keep out liquid and grit, and may be coated or made of corrosion-proof materials for longevity.

• Camera Gimbals and Sensors
  Many agricultural drones carry cameras or multi-spectral sensors on stabilized gimbals for crop monitoring. Gimbal assemblies use miniature precision bearings at each axis (pitch, roll, yaw) to allow nearly frictionless rotation. Ball bearings in the gimbal isolate the camera from the drone’s vibrations, enabling sharp photos and steady video footage even when the drone is maneuvering. For instance, a 3-axis gimbal might have two small ball bearings per axis supporting the camera platform. These gimbal bearings must be extremely smooth and free of “stick-slip.” In higher-end gimbals, pairs of preloaded bearings or even small angular contact bearings are used to eliminate any play in the camera motion. The result is a stable, level camera that can precisely track targets or create clear maps – an essential capability for precision agriculture. Even if a sprayer drone doesn’t carry an elaborate camera, it will still use bearings in any pan-tilt mounts or sensor scanners for accurate alignment.


Beyond these major subsystems, bearings appear in other parts of an agricultural drone as well. Propeller hubs often have bearings to support shaft alignment. Heavier drones may use bearings in their landing gear or payload release mechanisms to handle moving parts under stress. In all cases, using the right kind of bearing in the right spot ensures that the drone’s moving components run reliably in the field without binding or excessive wear.

Common Bearing Types in UAVs and Their Roles

Modern drones utilize several types of bearings, each chosen for specific load conditions and performance requirements. The five main categories are ball bearings, roller bearings, ceramic (hybrid) bearings, angular contact bearings, and thrust bearings. Each type has distinct characteristics suited to different parts of the drone:

Overview of five major bearing types used in drones: (1) Deep groove ball bearing, (2) Roller bearing (cylindrical type), (3) Hybrid ceramic ball bearing, (4) Angular contact ball bearing, (5) Thrust ball bearing. These bearings handle different load directions and environments in UAV systems.

Ball Bearings (Deep Groove)

Ball bearings are widely specified and used in drones, found in almost every rotating assembly. They consist of a set of hardened steel (or ceramic) balls running in raceway grooves of an inner and outer ring. The most common form is the deep groove ball bearing, a versatile design that can support loads in all directions – primarily radial loads, with moderate ability to handle axial (thrust) loads in either direction. In a drone, when you spin a motor or pivot a gimbal, it’s usually a pair of ball bearings doing the work.

Ball bearings have very low friction and excel at high-speed rotation. Because each ball contacts the races at a single point, rolling resistance is minimal even when the bearing is spinning at extreme RPM. This makes them ideal for drone motors that may turn >30,000 RPM. They also run quietly and have low vibration. Ball bearings are compact and lightweight relative to the loads they can carry – a big plus in weight-sensitive UAV designs. Maintenance is straightforward as well; most drone ball bearings are pre-lubricated and sealed or shielded for life.

UAV Applications
Brushless motors use deep groove ball bearings on the rotor shaft as their primary support. These handle the radial loads from the fast-spinning rotor and also keep the rotor centered, which prevents imbalances. Ball bearings in motors contribute to efficiency by minimizing friction (so more battery power translates to thrust instead of heat) and by enduring high-frequency vibrations without failing. Propeller hub assemblies also use pairs of ball bearings to ensure the prop shafts spin evenly. Small camera gimbals and actuators rely on miniature ball bearings for smooth motion on each axis. In folding hinges or linkages, thin-profile ball bearings might be selected to save space. Overall, the deep groove ball bearing is truly the “workhorse” bearing in drones – from tiny 5 mm diameter bearings in micro-drones up to larger bearings in 50+ kg agricultural octocopters, this type covers the majority of needs.

Roller Bearings (Cylindrical and Tapered)

Roller bearings use cylindrical rolling elements instead of balls. The line contact of rollers with the races lets them support much higher loads than ball bearings of similar size. There are two main sub-types relevant to UAVs: cylindrical roller bearings (straight rollers) for purely radial loads, and tapered roller bearings (cone-shaped rollers) that handle combined radial and one-directional axial loads. Roller bearings are less common in drones than ball bearings, but they appear in specialized high-load positions.

The chief advantage of roller bearings is load capacity. They can withstand heavy radial forces and shock loads that might damage a ball bearing. Tapered rollers additionally can take substantial thrust (axial force) in one direction, making them suitable for supporting structures that see both weight and thrust. Roller bearings are also very robust in harsh conditions – their larger contact area distributes stress, and they often have machined brass or steel cages that hold up under high load. In an agricultural drone that carries a heavy payload or large spray tank, roller bearings in key spots can dramatically improve durability.

UAV Applications
Heavy-lift drones and industrial UAVs sometimes incorporate roller bearings in the main rotor or propeller shaft supports. For example, a large quadcopter hauling a fertilizer hopper might use a small pair of tapered roller bearings in each motor mount to better sustain the weight and the propeller thrust without flexing. Tapered rollers mounted back-to-back can support the upward and downward prop forces with high rigidity, keeping the shaft alignment true even under stress. Drone gearboxes or drive systems (less common in multirotors, but present in some hybrid or fixed-wing UAV mechanisms) also use roller bearings to support shafts that see high torque and radial loads. Notably, many crop-spraying drones or delivery drones, which carry heavier loads, turn to roller bearings for their maximum load capacity in critical joints. The downside is weight and friction – roller bearings are generally heavier and create a bit more drag than ball bearings. Therefore, smaller hobby drones rarely need them; roller bearings are the “heavy lifters” reserved for when a standard ball bearing just wouldn’t last. In summary, whenever a drone design demands extra ruggedness (e.g., a large agricultural hexacopter taking off with a full 20-liter spray tank), engineers might specify roller bearings in the prop hubs or frame joints to ensure reliability over thousands of flights.

Ceramic Hybrid Bearings

Ceramic bearings in drones typically refer to hybrid ceramic ball bearings – those built with steel races but ceramic balls. The ceramic material (often silicon nitride, Si₃N₄) brings significant performance benefits. Some drones may also use fully ceramic bearings, but those are very rare and expensive; nearly all UAV applications use hybrid designs for the best balance of strength and weight.

Replacing steel balls with ceramic drastically reduces rotating mass and friction in the bearing. Silicon nitride balls are about 60% lighter than steel balls of the same size, which means the bearing generates less centrifugal force at high speeds and can spin faster without overheating. The ceramic surface is ultra-smooth and extremely hard (harder than steel), leading to lower rolling friction and less wear over time. As a result, hybrid ceramic bearings can achieve higher RPM limits and run cooler than all-steel bearings – a big plus for drone motors that are pushed to their performance limits. Another advantage is corrosion resistance: ceramic balls won’t rust, and hybrids often use stainless steel rings, making them well-suited for wet or chemically harsh environments. They also don’t conduct electricity, which can protect sensitive electronics from currents leaking through the bearing (useful in high-power motors).

UAV Applications
Ceramic hybrid bearings are considered a premium upgrade in drone design. They are commonly used in racing drones and high-performance UAV motors, where every bit of efficiency and speed counts. By cutting friction, these bearings let motors spin up faster and reduce power loss to heat – pilots might see a small increase in thrust or an extra minute or two of flight time by using hybrids. They are also favored in applications requiring long life and low maintenance, like certain professional camera drones or long-endurance survey UAVs, because the ceramic balls cause very little wear on the races, maintaining precision over many cycles. In agricultural drones, ceramic bearings can be useful for the sprayer pump motors or agitators that run for extended periods; the reduced wear and lack of corrosion help ensure the pump stays efficient after hours of spraying fertilizer (which can corrode standard steel parts). However, the cost is higher, so ceramic bearings are typically used selectively in the most critical areas. An agricultural drone might, for instance, employ hybrid ceramic bearings in its main motors if it needs maximum reliability in a corrosive environment. Many drone makers start with steel bearings and later upgrade to hybrid ceramics for increased performance or when operating in harsh climates. The general rule is that ceramic hybrids are chosen when their benefits (speed, longevity, corrosion-proofing) outweigh the extra expense, such as competitive drones or mission-critical UAVs, where bearing failure is not an option.

Angular Contact Bearings

Angular contact ball bearings are a specialized type of ball bearing designed to better support axial loads. In an angular contact bearing, the raceways of the inner and outer rings are offset at an angle, so the balls contact the races at a certain angle (often 15°, 30°, or 40°). This angled contact means the bearing can carry a much higher load in one axial direction compared to a standard deep groove bearing. However, an angular contact bearing typically needs to be installed as a matched pair (facing opposite directions) if the application requires it to handle thrust both up and down.

The primary advantage is stiffness and high thrust capacity. Angular contact bearings can sustain significant axial force without distorting or wearing rapidly. When used in pairs (one bearing oriented to take upward loads, the other for downward), they provide very rigid support for a shaft, eliminating play. This is critical in systems where any end-to-end movement or flex would cause problems – for example, a heavy drone’s rotor shaft under load. They also still handle radial loads well, so they’re great for combined load scenarios. Many angular contact bearings are made to high precision grades (ABEC-5/7) and can operate at reasonably high speeds too, although their max RPM might be a bit less than an equivalent deep groove bearing due to the preload and contact angle. In summary, angular contact bearings bring stability under load, ensuring smooth rotation even when a drone is lifting a heavy payload or executing sharp maneuvers.

UAV Applications
Angular contact bearings are found in drones that need extra support for axial forces. A prime example is in heavy-lift multirotors or crop-spraying drones, where the motor/propeller shafts may use an angular contact bearing pair to cope with the large thrust from the propellers. By orienting the bearings back-to-back in the motor mount, the drone’s prop shaft is held tightly with no axial float, which is important when each propeller might be generating tens of kilograms of lift. Another use is in coaxial rotor systems (drones with stacked dual rotors) or vertical lift fans, where an axial bearing element is needed to keep the rotor spacing constant under opposing thrust forces. High-speed racing drones performing aggressive turns might also use angular contact bearings in the main frame or in custom motor builds to prevent shaft flexing when the drone rapidly accelerates and decelerates. Additionally, gimbal systems for larger cameras could employ small angular contact bearings to achieve higher stiffness. For instance, a large drone carrying a professional DSLR camera on a gimbal might use angular contact bearings in the pan axis to support the camera’s weight without any sag, thus maintaining precise control. In practice, many drone designs use a combination of bearing types – a heavy drone might have mostly deep groove ball bearings, but add an angular contact pair on a critical axis for extra thrust support. Angular contact bearings ensure that under heavy loads, the drone’s rotating parts remain precisely aligned and smooth, which improves both performance and component life.

Thrust Bearings

Thrust bearings are designed specifically to carry axial loads (forces along a shaft) and are not intended for radial loads. They usually consist of two washers (race disks) with balls or rollers in between. In drones, thrust bearings are used to take up forces from propellers or other vertical thrust mechanisms that would otherwise push on ordinary bearings in undesirable ways. There are thrust ball bearings (with ball elements) and thrust roller bearings (often using needle-like rollers) – both function similarly, but roller types handle higher forces at the cost of more friction.

A thrust bearing provides a dedicated, low-friction interface for axial forces. This keeps axial loads from causing wear or binding in the main radial bearings. By adding a thrust bearing, designers can prevent shafts from shifting under lift forces. Thrust bearings also typically have a large diameter relative to their thickness, which gives them stability under compression. In essence, they act as a strong platform that can take the pushing or pulling force in line with a shaft, preserving the alignment of other components. Although thrust bearings are not generally high-speed devices, the ones used in drones are usually small and can still spin adequately fast for their purpose (e.g., a thrust ball bearing under a prop hub will rotate at prop speed). The use of a thrust bearing can significantly increase the lifespan of other bearings by relieving them of axial stress that they aren’t optimized for.

UAV Applications
The classic example is supporting a drone’s propeller lift force. In many motor designs, one of the two motor bearings ends up taking the brunt of the propeller’s upward pull. For heavy-thrust applications, a small thrust ball bearing can be added either above or below the prop hub to directly absorb that upward pull, rather than transmitting it through the motor’s radial bearings. This keeps the motor bearings from being overloaded in the axial direction and thus prevents premature failure. Thrust bearings might also appear in coaxial multirotor hubs or tilt-rotor mechanisms, where vertical shafts need to be held in position against propeller lift or tilt actuation forces. In a camera gimbal, a needle thrust bearing could be used on the pan axis to support the weight of the camera rig (which is an axial load on that vertical shaft) – this way, the pan motor’s own bearings aren’t carrying the full weight alone. Generally, thrust bearings in drones are used in conjunction with radial bearings: the thrust unit keeps the shaft from shifting up/down, while nearby radial bearings keep it centered. For instance, a large UAV’s rotor stack might have a deep groove ball bearing for radial support and a thrust bearing right next to it, taking the lift force; together they ensure the rotor spins freely but also stays fixed in its proper axial position. By adding thrust bearings in key spots, drone designers protect critical components from axial stress and maintain smooth, safe operation under heavy lift conditions.

FAQ: Common Questions about Drone Bearings

Q: Why are ceramic bearings used in drones?
A: Engineers sometimes choose ceramic hybrid bearings in drones to boost performance and durability. The ceramic balls have much lower friction and weight than steel balls, which lets motors spin faster with less energy loss. This can increase thrust and flight time by reducing bearing drag. Ceramic balls also don’t rust, a big advantage for drones that operate in humid or corrosive environments (for example, spraying fertilizers). By using hybrids, an agricultural drone’s motors or pump can last longer since ceramic elements suffer minimal wear and won’t corrode from chemicals. The trade-offs are cost and brittleness – ceramic bearings are more expensive, and the balls can crack under severe shock loads. For most applications, hybrid ceramics are an upgrade to achieve maximum efficiency or to solve issues like frequent bearing replacements. High-performance racing drones, long-endurance UAVs, and sprayer drones facing chemical exposure are all examples where ceramic bearings are worth considering.

Q: Do UAV motor bearings require maintenance or lubrication?
A: In general, drone motor bearings are designed to be low-maintenance. Most quality bearings come pre-lubricated (with grease or oil) and sealed or shielded so that dirt and moisture stay out. This means under normal use, you don’t need to lubricate them frequently – and in fact adding extra oil to sealed bearings can wash out the original grease, potentially harming performance. For agricultural drones, however, it’s wise to perform regular checks because of the harsh conditions: after a spray mission, for instance, you should rinse off any chemicals and make sure no grit has worked its way near the motors or pump. The bearings themselves are internal, but if you ever hear unusual grinding or see rust, it may be time to replace them. Some drone operators do preventative motor rebuilds, swapping in fresh bearings after a certain number of flight hours. The key is to keep the bearings dry and clean. If a motor does get soaked (e.g., in rain or fertilizer), spinning it out and drying it will help preserve the bearing lubrication. In summary, routine inspection is more important than re-lubrication. High-quality bearings will run for many hundreds of flights before needing attention, especially if the drone is kept clean. Always follow manufacturer guidelines; for example, DJI suggests checking for any roughness in motors and replacing bearings if needed in their Agras drones. With proper care, your drone’s bearings will reliably do their job without much intervention.

Q: What are common causes of bearing failure in drones?
A: The most common culprits are contamination, overload, and normal wear. Contamination happens when dirt, sand, or moisture penetrates a bearing – this can lead to rust or abrasive damage on the races. Agricultural drones are especially vulnerable to this if seals are compromised, given the dust and chemicals in fields. Using sealed or stainless bearings helps prevent this kind of failure. Overload occurs when the bearing experiences forces beyond its design limits (for example, a hard crash landing or consistently carrying payloads heavier than planned). This can deform the bearing (a failure mode called brinelling) or cause excessive heat. If a drone’s propeller hits an object or the drone is dropped, bearings may need inspection since the impact can dent the raceways. Normal fatigue will eventually affect any bearing: after many hours of high-speed rotation, the material can develop micro-fractures. This is why high-mileage motors might start to feel “notchy” or noisy – the bearings are simply wearing out. Signs of a failing bearing include increased vibration or noise (a rough grinding or whining sound in the motor), reduced efficiency (motor draws more current for the same thrust), or excess play in shafts. If caught early, bearings can be replaced relatively cheaply compared to an entire motor or gimbal. To avoid failures, ensure you’re using the right type of bearing for the job (e.g.,don’t overload a small ball bearing when a roller bearing is needed), keep bearings protected from the environment, and adhere to any service intervals. Many drone crashes and component failures have ultimately been traced to a $5 bearing giving out at the wrong time – so it pays to choose high-quality, appropriately rated bearings from the start.

Q: Are stainless steel bearings necessary for crop-spraying drones?
A: Using stainless steel bearings (or hybrids with ceramic) is highly recommended for any drone that will be exposed to water or agro-chemicals. While standard chrome steel bearings have great hardness, they can rust quickly when in contact with water, fertilizers, or pesticides. Agricultural spraying creates a very hostile environment: fine mist can work its way into crevices, and fertilizer chemicals can be corrosive. Stainless steel bearings (typically made from 440C stainless) have a protective oxide layer that greatly resists rust. This means they won’t pit or seize up even after repeated spraying operations, as long as they’re properly sealed. Many manufacturers specifically advertise that their agri-drone motors and pumps use stainless or coated bearings for this reason. If stainless versions aren’t available, another approach is to ensure the bearings have robust seals (like rubber contact seals) and then rinse the drone after use to remove residue. Hybrid ceramic bearings are another good solution since the ceramic balls and often stainless races will not corrode. In short, for a crop-spraying UAV, investing in corrosion-resistant bearings will significantly improve reliability and reduce maintenance. It helps the drone operate season after season without the grief of bearings locking up due to rust.

Precision Drone Bearings from PIB

Building a reliable agricultural drone means choosing the right bearings for each subsystem, from the propellers down to the pump. Pacific International Bearing Sales (PIB) offers a full catalog of precision bearings to meet these needs. We stock deep groove ball bearings for high-speed motors, sealed stainless bearings for corrosive environments, thin-section and angular contact bearings for specialized UAV applications, and hybrid ceramic options for those seeking ultimate performance. Our engineering team can help you identify the ideal bearing grade and material (chrome steel, stainless, ceramic, etc.) to handle your drone’s loads and environment. Contact us at [email protected]
