Discover Gantry Robots for Industrial Automation

What Are Gantry Robots?

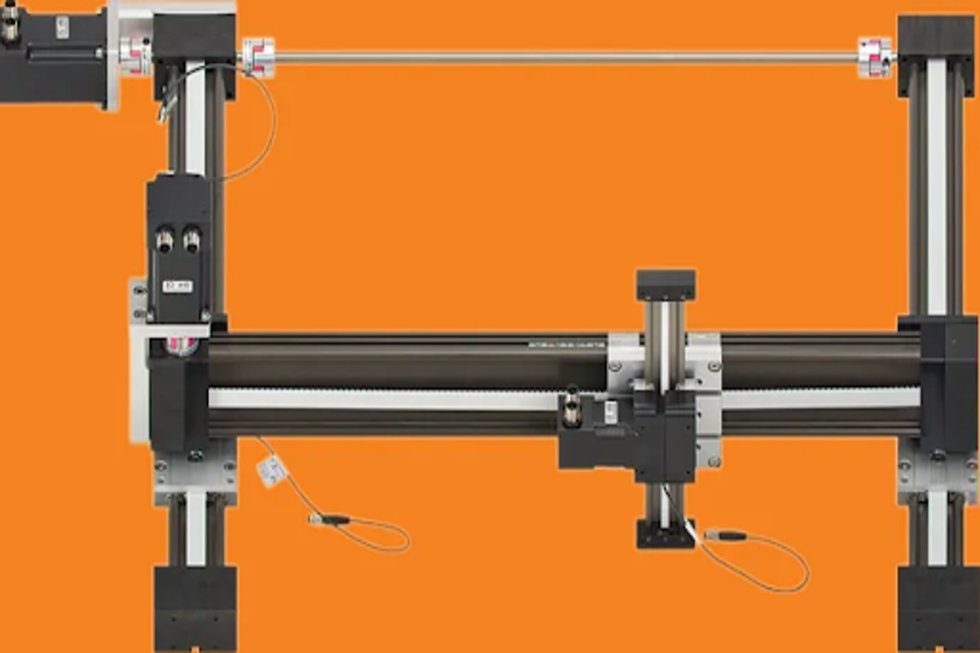

Gantry robots – also known as Cartesian or linear robots – are industrial robots that move in the Cartesian coordinate system (X, Y, Z) using linear axes. In a typical gantry design, the robot’s axes are arranged at right angles on a rigid overhead gantry frame, often resembling a bridge or crane. The X- and Y-axis rails are mounted above the work area, with a crossbeam and a sliding carriage; a Z-axis extends downward for vertical motion. This allows the robot to traverse an expansive rectangular or cubic work envelope, reaching any point within its range from above. Gantry robots essentially “hang” their moving axes over the workspace, which frees up floor space and enables them to handle large or long workpieces with ease.

Operation: Gantry robots are driven by motors that move each axis along precision linear guides or tracks. The controller coordinates the X, Y, and Z motions so the end-effector (tool) can be positioned accurately in three dimensions. Because each axis is a linear slide, the robot’s motion is straightforward and highly repeatable – the path is defined by Cartesian coordinates rather than the complex kinematics of an articulated arm. This simplicity translates into intuitive programming and reliable performance. In industrial automation, gantry robots play a critical role in performing tasks such as pick-and-place, packaging, assembly, and more over large areas that would be impractical for traditional 6-axis arm robots. Gantries are often the workhorses of modern production, known for handling heavy loads and performing precise, repetitive motions across wide spans.

Key Features and Benefits of Gantry Robots

Gantry robots offer a range of features that make them attractive for industrial automation projects. Some of their key benefits include:

• Space-Saving Overhead Installation: Gantry robots are mounted above the work zone, which means they don’t occupy valuable floor space. The overhead rails allow them to service large areas or multiple workstations in the least amount of space compared to floor-bound robots. By moving on an elevated frame, gantries keep the floor clear for other equipment and personnel.

• Large Work Envelope Coverage: Because they can be built with long X and Y rails, gantry systems cover a very large work envelope, often the entirety of a production cell or even a warehouse section. They can travel several meters in length, limited only by the track size, and thus handle tasks over extensive areas. An overhead gantry can reach multiple conveyor lines or machines, providing virtually cubic coverage of the workspace. This expansive reach allows one gantry robot to do the work that might require several smaller robots, improving efficiency.

• Precise Linear and 3D Movement: Gantry robots move in straight lines along rigid guides, enabling highly precise positioning in X, Y, and Z axes. The Cartesian motion means there are no compound articulation errors – each axis contributes purely linear movement. This design yields excellent accuracy and smooth motion for tasks like assembly, machining, or dispensing. The three-degree-of-freedom linear motion also makes path planning simple and exact.

• High Positioning Accuracy and Repeatability: Built on stiff frames with quality linear bearings, gantry robots achieve very high positioning accuracy and repeatability on the order of fractions of a millimeter. Their rigid, rectangular structure minimizes deflection, and they often use precision encoders or feedback devices to ensure each move is on target. The result is consistent, repeatable performance even over long distances – critical for applications like precision assembly, laser cutting, or inspection. In fact, Cartesian gantries are known to deliver some of the best accuracy of any robot design.

• Versatility in Applications and Tooling: Gantry robots are extremely versatile – they can be outfitted with a wide variety of end-of-arm tools (grippers, weld torches, dispensers, cameras, etc.) to perform different tasks. The same gantry platform might pick and place parts one day, and palletize boxes or weld large structures the next, simply by changing the end-effector. Their large range and payload capacity make them suitable for industries from automotive and electronics assembly to packaging, logistics, and even 3D printing. This adaptability across applications showcases the gantry robot’s value in almost any sector.

• Flexibility and Modular Design: Gantry systems are typically built from modular linear axes and components, which makes them easy to customize or reconfigure. Additional axes or longer rails can be added to extend reach, and each individual axis can be replaced or serviced with minimal downtime. This modularity means a gantry robot can be engineered to exactly fit the application’s size, speed, and load requirements. It also simplifies maintenance – for example, a worn-out ball screw or guide carriage can be swapped without discarding the entire robot. Manufacturers can even disassemble a multi-axis gantry into single-axis modules for other uses, underscoring their flexibility.

• Cost-Effectiveness vs. 6-Axis Robots: In many cases, a gantry robot offers a more cost-effective solution than a traditional six-axis articulated robot. The Cartesian design is mechanically simpler – essentially consisting of linear actuators and a frame – which generally makes gantries less expensive to manufacture at large scales. They also can cover a large area with one unit, avoiding the need for multiple robotic arms. This translates to a lower cost per unit of workspace or per task. Moreover, gantries tend to have longer service life and lower maintenance costs due to fewer moving joints. All these factors contribute to a lower total cost of ownership. Companies often choose gantry systems when they need high throughput over a wide area without the higher price tag of multiple complex robots.

• Improved Productivity and Lower Labor Costs: Gantry robots excel at performing highly repetitive tasks quickly and tirelessly. They can work 24/7 without breaks, which dramatically boosts throughput in high-volume operations. For example, a gantry can palletize or unload hundreds of parts per hour, far exceeding manual labor rates and consistency. By automating such tasks, businesses reduce reliance on manual labor for mundane or heavy work, improving workplace safety and freeing human workers for higher-value activities. In short, gantries help increase production output and reduce labor costs through reliable automation.


Critical Role of Bearings and Linear Motion Systems in Gantry Robots

Key to a gantry robot’s performance are the bearings and linear motion components that allow it to move smoothly, accurately, and reliably. Gantry systems rely on robust linear motion infrastructure, and each element – from bearings to guide rails to drive mechanisms – must be chosen carefully to meet the demands of industrial operation:

• Linear Bearings for Smooth Motion: Linear bearings enable the low-friction sliding movement of each gantry axis. Depending on the design, gantry robots may use recirculating ball bearings, self-lubricating plastic bearings, or roller bearings in their linear guides. Recirculating ball bushings and profile rail carriages use rolling balls to provide very smooth, precise motion with minimal friction. They are common in gantry axes for their high precision and load capacity. Self-lubricating plastic bearings, on the other hand, slide without any rolling elements; they offer maintenance-free operation and quiet, clean motion (no grease required), which can be advantageous in dirty or hygienic environments. For heavy-duty gantries, cross-roller bearings or roller rail guides are often employed – these use cylindrical rollers to carry larger loads with high rigidity. In all cases, the linear bearings are what ensure the gantry’s travels are smooth and repeatable, minimizing stiction and wobble as the robot moves.

• Linear Guideways and Rails: Sturdy linear guide rails (guideways) provide the framework that keeps the gantry motion accurate and stable under load. Typically made of hardened steel or aluminum, these guide rails run the length of the X, Y, and sometimes Z axes. Carriage blocks with internal bearings ride along the rails, supporting the gantry’s moving structure. Precision linear guideways deliver high rigidity and load capacity, which is critical for gantry robots that must carry tooling and payloads without deflection. For instance, profiled rail guides can handle significant moment loads and maintain alignment, ensuring the gantry’s accuracy over its full travel. The rails and carriages are designed to maintain tight tolerances, even at high speeds or after extensive use. By providing a stable, low-friction track, linear guide systems allow gantry robots to achieve the required accuracy, repeatability, and longevity in industrial service.

• Precision Drives and Actuators: To move each axis, gantry robots use linear actuation systems powered by motors. Common drive mechanisms include ball screws, rack-and-pinion systems, and timing belts, usually coupled to servo motors for precise control. Each approach has its advantages: high-precision gantry axes often use ball screw drives, in which a rotating screw and ball nut translate rotary motion into very accurate linear motion with minimal backlash. Ball screws are ideal for applications requiring fine positioning and high thrust force, though they are limited in length. For longer axes or very high-speed motion, belt drives are popular – a toothed belt driven by a motor pulley can rapidly move a carriage across long distances, though with slightly less precision and force compared to a screw. Rack-and-pinion drives are another option, providing a robust solution for large gantry systems (the motor turns a pinion gear that runs along a fixed rack). Rack drives can handle heavy loads and any length of travel by splicing racks, at the cost of some mechanical backlash. In all these cases, servo motors (or stepper motors in smaller systems) power the linear actuators, offering closed-loop control of position and speed. The drive and motor components are selected to match the gantry’s requirements for velocity, load, and accuracy – for example, a gantry doing fast palletizing may use a high-torque servo with a belt drive for speed, while a gantry for precision assembly might use a servo-driven ball screw for micrometer-level accuracy. These actuation choices let designers tailor the gantry’s performance to the application’s needs.

• Optimal Bearing Selection and Durability: The selection of bearings and motion components in a gantry robot is crucial to its success. Engineers must consider factors like load capacity, speed, rigidity, and environmental conditions when choosing components. For heavy payloads, larger profile rails or roller bearings might be needed to support the weight without flexing. High-speed motions demand bearings and guides that can handle rapid travel and acceleration (sometimes up to several meters per second) without excessive wear or heat. Rigidity is important for maintaining accuracy – components like linear bearings and guide frames should minimize bending or vibration during operation. Additionally, industrial gantry robots often operate in harsh conditions (dusty, dirty, or even wet environments on factory floors), so components with proper seals, corrosion-resistant materials, or self-lubrication features can greatly improve reliability. For example, linear bearings may incorporate wipers and seals to keep debris out, and automatic lubrication systems might be used to ensure smooth operation over long periods. By carefully selecting high-quality bearings, guide rails, and drives that suit the application, designers ensure the gantry robot will achieve the needed performance and withstand continuous use in industrial settings. PIB’s expertise in bearings and linear motion is a valuable resource here – the company offers a range of standard and custom solutions (from self-lubricating linear bushings to heavy-duty recirculating guide assemblies) and can advise on the optimal choices to support the required loads, speeds, and duty cycles of a gantry system.


In practice, a gantry robot’s axis is a combination of these elements working together: for example, a typical PIB-supplied gantry axis might consist of a hardened steel linear guide rail with recirculating ball-bearing carriages, driven by a ball screw or belt actuator and supported by pillow block bearings at each end. All these parts must function in unison to deliver precise, smooth motion. PIB’s product offerings cover these complete system needs – from the linear guides and slides to the ball screws, belts, couplings, sensors, and lubrication units – providing a one-stop source for building and maintaining high-performance gantry robots.

Common Industrial Applications of Gantry Robots

Thanks to their overhead reach, strength, and precision, gantry robots are used in a wide array of industrial applications. Some of the most common uses include:

• Material Handling (Pick and Place, Palletizing, Depalletizing): Gantry robots are frequently used to move materials and products in factories and warehouses. They excel at pick-and-place tasks, swiftly transferring parts or packages from one location to another with repeatable accuracy. In palletizing and depalletizing, a gantry robot can lift cartons, bags, or other items and stack them neatly onto pallets (or unload them), often servicing multiple pallet stations from above. The large work area and high payload capacity of gantries make them ideal for handling heavy or bulky items and arranging them in precise layouts. Many packaging lines deploy gantry systems to automate end-of-line palletizing, improving throughput and reducing manual labor.

• Assembly Line Automation: In assembly operations, gantry robots act as flexible automation platforms that can perform tasks like component placement, screwing, fastening, or transferring sub-assemblies between workstations. Their overhead design lets gantries access different points on a product without interference, which is useful in automotive or electronics assembly lines where multiple assembly stages are spread out. A gantry can travel along a production line, inserting or attaching parts at various positions with high precision. Because they can cover a large area, gantry robots are often used to tend multiple assembly stations or to assemble large products (e.g. appliance or aircraft components) that are larger than the reach of a single arm robot. The result is a coordinated, efficient assembly process with consistent quality.

• Machine Tending (CNC Machines and Metalworking): Gantry robots are commonly employed to service other machinery, such as CNC machining centers, injection molding machines, presses, or ovens. In these machine tending roles, the gantry can automatically load raw parts into a machine and unload finished parts, often servicing a row of machines with one robot. For example, a gantry robot spanning several CNC mills can pick up a blank workpiece, load it into Machine 1, then move over to unload a finished part from Machine 2, and so on. This greatly increases utilization of the machines and reduces idle time. Gantry robots are well-suited for machine tending because of their strength (able to handle metal billets or heavy molded parts) and their linear precision, which ensures parts are placed exactly in chucks or fixtures. They also improve safety by keeping human operators away from hazardous machine loading areas. In foundries, metal fabrication, and other heavy industries, gantry systems are valued for reliably handling hot, heavy, or sharp parts around equipment.

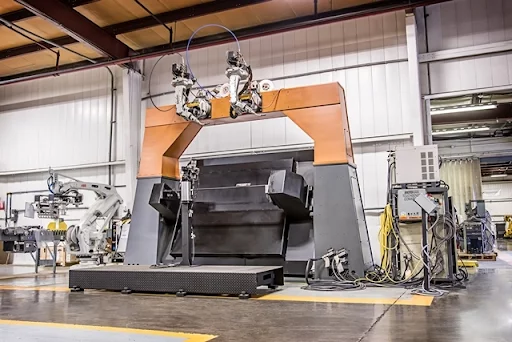

• Welding (Spot, Arc, Laser): For certain manufacturing processes, gantry robots serve as automated welding systems. They can carry welding heads (MIG/TIG torches, spot weld guns, or laser cutters) over large workpieces such as automotive frames, steel beams, or sheet metal assemblies. Unlike a stationary robotic arm with limited reach, a gantry welder can travel along the length of a large part, making continuous welds or cuts with consistent speed and accuracy. Automotive factories, for instance, sometimes use gantry robots for underbody welding or roof assembly where an overhead approach is beneficial. The rigidity of a gantry provides stable control of the welding head, resulting in high-quality weld seams. Whether it’s performing dozens of spot welds across a large panel or tracing long arc welds on a structure, a gantry robot offers the coverage and repeatability needed for demanding welding applications. Additionally, multiple welding gantries can work in parallel on the same structure from different angles, greatly speeding up production of large fabricated products.

• Packaging, Sealing, and Dispensing: Gantries play key roles in high-speed packaging and material dispensing operations. In packaging lines, gantry robots might be used for carton forming, case packing, or palletizing as mentioned, as well as tasks like applying box lids or shrink wrapping, where they move tools like glue nozzles or heat sealers over packaging. Their speed and precision ensure every package is sealed or labeled uniformly. In sealing or adhesive dispensing, a gantry can carry a dispensing head (for glue, silicone, foam, etc.) to lay down precise beads or gaskets on products moving below on a conveyor. Because the gantry can cover a wide area, it’s excellent for large-format dispensing, such as applying sealant around the perimeter of large panels or windows. Similarly, in automated painting or coating (which is a form of dispensing), an XY gantry might spray parts traveling beneath it, ensuring even coverage. The modular tooling on gantries makes it easy to switch between a suction gripper for placing items into a box and a glue head for sealing the box, for example – giving great flexibility on a packaging line.

• Quality Inspection and Testing: In quality control, gantry robots provide a stable platform for moving cameras, sensors, or test probes around a product to perform inspections with fine precision. For instance, a vision system can be mounted on a gantry to scan circuit boards or automotive parts for defects, moving in a programmed grid pattern above the item. Because gantries are so accurate and repeatable, they are even used in coordinate measuring machines (CMMs) and metrology systems to measure product dimensions against tight tolerances. An inspection gantry might travel over a part with a laser scanner or touch probe, recording measurements at numerous points. In nondestructive testing, gantry robots carry instruments for tasks like ultrasonic scanning of aerospace components or detailed laser inspection of surfaces. The advantage of a gantry is that it can sweep across large objects reliably and position inspection devices at exact coordinates, which is crucial for consistent testing. By automating inspection and testing, gantry systems help ensure every product meets quality standards without slowing down production.

• Logistics and Warehousing: Gantry robots also find use in warehouses and distribution centers as part of automated storage and retrieval systems (AS/RS). In these systems, a gantry or crane-like robot moves along aisles to store or retrieve goods on high racks. For example, a warehouse gantry might span across multiple aisles on rails, picking up tote bins or pallets and delivering them to picking stations. Their overhead operation and long travel distance capabilities allow gantry robots to reach inventory locations up to tens of meters away and several levels high. They can handle heavy pallets and operate in environments like cold storage where human labor is challenging. By leveraging gantry-based automation, facilities can achieve much faster order picking and inventory turnover. Some modern vertical farming and pharmaceutical storage systems even use Cartesian gantry robots to shuttle products in a dense grid storage, maximizing space utilization. Overall, in the logistics realm, gantry robots contribute to streamlined, high-density warehousing and quick material transport, which reduces reliance on manual forklifts and improves safety and throughput.


PIB’s Bearing & Motion Solutions for Gantry Robots

As a long-standing supplier in the automation field, Pacific International Bearing Sales (PIB) offers a comprehensive range of products and support services ideally suited for gantry robot applications. Whether you are building a new gantry system or maintaining an existing one, PIB provides the critical components and expertise to ensure performance and reliability:

• PIB maintains a wide inventory of bearings and linear motion parts needed for gantry robots. This includes linear ball bearings and bushings, profile rail guides and carriage blocks, ground ball screws and lead screws, precision roller bearings, timing belt pulley assemblies, linear actuators, pillow blocks, couplings, and more. By offering all the essential bearings, bearing assemblies, and guide systems under one roof, PIB makes it convenient to source everything required to construct or repair a gantry robot’s axes. Importantly, PIB stocks both metric and inch sizes and various load ratings, so customers can find the right components to fit their gantry design. As a stocking distributor, PIB can often deliver parts quickly from on-hand inventory, minimizing downtime for your project or production line.

• PIB partners with the industry’s top manufacturers of bearings and linear motion technology. PIB is an authorized distributor for renowned brands such as INA/Schaeffler, IKO, Ewellix (SKF), NB (Nippon Bearing), THK, NSK, and many others known for engineering excellence. Through these partnerships, PIB offers genuine, high-grade products – from INA profile rail guides and carriage assemblies to IKO crossed roller slides and NB linear actuators – ensuring that customers get proven solutions for their gantry systems. These relationships also enable PIB to provide in-depth product knowledge and access to the latest innovations (like specialized coatings, built-in sensors, or lubrication systems in bearings) that can enhance gantry robot performance.

• One of PIB’s core strengths is its engineering support services. Building or integrating a gantry robot can be complex, and PIB’s team of experienced engineers and Certified Bearing Specialists (CBS) is available to assist customers in selecting and optimizing components for their specific application. Whether it’s calculating the load-life of a recirculating linear guide, choosing between a ball screw or belt drive, or designing a custom bearing housing, PIB provides expert guidance to ensure the motion system is properly engineered. For unique requirements, PIB can also work on custom-designed solutions – for example, sourcing special-dimension bearings, arranging for custom preload on linear guides, or configuring complete linear actuator assemblies tailored to a project. This collaborative approach helps customers achieve the best possible results, balancing performance, cost, and longevity for their gantry robots.

• In the fast-paced manufacturing world, having the right parts at the right time is critical. PIB leverages decades of distribution experience to offer reliable, customer-centric logistics services. The company provides just-in-time (JIT) delivery programs, ensuring that gantry components arrive exactly when needed for production runs or maintenance, thereby reducing the need for customers to hold large inventories. PIB also offers volume pricing and blanket order arrangements for OEMs, which helps secure supply for high-volume gantry builds at competitive costs. With global shipping capabilities and centrally located warehouses, PIB can ship products same-day to locations around the world. This strong supply chain support means less downtime and smoother operations for customers implementing gantry robot systems.

• Above all, PIB prides itself on an unwavering focus on quality, reliability, and customer satisfaction. With over four decades in the bearing industry, PIB has honed strict quality control processes to ensure every product meets specifications and every order is handled with care. The company’s core values emphasize quality first and a customer-focused approach. Clients can trust that the bearings and components from PIB will perform as expected in critical gantry applications, and any concerns will be addressed promptly by a dedicated support team. This commitment has made Pacific International Bearing a go-to resource for engineers and procurement teams seeking dependable automation components and partner-level service.


Explore PIB’s online catalog of bearings and linear motion solutions or contact our specialists – [email protected]. Contact PIB Sales today, and let us help you achieve the best results for your automation applications! Visit us at www.pibsales.com.
