3203-BD-XL-C3

3203-BD-XL-C3

Manufacturer
FAG
Description
17mm X 40mm X 17.5mm

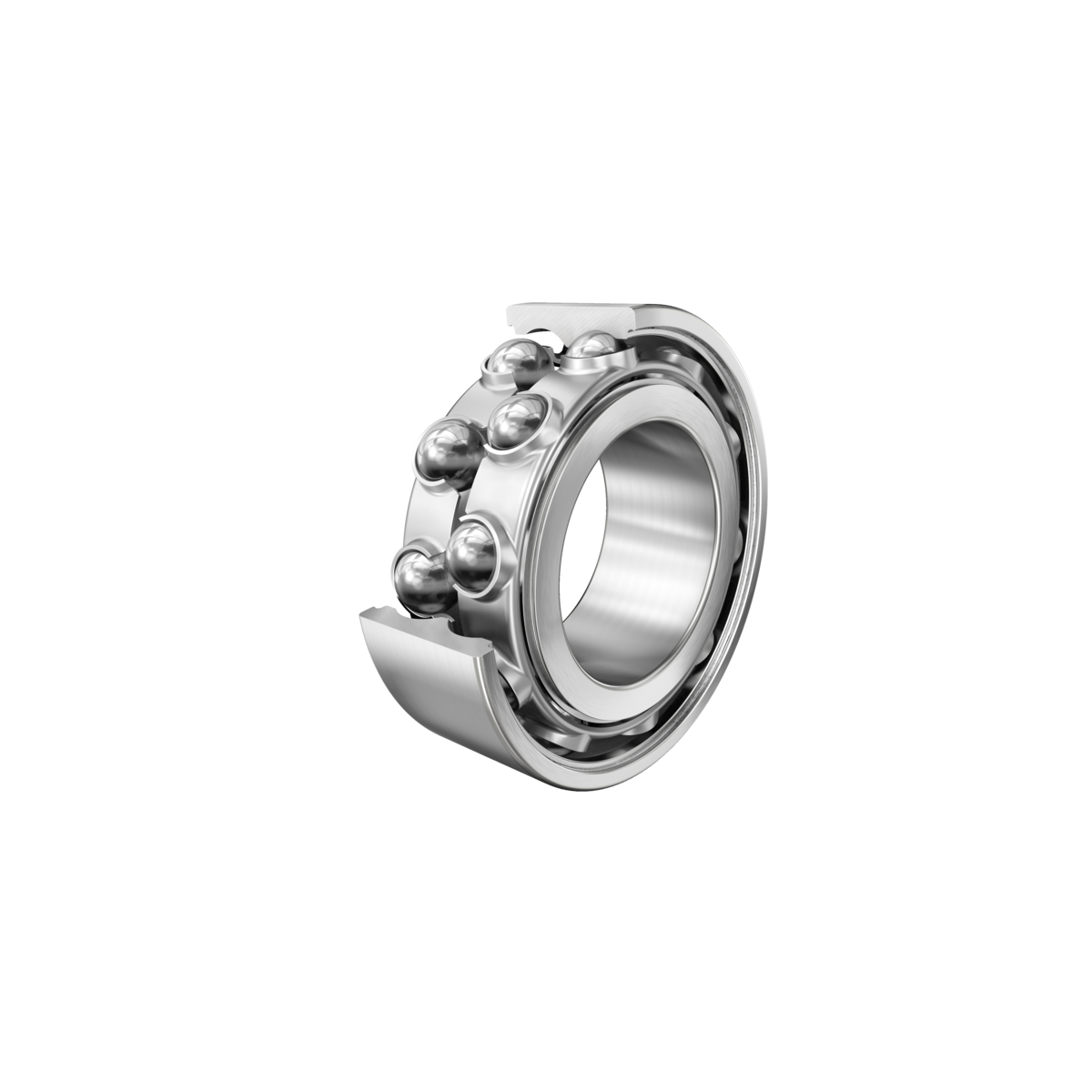

Double Row Angular Contact
Angular Contact Ball Bearing
Double Row / Steel Cage
$42.80 / each
Get Volume Pricing

Special pricing for OEMs and high volume users.

Request Quote
in list
Please check the entered value
Quote list updated
Still have other questions?

Please contact our sales managers or request a call they are ready to solve any of your questions.

(800) 228-8895 Request a call

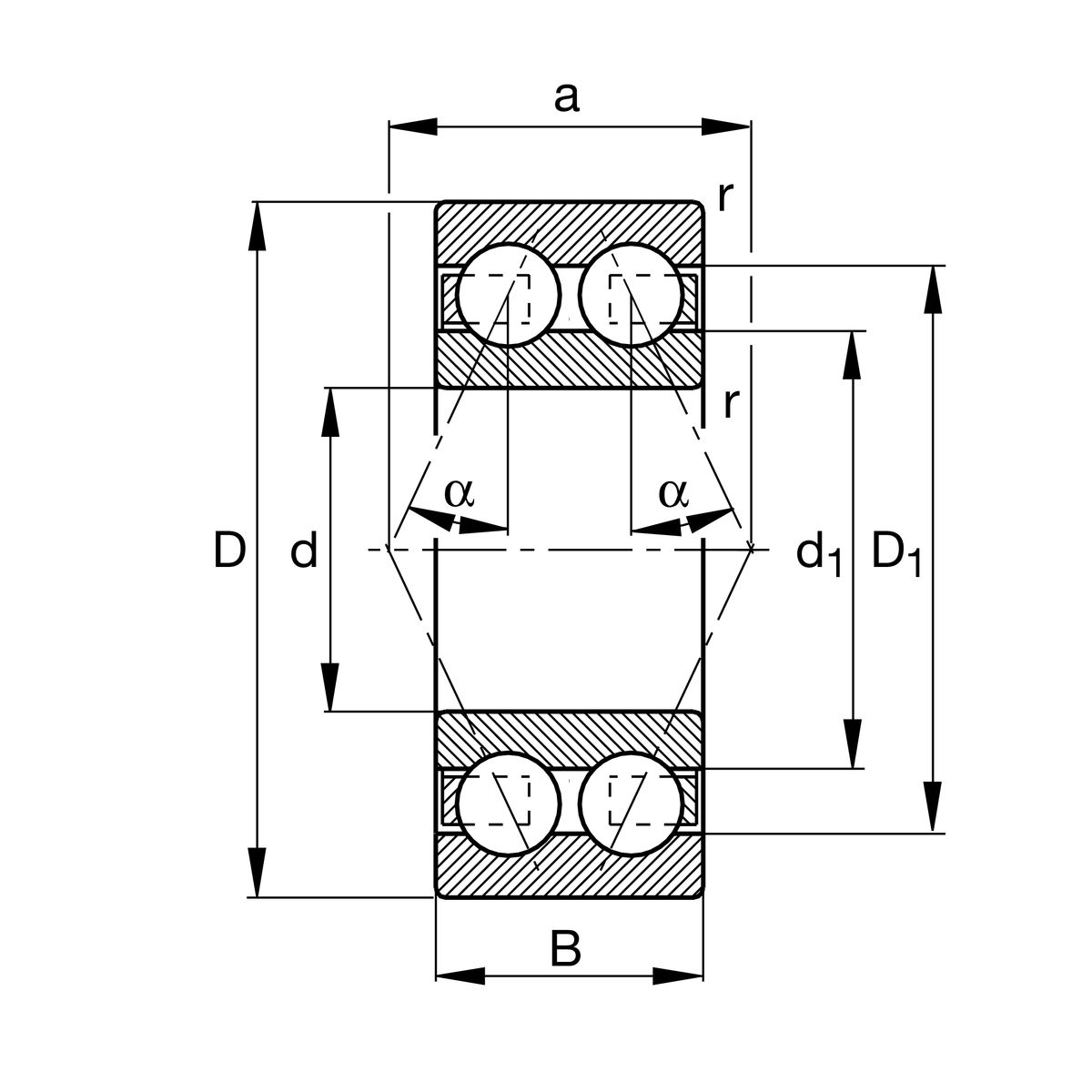

Specifications

Bore Diameter (d)
17 mm
Outside Diameter (D)
40 mm
Width (B)
17.5 mm
Contact Angle
30° contact angle
Brand
FAG
Ring Material
Chrome Steel 100Cr6
Ball Material
52100 Chrome Steel
Dynamic Load(Cr)
3484.54 lbs
Static Load(C0r)
2135.68 lbs
Closure
Open
