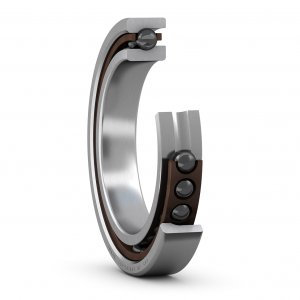

7009 ACEGA/HCP4AL

Manufacturer
SKF
Description
45mm X 75mm X 16mm
Super Precision
Angular Contact Bearing
25° High-speed E Design
Single - Universal Matched
Get Volume Pricing

Special pricing for OEMs and high volume users.

Request Quote
in list
Please check the entered value
Quote list updated
Still have other questions?

Please contact our sales managers or request a call they are ready to solve any of your questions.

(800) 228-8895 Request a call

Specifications

Bore Diameter (d)
45 mm
Outside Diameter (D)
75 mm
Width (B)
16 mm
Contact Angle
25° high-speed E design
Bearing Arrangement
Single - Universal Matched
Brand
SKF
Precision
P4A
Ring Material
Chrome Steel 100Cr6
Ball Material
Ceramic Si3N4
Preload
Light Preload
Dynamic Load(Cr)
2720 lbs
Static Load(C0r)
1832 lbs
