7324-B-XL-MP-UB

7324-B-XL-MP-UB

Manufacturer
FAG
Description
120mm X 260mm X 55mm

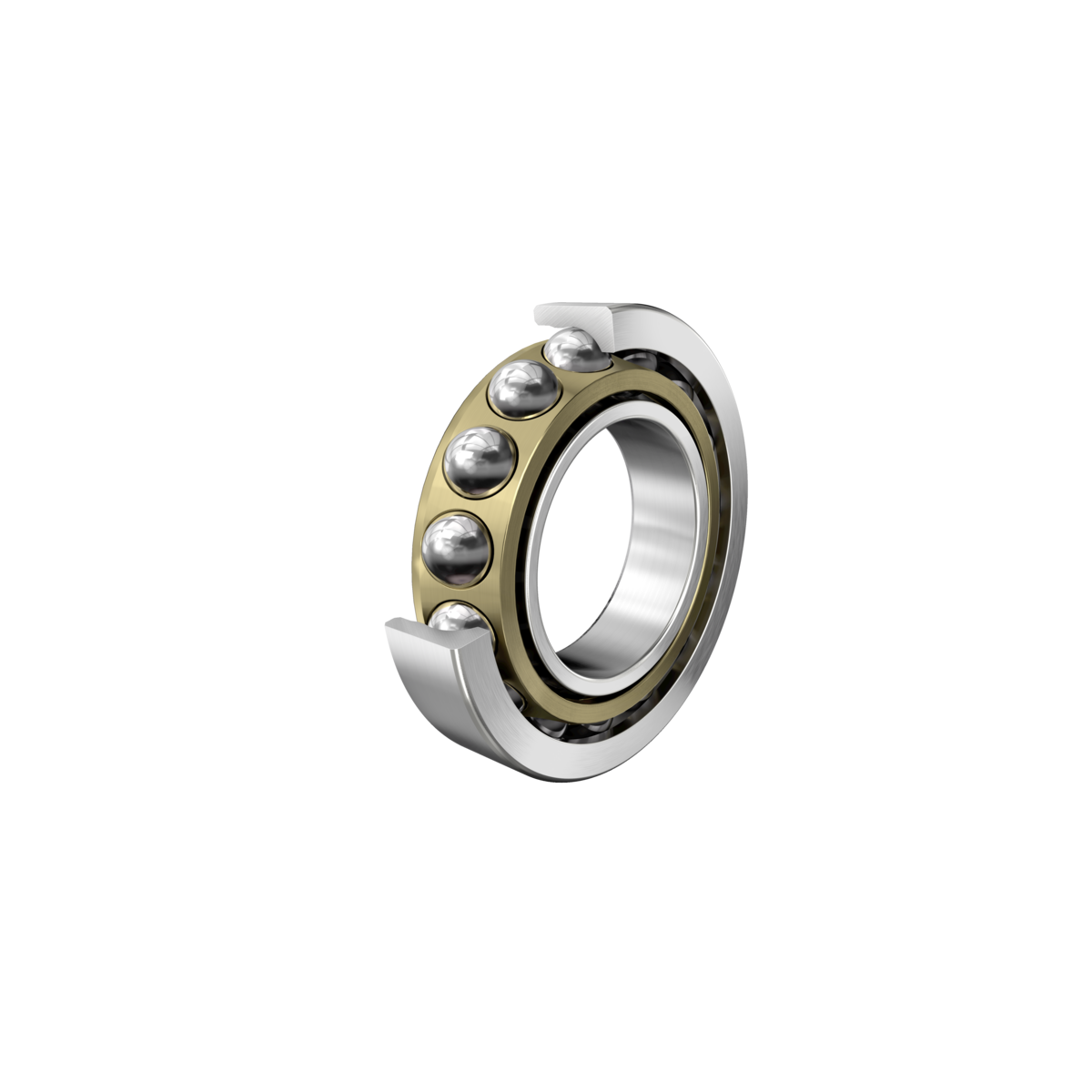

Angular Contact Ball Bearing
Solid Brass Cage
Single - Universal Matched
$1883.87 / each
Get Volume Pricing

Special pricing for OEMs and high volume users.

Request Quote
in list
Please check the entered value
Quote list updated
Still have other questions?

Please contact our sales managers or request a call they are ready to solve any of your questions.

(800) 228-8895 Request a call

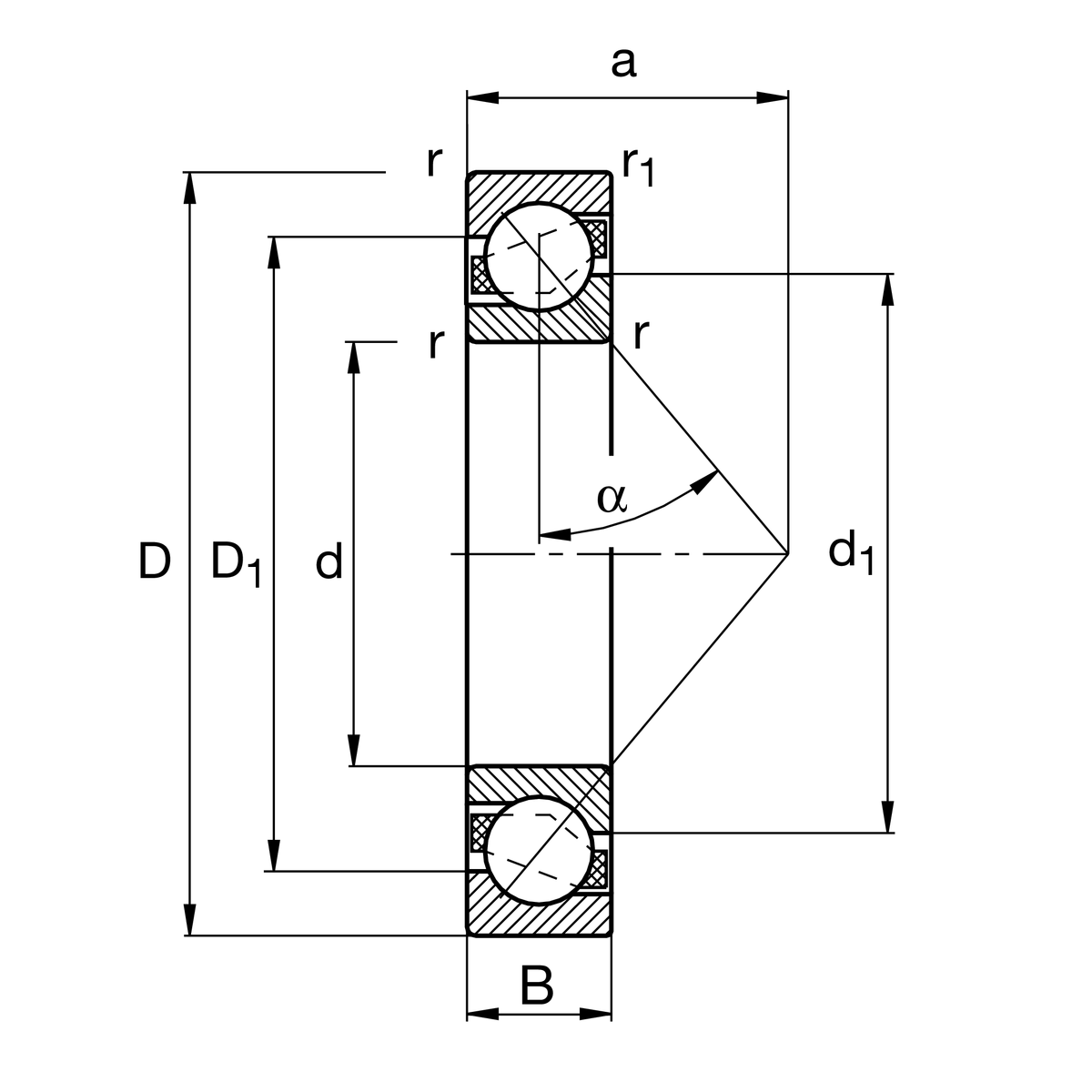

Specifications

Bore Diameter (d)
120 mm
Outside Diameter (D)
260 mm
Width (B)
55 mm
Contact Angle
40° contact angle
Bearing Arrangement
Single - Universal Matched
Brand
FAG
Ring Material
Single - Universal Matched
Ball Material
Chrome Steel 100Cr6
Dynamic Load(Cr)
61822.46 lbs
Static Load(C0r)
64070.55 lbs
