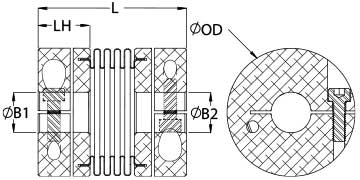

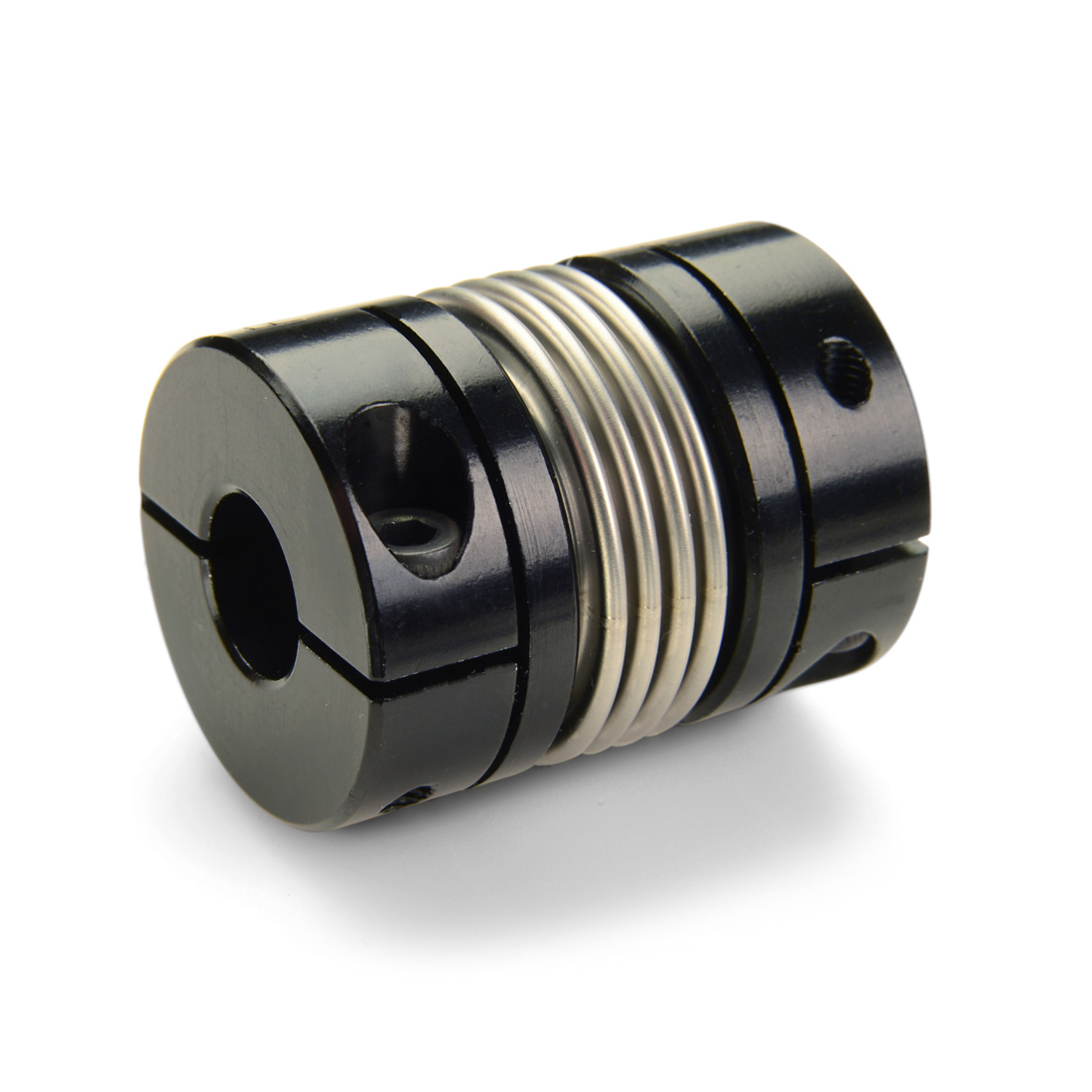

BC10-3/16″-4MM-A
Manufacturer
Ruland
Description
3/16" X 4mm Bores
0.590" (15.0mm), Od, 1.076" (27.3mm) Length
Bellows Coupling
High Stiffness
Aluminum
0.590" (15.0mm), Od, 1.076" (27.3mm) Length
Bellows Coupling
High Stiffness
Aluminum
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Screw Finish
Black Oxide
Bore (B1)
0.1875 in
Bore (B2)
4 mm
Keyway
No
B1 Max Shaft Penetration
0.517 in (13.1 mm)
B2 Max Shaft Penetration
0.517 in (13.1 mm)
Seating Torque
0.6 Nm
Length (L)
1.076 in (27.3 mm)
Bore Tolerance
+0.001 in / -0.000 in (+0.03 mm / -0.00 mm)
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Number of Screws
2 ea
O.D. (D)
0.590 in (15.0 mm)
Material
Aluminum
Screw Material
Alloy Steel
Dynamic Torque Reversing
5.5 lb-in (0.62 Nm)
Maximum Speed
10000 RPM
Shaft Tolerance
+0.0000 in / -0.0005 in +0.000 mm / -0.013 mm
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163018
Cap Screw
M2
Dynamic Torque Non-Reversing
11 lb-in (1.25 Nm)
Hex Wrench Size
1.5 mm
Torsional Stiffness
72 lb-in/Deg (8 Nm/Deg)
Static Torque
22 lb-in (2.5 Nm)
Angular Misalignment
1.5 deg
Parallel Misalignment
0.004 in (0.10 mm)
Axial Motion
0.008 in (0.20 mm)
Bellows Attachment Method
Epoxy
Length Tolerance
+/- 0.030 in (0.76 mm)
Temperature
-40°F to 200°F (-40°C to 93°C)
Product Group
Bellows Coupling Standard Length
Recommended Hex Key
Metric Hex Keys
