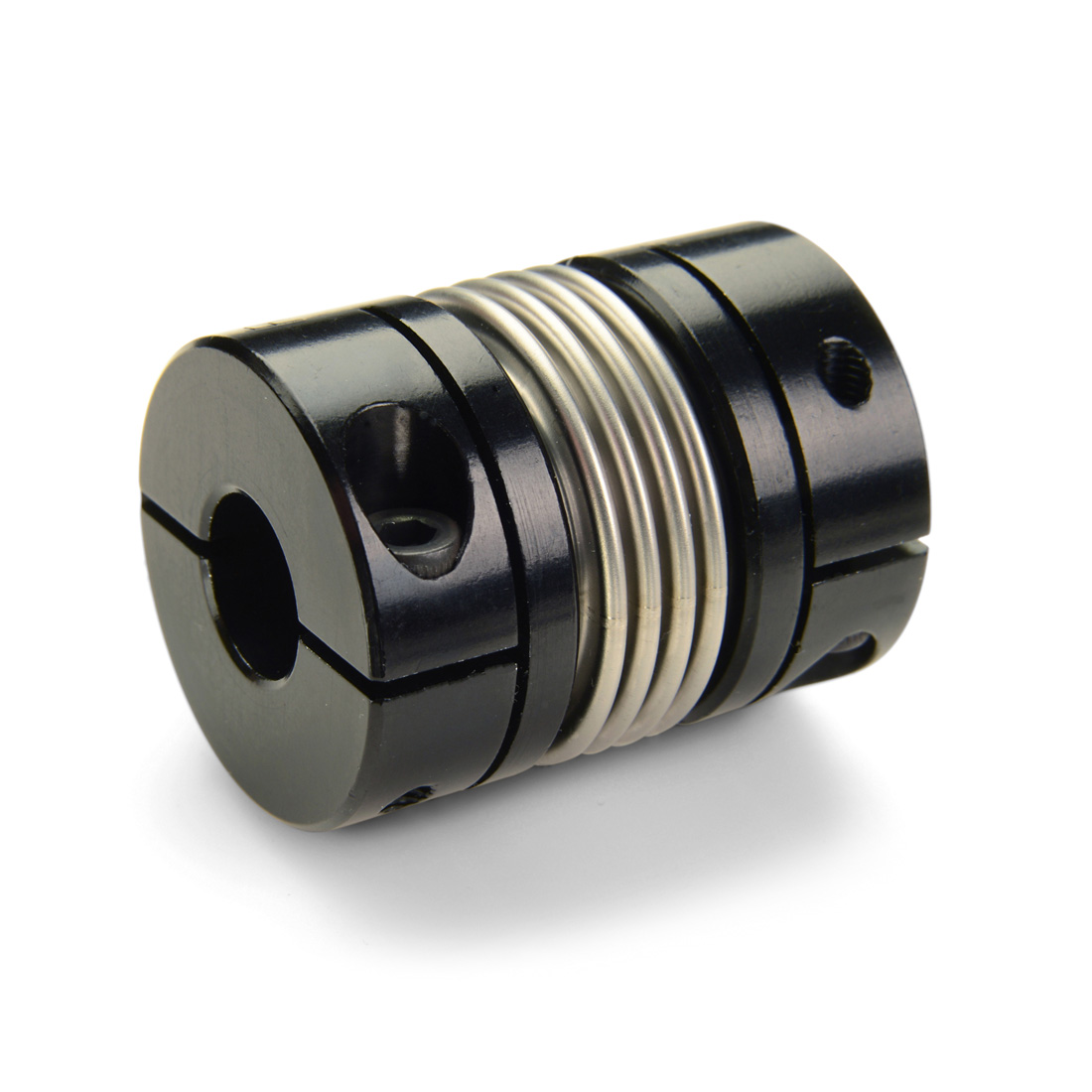

BC26-1/2″-12MM-A
Manufacturer
Ruland
Description
1/2" X 12mm Bores
1.625" (41.3mm), Od, 2.035" (51.7mm) Length
Bellows Coupling
High Stiffness
Aluminum
1.625" (41.3mm), Od, 2.035" (51.7mm) Length
Bellows Coupling
High Stiffness
Aluminum
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Torsional Stiffness
550 lb-in/Deg (63 Nm/Deg)
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163018
Cap Screw
M4
Dynamic Torque Non-Reversing
125 lb-in (14.00 Nm)
Hex Wrench Size
3.0 mm
Static Torque
250 lb-in (28.0 Nm)
Maximum Speed
10000 RPM
Angular Misalignment
2.0 deg
Parallel Misalignment
0.010 in (0.25 mm)
Axial Motion
0.020 in (0.51 mm)
Bellows Attachment Method
Epoxy
Length Tolerance
+/- 0.030 in (0.76 mm)
Temperature
-40°F to 200°F (-40°C to 93°C)
Product Group
Bellows Coupling Standard Length
Shaft Tolerance
+0.0000 in / -0.0005 in +0.000 mm / -0.013 mm
Dynamic Torque Reversing
62.5 lb-in (7.00 Nm)
Screw Finish
Black Oxide
Bore Tolerance
+0.001 in / -0.000 in (+0.03 mm / -0.00 mm)

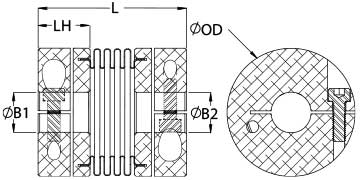

Bore (B1)
0.5000 in
Bore (B2)
12 mm
Keyway
No
B1 Max Shaft Penetration
0.946 in (24.0 mm)
B2 Max Shaft Penetration
0.946 in (24.0 mm)
Seating Torque
4.6 Nm
Length (L)
2.035 in (51.7 mm)
ISO 9001:2015
Certified
Screw Material
Alloy Steel
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Number of Screws
2 ea
O.D. (D)
1.625 in (41.3 mm)
Material
Aluminum
Recommended Hex Key
Metric Hex Keys
