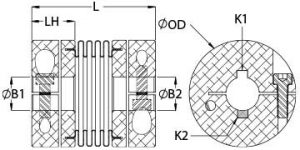

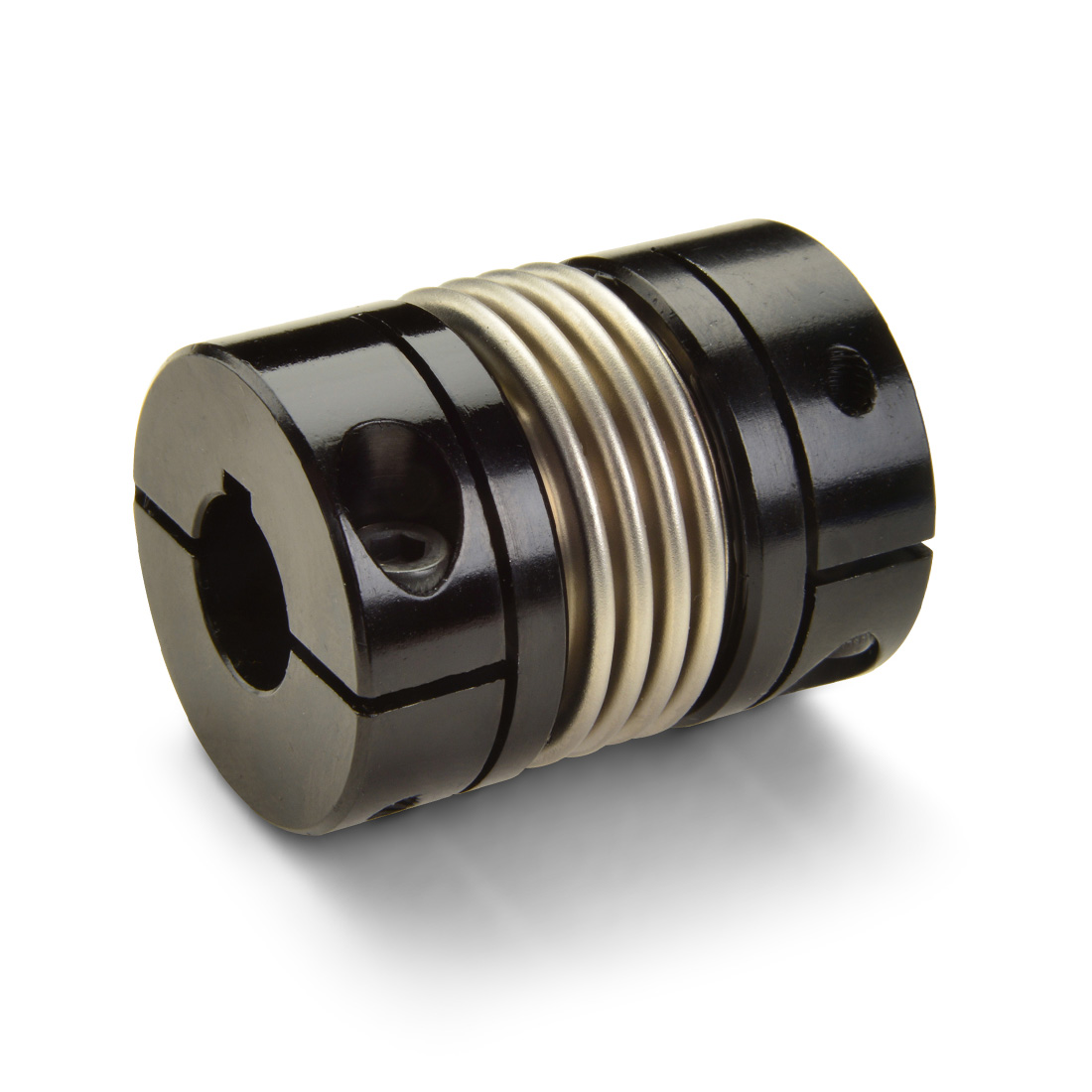

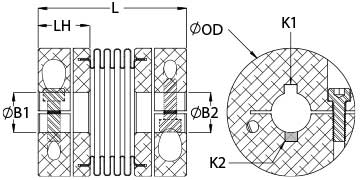

BCK26-14MM-1/2″-A
Manufacturer
Ruland
Description
14mm X 1/2" Bores
1.625" (41.3mm), Od, 2.035" (51.7mm) Length
Bellows Coupling With Keyways
High Stiffness
Aluminum
1.625" (41.3mm), Od, 2.035" (51.7mm) Length
Bellows Coupling With Keyways
High Stiffness
Aluminum
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Seating Torque
4.6 Nm
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163018
Cap Screw
M4
Hex Wrench Size
3.0 mm
Dynamic Torque Non-Reversing
125 lb-in (14.00 Nm)
Dynamic Torque Reversing
62.5 lb-in (7.00 Nm)
Angular Misalignment
2.0 deg
Torsional Stiffness
550 lb-in/Deg (63 Nm/Deg)
Parallel Misalignment
0.010 in (0.25 mm)
Axial Motion
0.020 in (0.51 mm)
Bellows Attachment Method
Epoxy
Length Tolerance
+/- 0.030 in (0.76 mm)
Maximum Speed
10000 RPM
Temperature
-40°F to 200°F (-40°C to 93°C)
Product Group
Bellows Coupling Standard Length
Shaft Tolerance
+0.0000 in / -0.0005 in +0.000 mm / -0.013 mm
Static Torque
250 lb-in (28.0 Nm)
Number of Screws
2 ea
Screw Finish
Black Oxide
Bore (B2)
0.5000 in
Keyway
Yes
Keyway (K1)
5 mm
Keyway (K2)
1/8 in
B2 Max Shaft Penetration
0.946 in (24.0 mm)
B1 Max Shaft Penetration
0.946 in (24.0 mm)
Bore Tolerance
+0.001 in / -0.000 in (+0.03 mm / -0.00 mm)
Screw Material
Alloy Steel
Length (L)
2.035 in (51.7 mm)
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
O.D. (D)
1.625 in (41.3 mm)
Material
Aluminum
Bore (B1)
14 mm
Recommended Hex Key
Metric Hex Keys
