BCK32-12-8-A
Manufacturer
Ruland
Description
3/4" X 1/2" Bores
2.000" Od, 2.413" Length

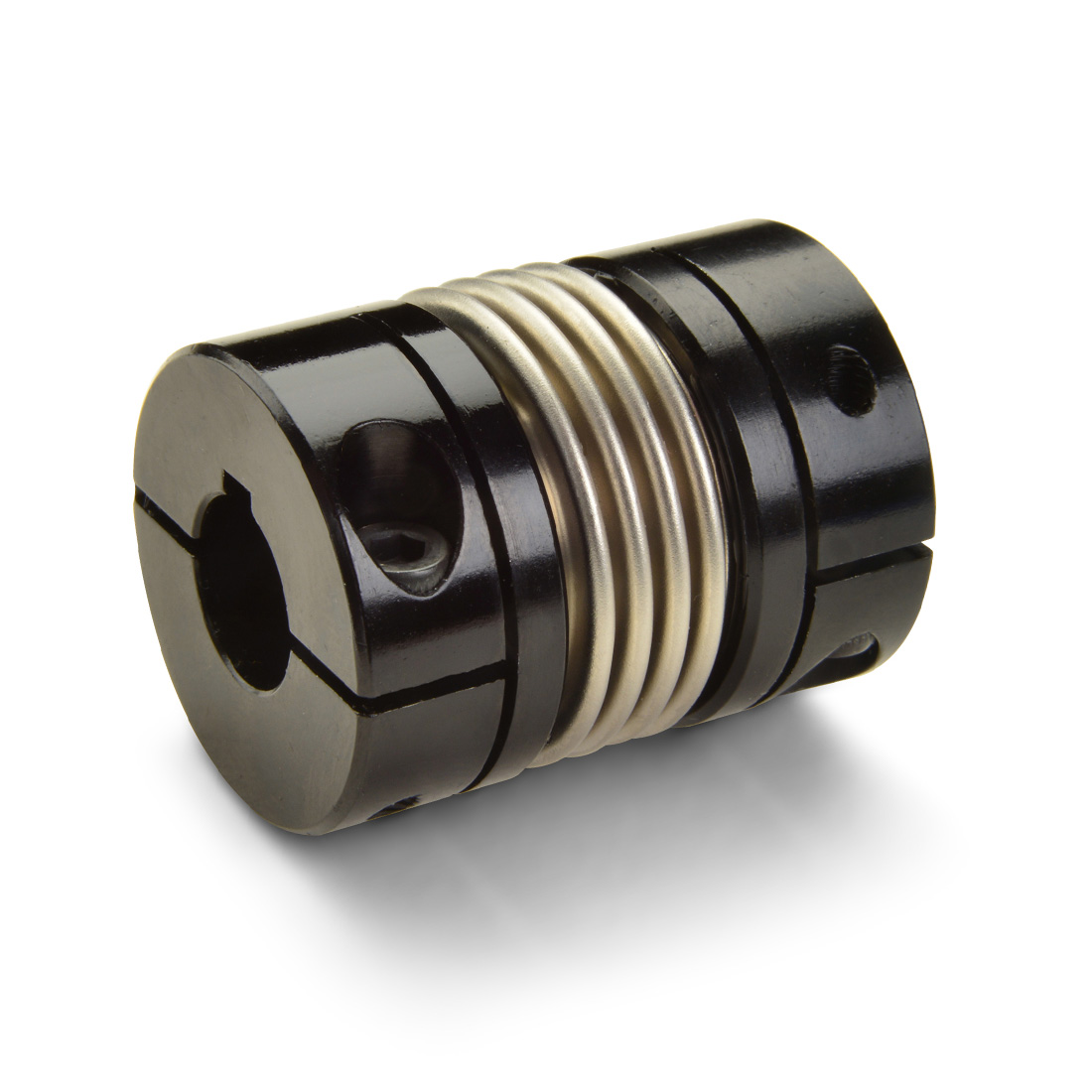

Bellows Coupling With Keyways
High Stiffness
Aluminum
2.000" Od, 2.413" Length
Bellows Coupling With Keyways
High Stiffness
Aluminum
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Static Torque
400 lb-in
Shaft Tolerance
+0.0000 in / -0.0005 in
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163018
Cap Screw
M5
Hex Wrench Size
4.0 mm
Dynamic Torque Non-Reversing
200 lb-in
Torsional Stiffness
950 lb-in/Deg
Dynamic Torque Reversing
100 lb-in
Angular Misalignment
2.0 deg
Parallel Misalignment
0.010 in
Axial Motion
0.020 in
Bellows Attachment Method
Epoxy
Length Tolerance
+/- 0.030 in
Maximum Speed
10000 RPM
Temperature
-40°F to 200°F (-40°C to 93°C)
Product Group
Bellows Coupling Standard Length
Seating Torque
9.5 Nm

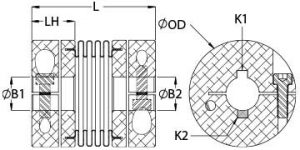

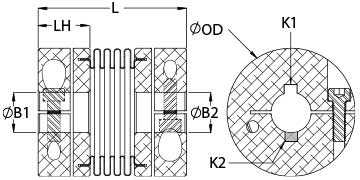

Length (L)
2.413 in (61.3 mm)
Screw Material
Alloy Steel
Bore (B1)
0.7500 in
Bore (B2)
0.5000 in
Keyway
Yes
Keyway (K1)
3/16 in
Keyway (K2)
1/8 in
B2 Max Shaft Penetration
1.099 in
B1 Max Shaft Penetration
1.099 in
Bore Tolerance
+0.001 in / -0.000 in
Number of Screws
2 ea
Screw Finish
Black Oxide
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
O.D. (D)
2.000 in (50.8 mm)
Material
Aluminum
Recommended Hex Key
Metric Hex Keys
