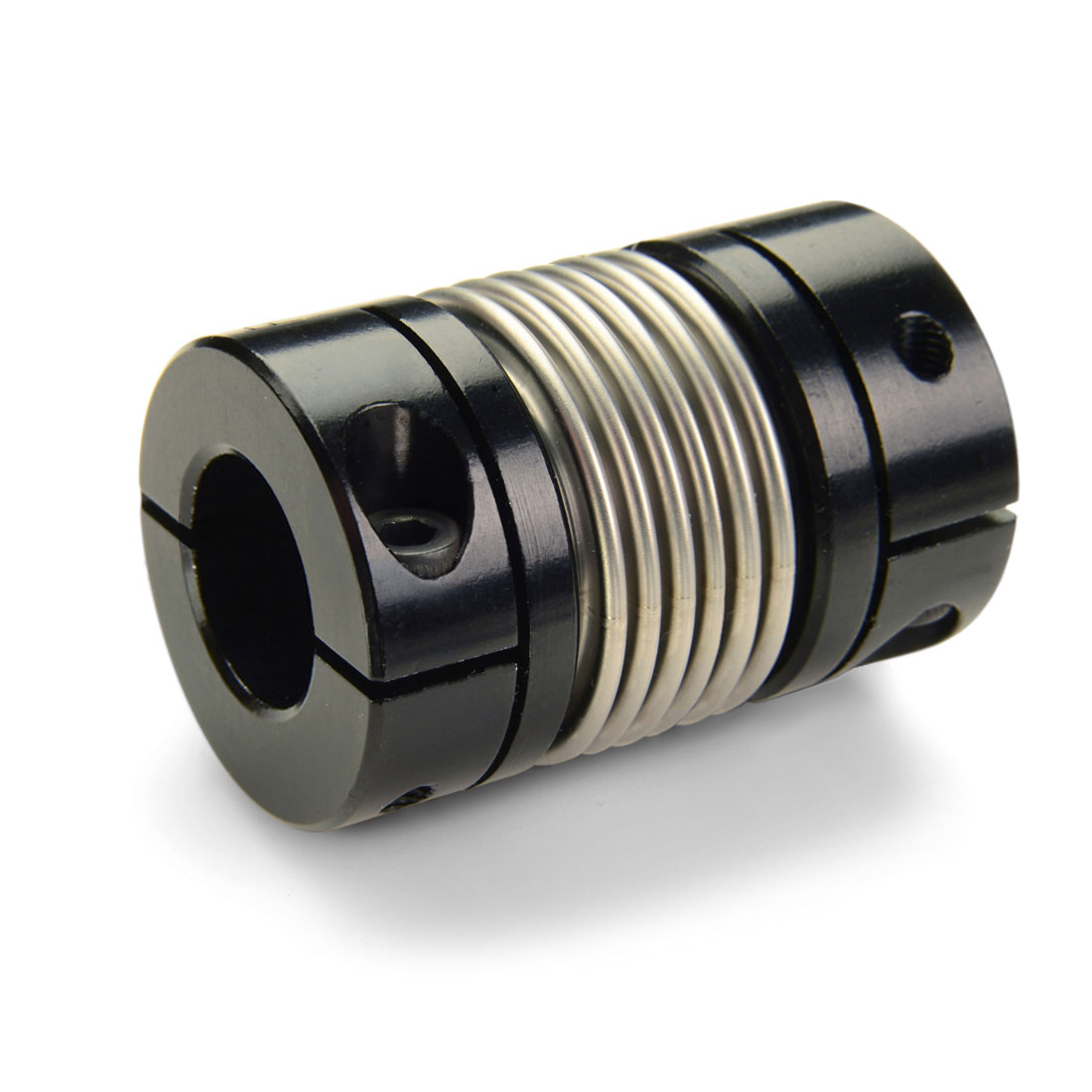

BCL12-3/16″-4MM-A
Manufacturer
Ruland
Description
3/16" X 4mm Bores
0.750" (19.1mm), Od, 1.355" (34.4 Mm) Length
Bellows Coupling
Increased Misalignment
Aluminum
0.750" (19.1mm), Od, 1.355" (34.4 Mm) Length
Bellows Coupling
Increased Misalignment
Aluminum
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications

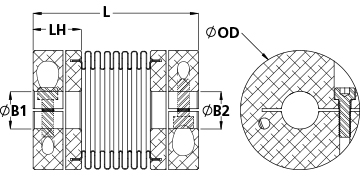

Brand
Ruland
Length (L)
1.355 in (34.4 mm)
O.D. (D)
0.750 in (19.1 mm)
Material
Aluminum
Bore (B1)
0.1875 in
Bore (B2)
4 mm
Keyway
No
B1 Max Shaft Penetration
0.570 in (14.5 mm)
B2 Max Shaft Penetration
0.570 in (14.5 mm)
Bore Tolerance
+0.001 in / -0.000 in (+0.03 mm / -0.00 mm)
Screw Material
Alloy Steel
Screw Finish
Black Oxide
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Number of Screws
2 ea
Seating Torque
1.21 Nm
Hex Wrench Size
2.0 mm
Maximum Speed
10000 RPM
Temperature
-40°F to 200°F (-40°C to 93°C)
Product Group
Bellows Coupling Standard Length
Shaft Tolerance
+0.0000 in / -0.0005 in +0.000 mm / -0.013 mm
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163018
Cap Screw
M2.5
Static Torque
40 lb-in (4.5 Nm)
Dynamic Torque Non-Reversing
20 lb-in (2.25 Nm)
Dynamic Torque Reversing
10 lb-in (1.13 Nm)
Torsional Stiffness
87 lb-in/Deg (9.8 Nm/Deg)
Angular Misalignment
3.0 deg
Parallel Misalignment
0.008 in (0.20 mm)
Axial Motion
0.020 in (0.51 mm)
Bellows Attachment Method
Epoxy
Length Tolerance
+/- 0.030 in (0.76 mm)
