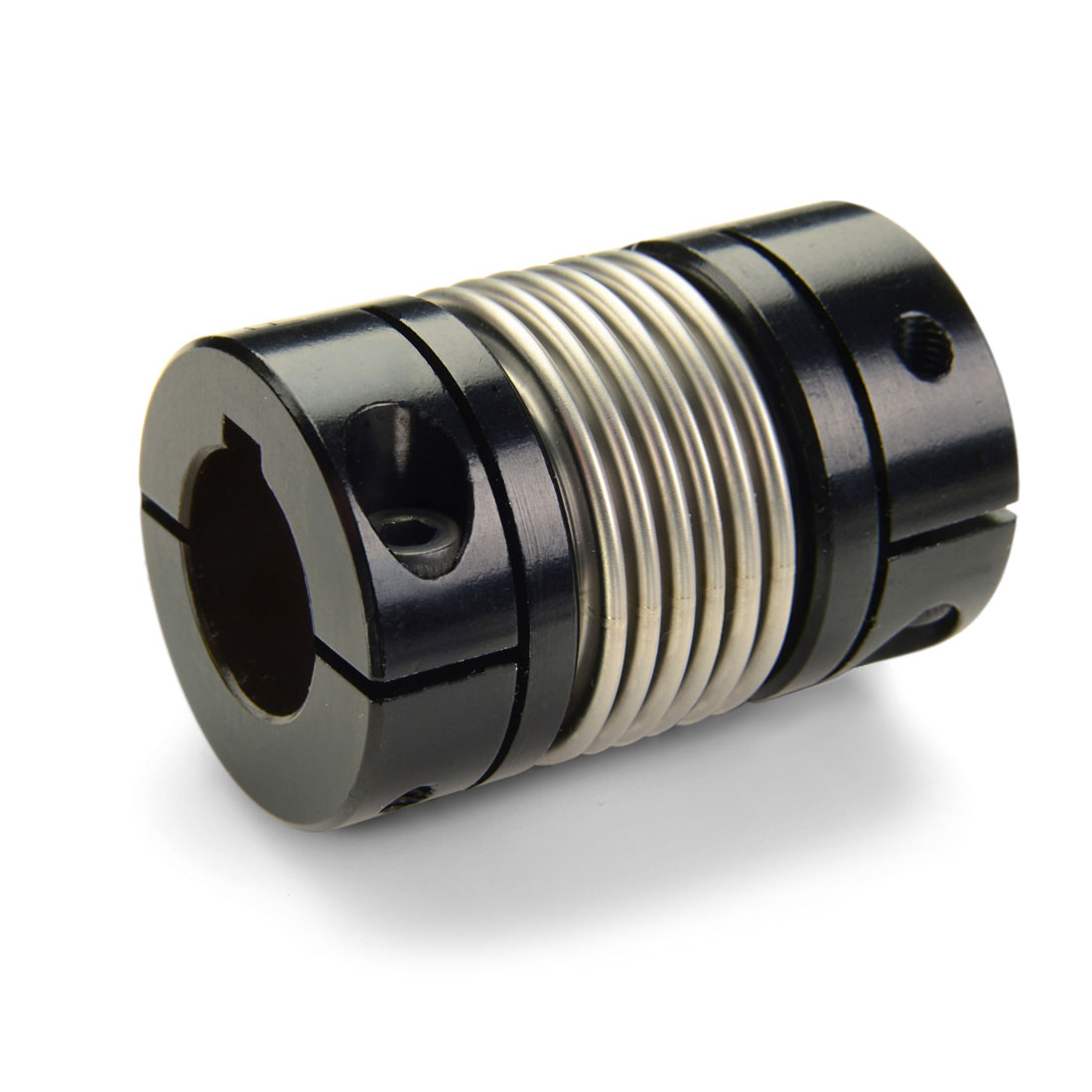

BCLK26-12-12-A
Manufacturer
Ruland
Description
3/4" X 3/4" Bores
1.625", Od, 2.316" Length
Bellows Coupling With Keyways
Increased Misalignment
Aluminum
1.625", Od, 2.316" Length
Bellows Coupling With Keyways
Increased Misalignment
Aluminum
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Seating Torque
4.6 Nm
Maximum Speed
10000 RPM
Temperature
-40°F to 200°F (-40°C to 93°C)
Product Group
Bellows Coupling Standard Length
Shaft Tolerance
+0.0000 in / -0.0005 in
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163018
Hex Wrench Size
3.0 mm
Cap Screw
M4
Dynamic Torque Non-Reversing
125 lb-in
Dynamic Torque Reversing
62.5 lb-in
Torsional Stiffness
350 lb-in/Deg
Angular Misalignment
3.0 deg
Parallel Misalignment
0.015 in
Axial Motion
0.030 in
Bellows Attachment Method
Epoxy
Static Torque
250 lb-in
Number of Screws
2 ea
B2 Max Shaft Penetration
0.946 in
Tariff Code
8483.60.8000

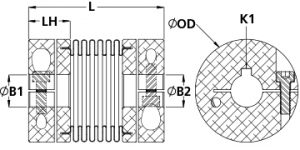

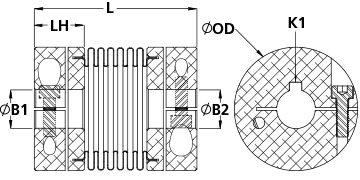

O.D. (D)
1.625 in (41.3 mm)
Material
Aluminum
Bore (B1)
0.7500 in
Bore (B2)
0.7500 in
Keyway
Yes
Keyway (K1)
3/16 in
Keyway (K2)
3/16 in
Length (L)
2.316 in (58.8 mm)
B1 Max Shaft Penetration
0.946 in
Bore Tolerance
+0.001 in / -0.000 in
Screw Material
Alloy Steel
Screw Finish
Black Oxide
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Length Tolerance
+/- 0.030 in
