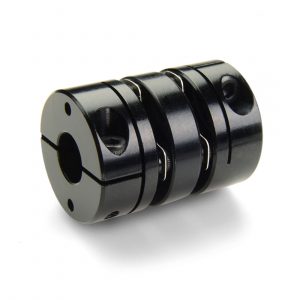

DCD44-16-14-A
Manufacturer
Ruland
Description
1.0000" X X 0.8750" Bores
2.750" Od, And 3.531" Length
Clamp Double Disc Coupling
Accommodates All Types Of Misalignment
Anodized Aluminum Hubs, Stainless Steel Disc Springs, And A Center Spacer
2.750" Od, And 3.531" Length
Clamp Double Disc Coupling
Accommodates All Types Of Misalignment
Anodized Aluminum Hubs, Stainless Steel Disc Springs, And A Center Spacer
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Static Torque
850 lb-in
Maximum Speed
10000 RPM
Temperature
-40°F to 200°F (-40°C to 93°C)
Country of Origin
USA
Shaft Tolerance
+0.0000 in / -0.0005 in
Balanced Design
Yes
UNSPC
31163008
Dynamic Torque Non-Reversing
425 in-lbs
Seating Torque
39 Nm
Dynamic Torque Reversing
212.5 lb-in
Torsional Stiffness
1600 lb-in/Deg
Angular Misalignment
2.0 deg
Parallel Misalignment
0.012 in
Axial Motion
0.030 in
Recommended Hex Key
Metric Hex Keys
B1 Min Shaft Penetration
0.750 in
Hex Wrench Size
6.0 mm
Number of Screws
2 ea

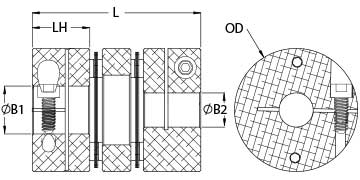

Length (L)
3.531 in (89.7 mm)
B2 Max Shaft Penetration
1.650 in
Note
Stainless steel hubs are available upon request.
O.D. (D)
2.750 in (69.9 mm)
Material
Aluminum
Bore (B1)
1.0000 in
Bore (B2)
0.8750 in
Keyway
No
B1 Max Shaft Penetration
1.650 in
Bore Tolerance
+0.001 in / -0.000 in
Tariff Code
8483.60.8000
Screw Material
Alloy Steel
Screw Finish
Black Oxide
Forged Clamp Screw
M8
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
B2 Min Shaft Penetration
0.750 in
