DCDE10-2-2-A
Manufacturer
Ruland
Description
0.1250" X 0.1250" Bores
0.590" Od, And 0.937" Length

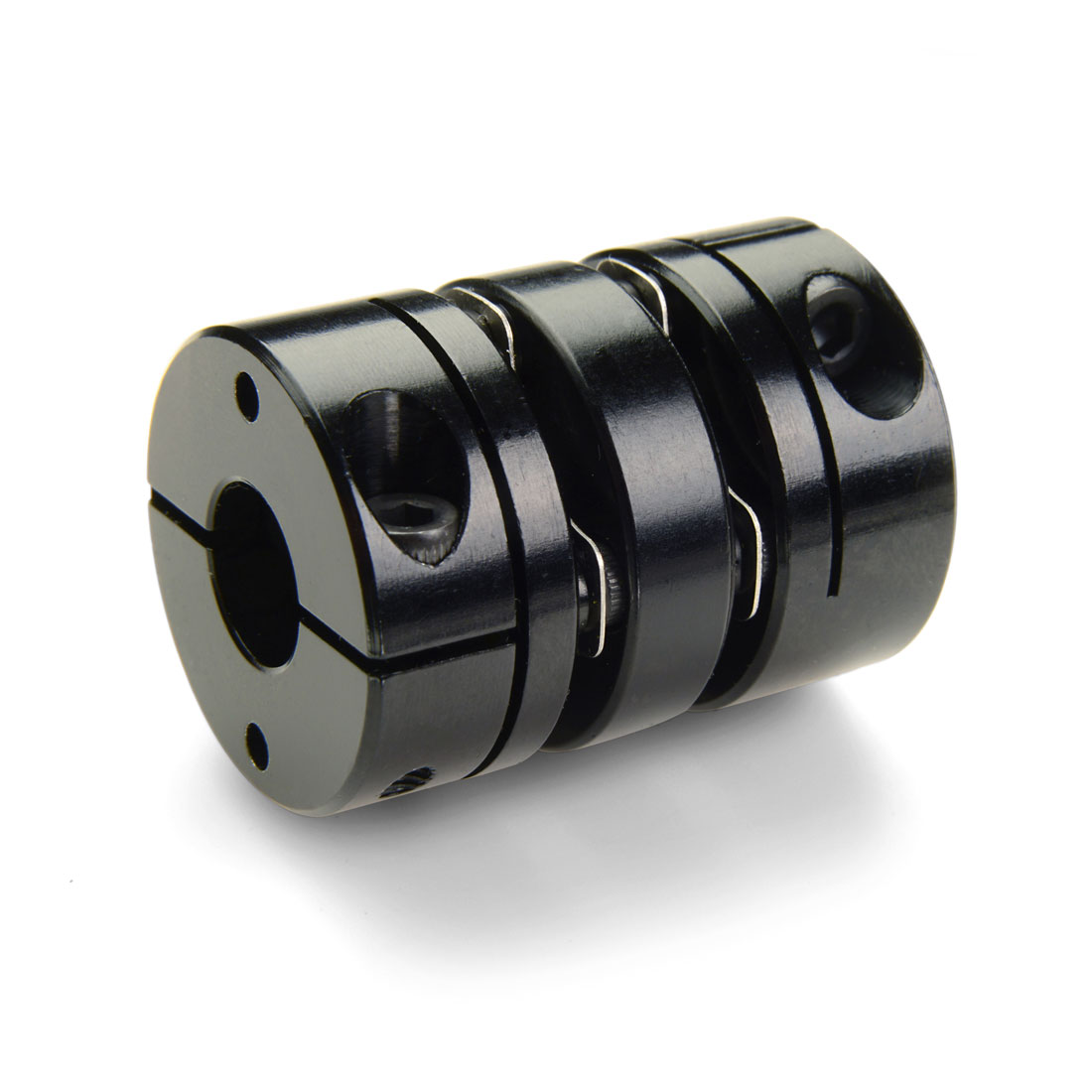

Double Disc Coupling
Accommodates All Types Of Misalignment
Anodized Aluminum Hubs, Stainless Steel Disc Springs, And An Acetal Center Spacer
0.590" Od, And 0.937" Length
Double Disc Coupling
Accommodates All Types Of Misalignment
Anodized Aluminum Hubs, Stainless Steel Disc Springs, And An Acetal Center Spacer
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Conflict Minerals
Compliant
O.D. (D)
0.590 in (15.0 mm)
Material
Aluminum
Bore (B1)
0.1250 in
Bore (B2)
0.1250 in
Keyway
No
B2 Max Shaft Penetration
0.458 in
Bore Tolerance
+0.001 in / -0.000 in
B1 Max Shaft Penetration
0.458 in
Screw Material
Alloy Steel
Screw Finish
Black Oxide
Forged Clamp Screw
M2
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Note
Stainless steel hubs are available upon request.
Length (L)
0.937 in (23.8 mm)
UNSPC
31163008
Static Torque
15 lb-in
Hex Wrench Size
1.5 mm
Maximum Speed
10000 RPM
Temperature
-10°F to 150°F (-23°C to 65°C)
Country of Origin
USA
Shaft Tolerance
+0.0000 in / -0.0005 in
Balanced Design
Yes
Number of Screws
2 ea
Tariff Code
8483.60.8000
Dynamic Torque Non-Reversing
7.5 lb-in
Dynamic Torque Reversing
3.75 lb-in
Torsional Stiffness
27 lb-in/Deg
Angular Misalignment
1.0 deg
Parallel Misalignment
0.002 in
Axial Motion
0.004 in
Seating Torque
0.6 Nm
Recommended Hex Key
Metric Hex Keys
