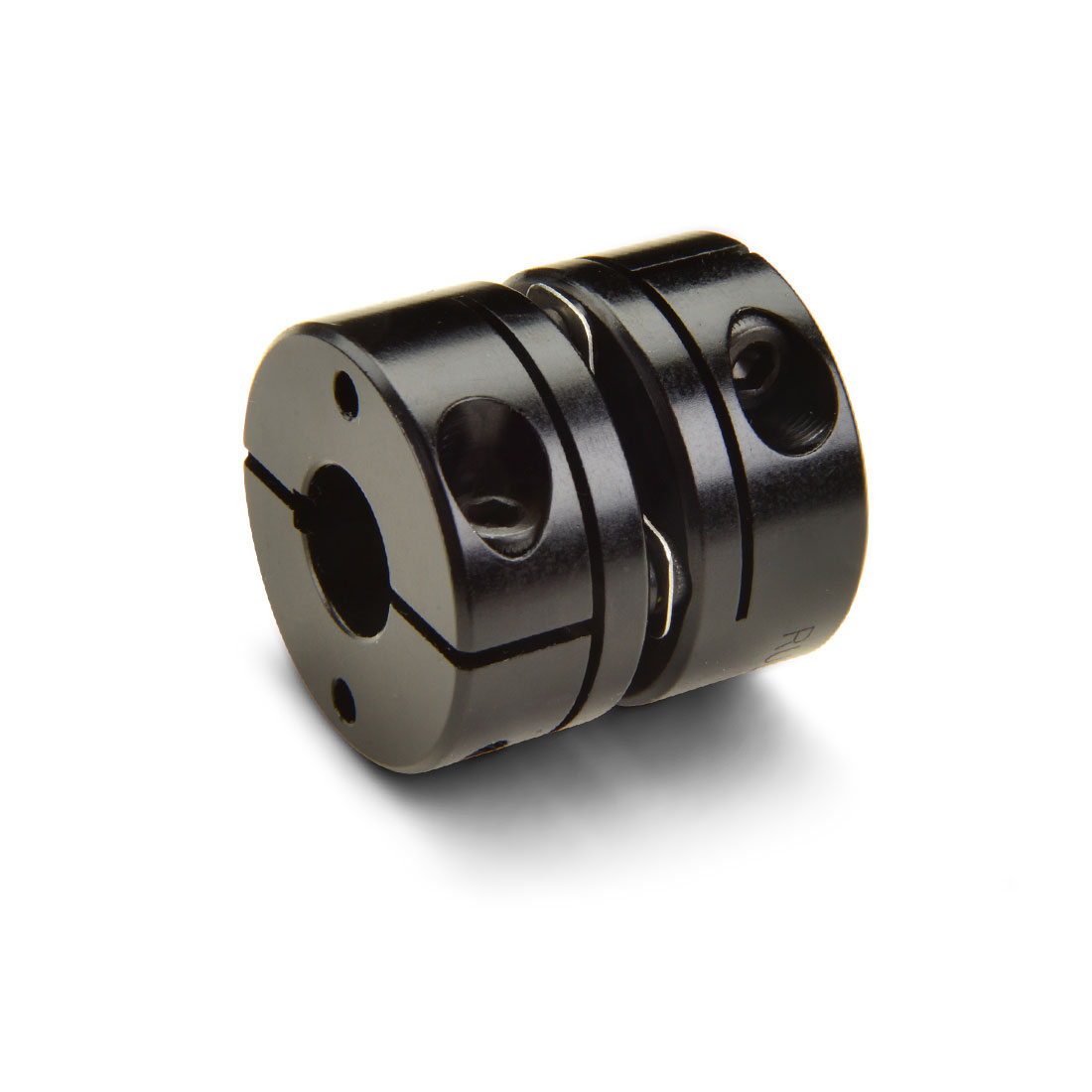

DCSK26-10-10-A
Manufacturer
Ruland
Description
0.6250" X 0.6250" Bores
1.625" Od, And 1.563" Length
3/16" X 3/16" Keyways
Clamp Single Disc Coupling
Anodized Aluminum Hubs, Stainless Steel Disc Springs
1.625" Od, And 1.563" Length
3/16" X 3/16" Keyways
Clamp Single Disc Coupling
Anodized Aluminum Hubs, Stainless Steel Disc Springs
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Balanced Design
Yes
Seating Torque
4.6 Nm
Hex Wrench Size
3.0 mm
Maximum Speed
10000 RPM
Temperature
-40°F to 200°F (-40°C to 93°C)
Country of Origin
USA
Shaft Tolerance
+0.0000 in / -0.0005 in
UNSPC
31163008
Tariff Code
8483.60.8000
Static Torque
180 lb-in
Dynamic Torque Non-Reversing
90 lb-in
Dynamic Torque Reversing
45 lb-in
Torsional Stiffness
625 lb-in/Deg
Angular Misalignment
1.0 deg
Parallel Misalignment
0.00 in
Axial Motion
0.010 in
Number of Screws
2 ea
Conflict Minerals
Compliant

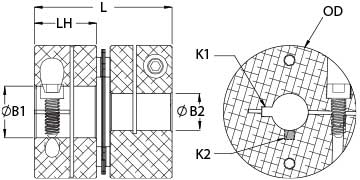

Length (L)
1.563 in (39.7 mm)
Keyway (K2)
3/16 in
Note
Stainless steel hubs are available upon request.
O.D. (D)
1.625 in (41.3 mm)
Material
Aluminum
Bore (B1)
0.6250 in
Bore (B2)
0.6250 in
Keyway
Yes
Keyway (K1)
3/16 in
B1 Max Shaft Penetration
0.755 in
RoHS3
Compliant
B2 Max Shaft Penetration
0.755 in
Bore Tolerance
+0.001 in / -0.000 in
Screw Material
Alloy Steel
Screw Finish
Black Oxide
Forged Clamp Screw
M4
ISO 9001:2015
Certified
REACH
Compliant
Recommended Hex Key
Metric Hex Keys
