DCSK36-28MM-1/2″-A
Manufacturer
Ruland
Description
28mm X 0.5000" Bores
2.250" (57.2mm) Od, And 2.313" (58.8mm) Length
8mm X 1/8" Keyways

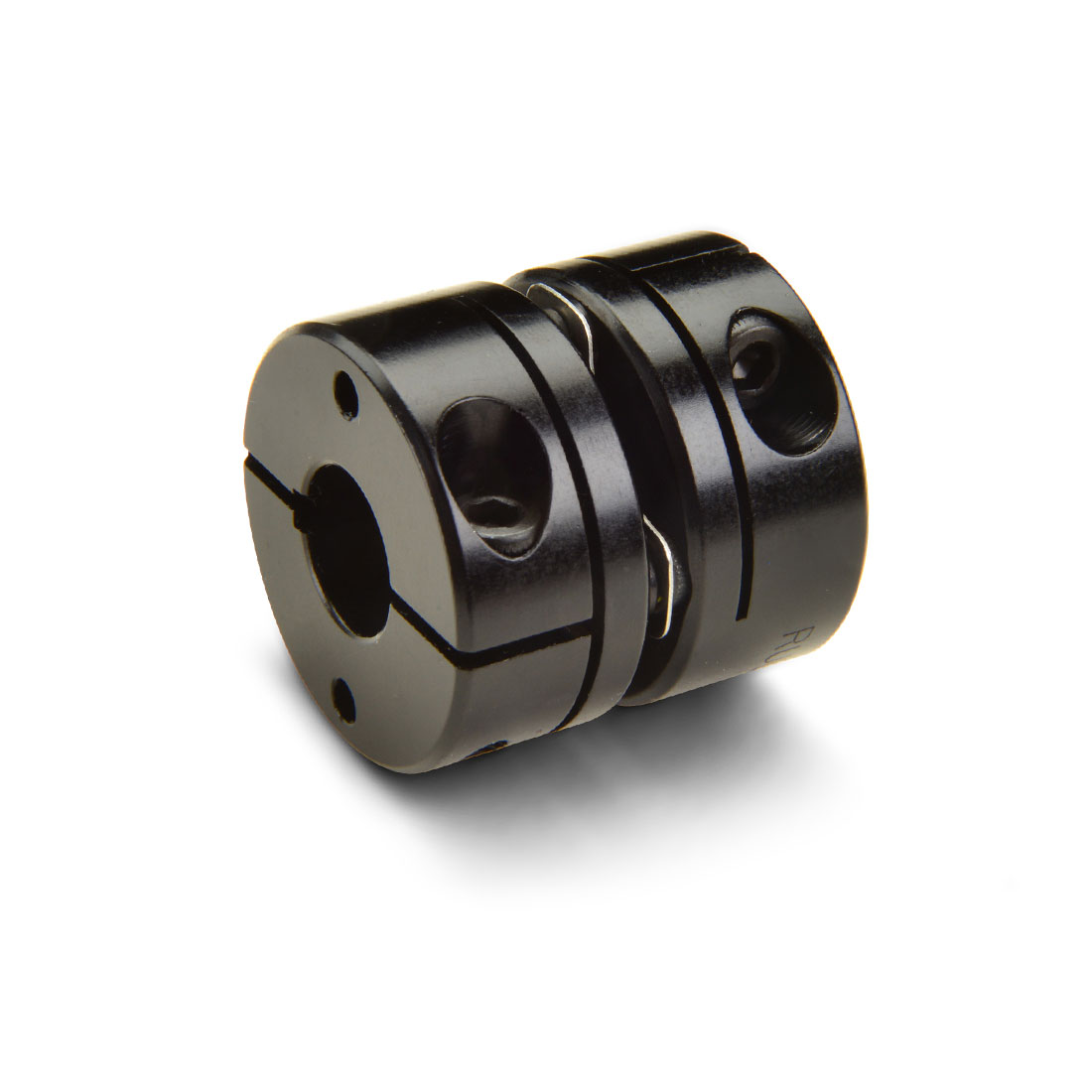

Clamp Single Disc Coupling
Anodized Aluminum Hubs, Stainless Steel Disc Springs
2.250" (57.2mm) Od, And 2.313" (58.8mm) Length
8mm X 1/8" Keyways
Clamp Single Disc Coupling
Anodized Aluminum Hubs, Stainless Steel Disc Springs

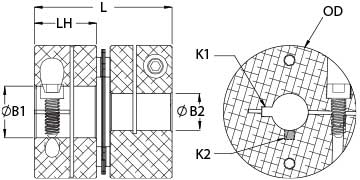

Bore (B1)
28 mm
Bore (B2)
0.5000 in
O.D. (D)
2.250 in (57.2 mm)
Length (L)
2.313 in (58.8 mm)
This quantity is not fully in stock. Leave your contact details below and we will confirm availability for the remainder.
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Static Torque
450 lb-in (50.9 Nm)
Hex Wrench Size
5.0 mm
Maximum Speed
10000 RPM
Temperature
-40°F to 200°F (-40°C to 93°C)
Country of Origin
USA
Shaft Tolerance
+0.0000 in / -0.0005 in +0.000 mm / -0.013 mm
UNSPC
31163008
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Dynamic Torque Non-Reversing
225 lb-in (25.45 Nm)
Dynamic Torque Reversing
112.5 lb-in (12.73 Nm)
Torsional Stiffness
1000 lb-in/Deg (113.0 Nm/Deg)
Angular Misalignment
1.0 deg
Parallel Misalignment
0.000 in (0.00 mm)
Axial Motion
0.015 in (0.38 mm)
Number of Screws
2 ea
Seating Torque
16 Nm
Balanced Design
Yes
B1 Max Shaft Penetration
1.085 in (27.6 mm)
Keyway (K2)
1/8 in
O.D. (D)
2.250 in (57.2 mm)
Material
Aluminum
Bore (B1)
28 mm
Bore (B2)
0.5000 in
Keyway
Yes
Keyway (K1)
8 mm
RoHS3
Compliant
B2 Max Shaft Penetration
1.085 in (27.6 mm)
Length (L)
2.313 in (58.8 mm)
Bore Tolerance
+0.001 in / -0.000 in (+0.03 mm / -0.00 mm)
Screw Material
Alloy Steel
Screw Finish
Black Oxide
Forged Clamp Screw
M6
ISO 9001:2015
Certified
REACH
Compliant
Note
Stainless steel hubs are available upon request.
Recommended Hex Key
Metric Hex Keys
