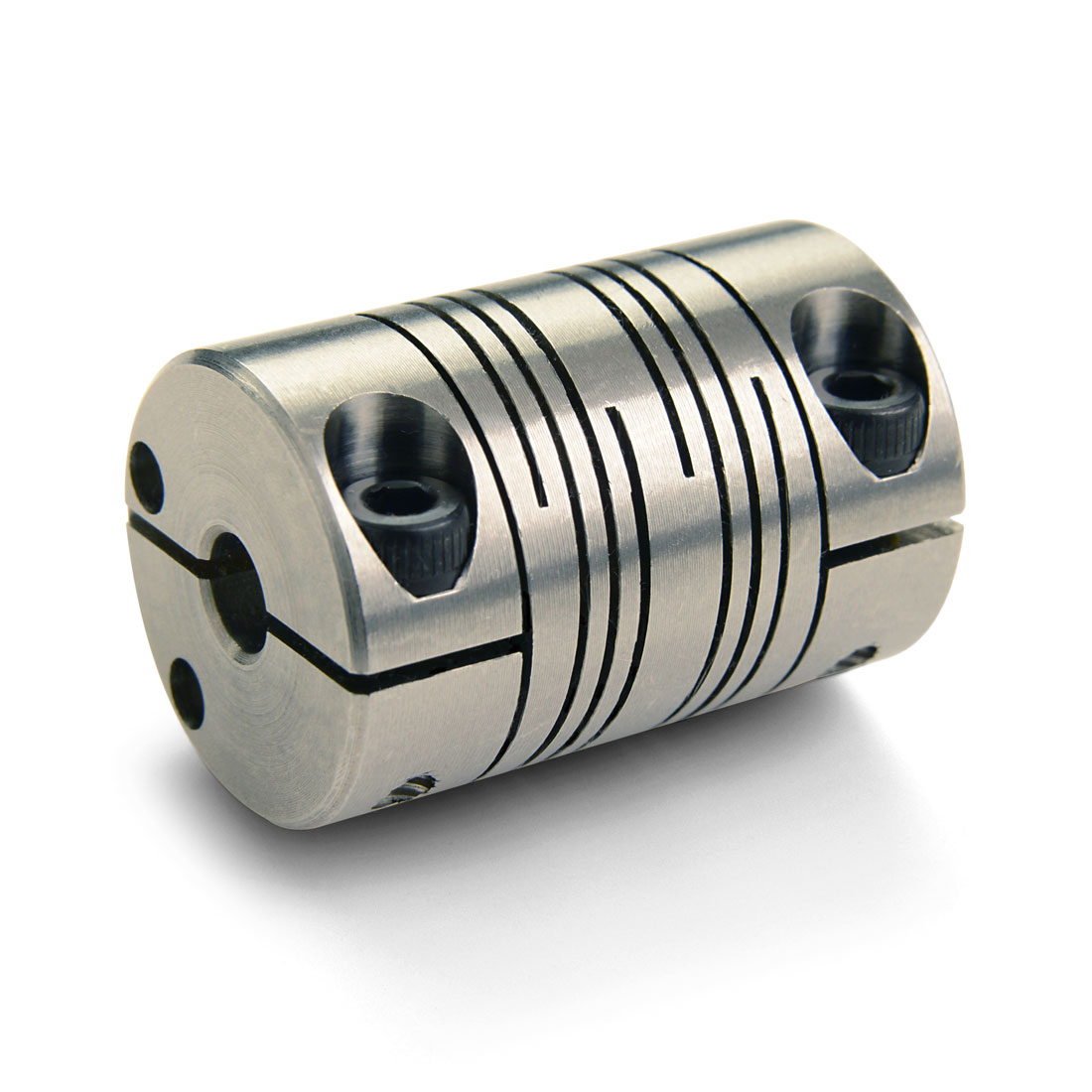

FCR10-1/4″-5MM-SS
Manufacturer
Ruland
Description
1/4" X 5mm Bores
0.625" Od 1.000" Length
Six Beam Coupling
Stainless Steel Clamp Style
0.625" Od 1.000" Length
Six Beam Coupling
Stainless Steel Clamp Style
Bore (B1)
0.2500 in
Bore (B2)
5 mm
O.D. (D)
0.625 in (15.9 mm)
Length (L)
1.000 in (25.4 mm)
This quantity is not fully in stock. Leave your contact details below and we will confirm availability for the remainder.
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
UNSPC
31163003
Temperature
-40°F to 350°F (-40°C to 176°C)
Country of Origin
USA
Product Group
F-Series Six Beam Coupling
Shaft Tolerance
+0.0000 in / -0.0005 in +0.000 mm / -0.013 mm
Zero-Backlash?
Yes
Balanced Design
Yes
Clearance Diameter (C) MAX
0.796 in (20.22 mm)
Hex Wrench Size
2.0 mm
Cap Screw
M2.5
Static Torque
18 lb-in (2.03 Nm)
Dynamic Torque Non-Reversing
9 lb-in (1.02 Nm)
Dynamic Torque Reversing
4.5 lb-in (0.51 Nm)
Torsional Stiffness
0.088 Deg/lb-in (0.78 Deg/Nm)
Angular Misalignment
3.0 deg
Parallel Misalignment
0.008 in (0.20 mm)
Maximum Speed
6000 RPM
Seating Torque
1.21 Nm
Length (L)
1.000 in (25.4 mm)
B2 Max Shaft Penetration
0.483 in (12.3 mm)
O.D. (D)
0.625 in (15.9 mm)
Material
303 Stainless Steel
Bore (B1)
0.2500 in
Bore (B2)
5 mm
Keyway
No
B1 Max Shaft Penetration
0.483 in (12.3 mm)
Bore Tolerance
+0.001 in / -0.000 in (+0.025 mm / -0.000 mm)
Number of Screws
2 ea
Screw Material
Stainless Steel
Screw Finish
Black Oxide
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Axial Motion
0.005 in (0.13 mm)
