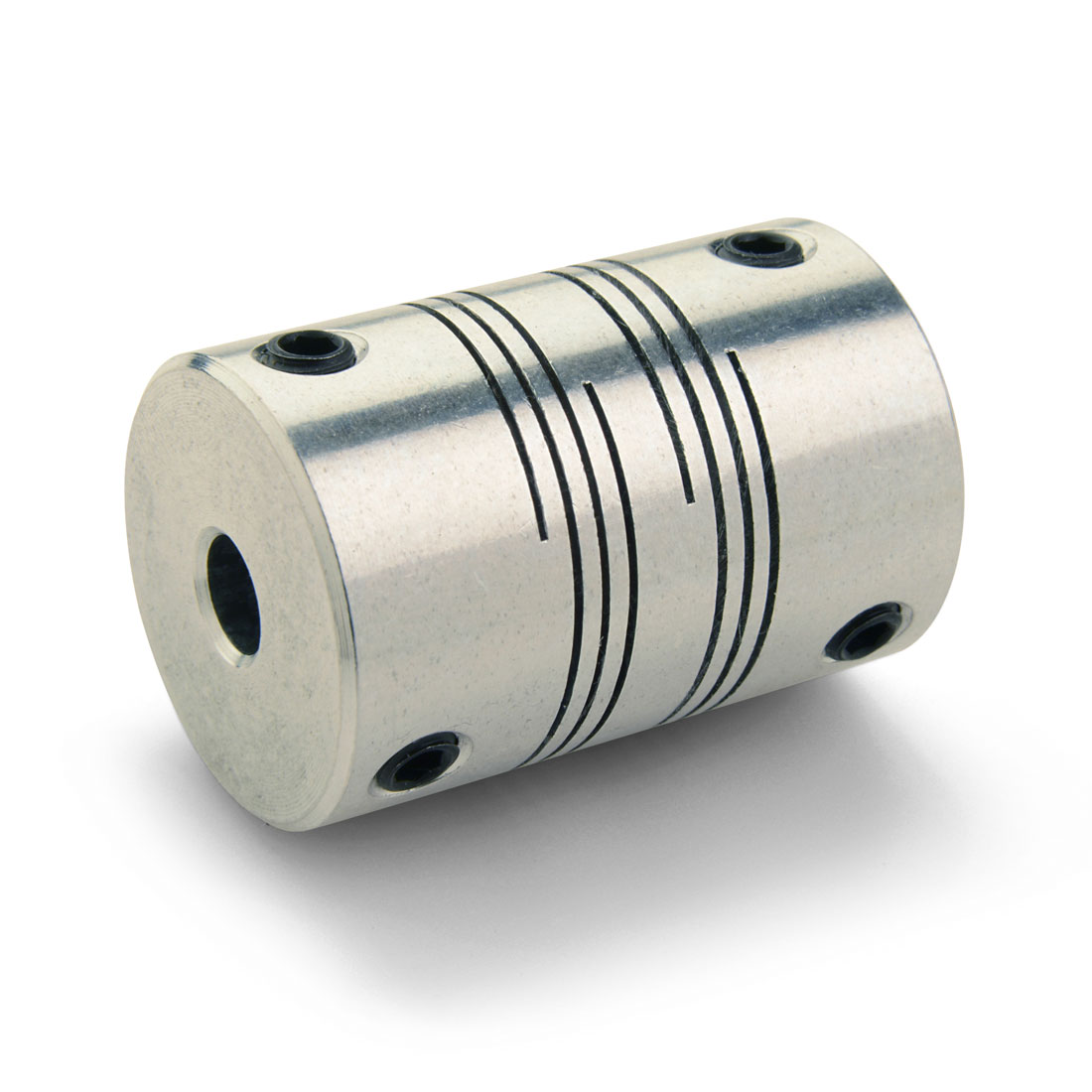

FSR16-8MM-5/16″-A
Manufacturer
Ruland
Description
8mm X 5/16" Bores
1.000" Od 1.500" Length
Six Beam Coupling
Aluminum Set Screw Style
1.000" Od 1.500" Length
Six Beam Coupling
Aluminum Set Screw Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Forged Set Screw
M5
Maximum Speed
6000 RPM
Temperature
-40°F to 225°F (-40°C to 107°C)
Country of Origin
USA
Product Group
F-Series Six Beam Coupling
Shaft Tolerance
+0.0000 in / -0.0005 in +0.000 mm / -0.013 mm
Zero-Backlash?
Yes
UNSPC
31163003
Seating Torque
4 Nm
Static Torque
33.0 lb-in (3.73 Nm)
Dynamic Torque Non-Reversing
16.5 lb-in (1.86 Nm)
Dynamic Torque Reversing
8.25 lb-in (0.93 Nm)
Torsional Stiffness
0.097 Deg/lb-in (0.86 Deg/Nm)
Angular Misalignment
3.0 deg
Parallel Misalignment
0.015 in (0.38 mm)
Hex Wrench Size
2.5 mm
Number of Screws
4 ea

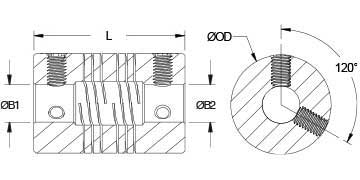

Length (L)
1.500 in (38.1 mm)
B2 Max Shaft Penetration
0.720 in (18.3 mm)
O.D. (D)
1.000 in (25.4 mm)
Material
Aluminum
Bore (B1)
8 mm
Bore (B2)
0.3125 in
Keyway
No
B1 Max Shaft Penetration
0.720 in (18.3 mm)
Bore Tolerance
+0.001 in / -0.000 in (+0.025 mm / -0.000 mm)
Tariff Code
8483.60.8000
Screw Material
Alloy Steel
Screw Finish
Black Oxide
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Axial Motion
0.010 in (0.25 mm)
