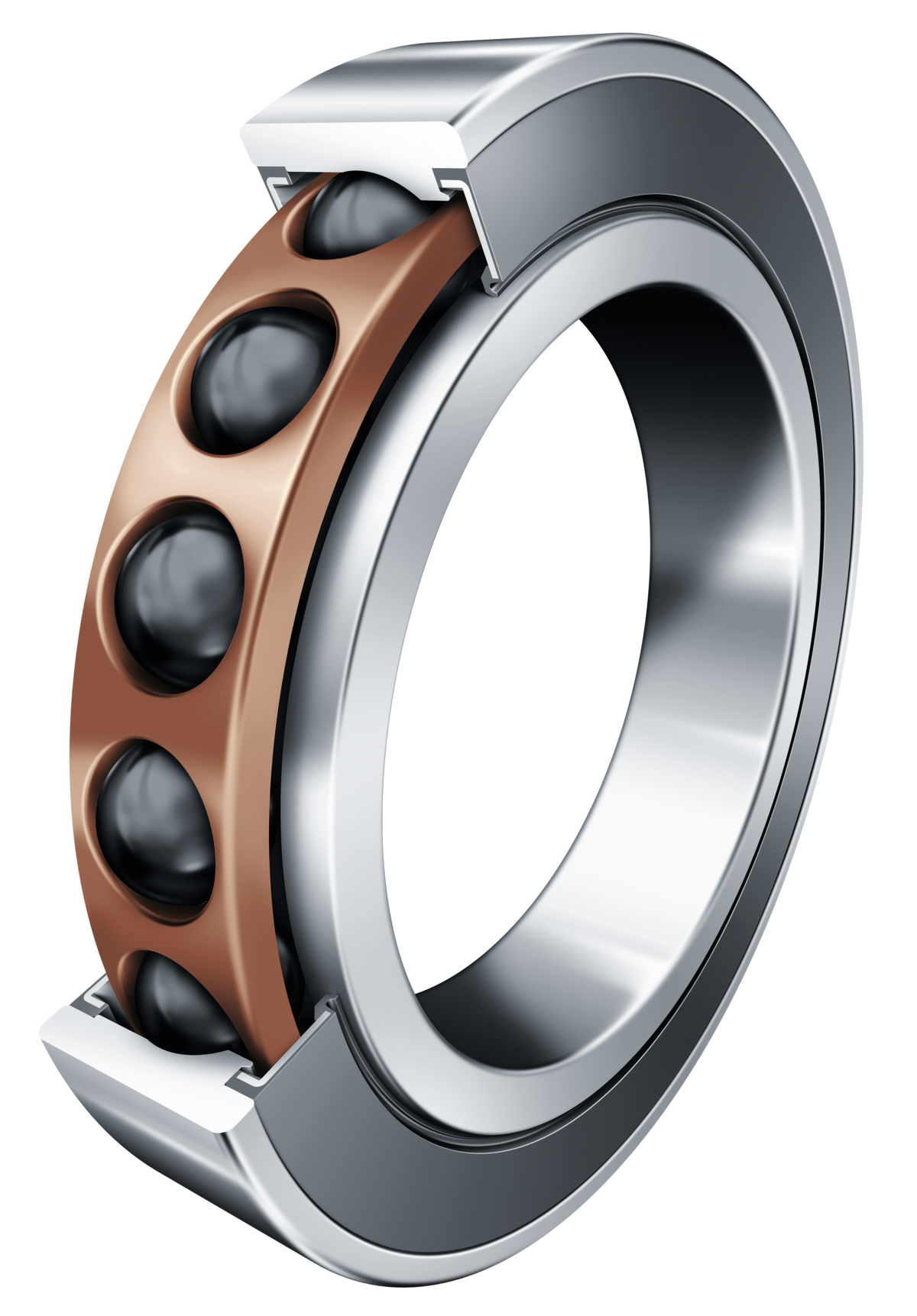

HCB71905-C-2RSD-T-P4S-UL

Manufacturer
FAG
Description
25 mm x 42 mm x 9 mm
Hybrid Ceramic Angular Contact
15° Contact Angle
Single - Universal Matched
Get Volume Pricing

Special pricing for OEMs and high volume users.

Request Quote
in list
Please check the entered value
Quote list updated
Still have other questions?

Please contact our sales managers they are ready to solve any of your questions.

Contact sales

Specifications

Bore Diameter (d)
25 mm
Outside Diameter (D)
42 mm
Width (B)
9 mm
Contact Angle
15° contact angle
Bearing Arrangement
Single - Universal Matched
Brand
FAG
Precision
P4S
Ring Material
Chrome Steel 100Cr6
Ball Material
Ceramic Si3N4
Preload
Light Preload
Dynamic Load(Cr)
1798.47 lbs
Static Load(C0r)
820.55 lbs
Speed Rating Grease
50000
Closure
Rubber Seal Non-Contact
