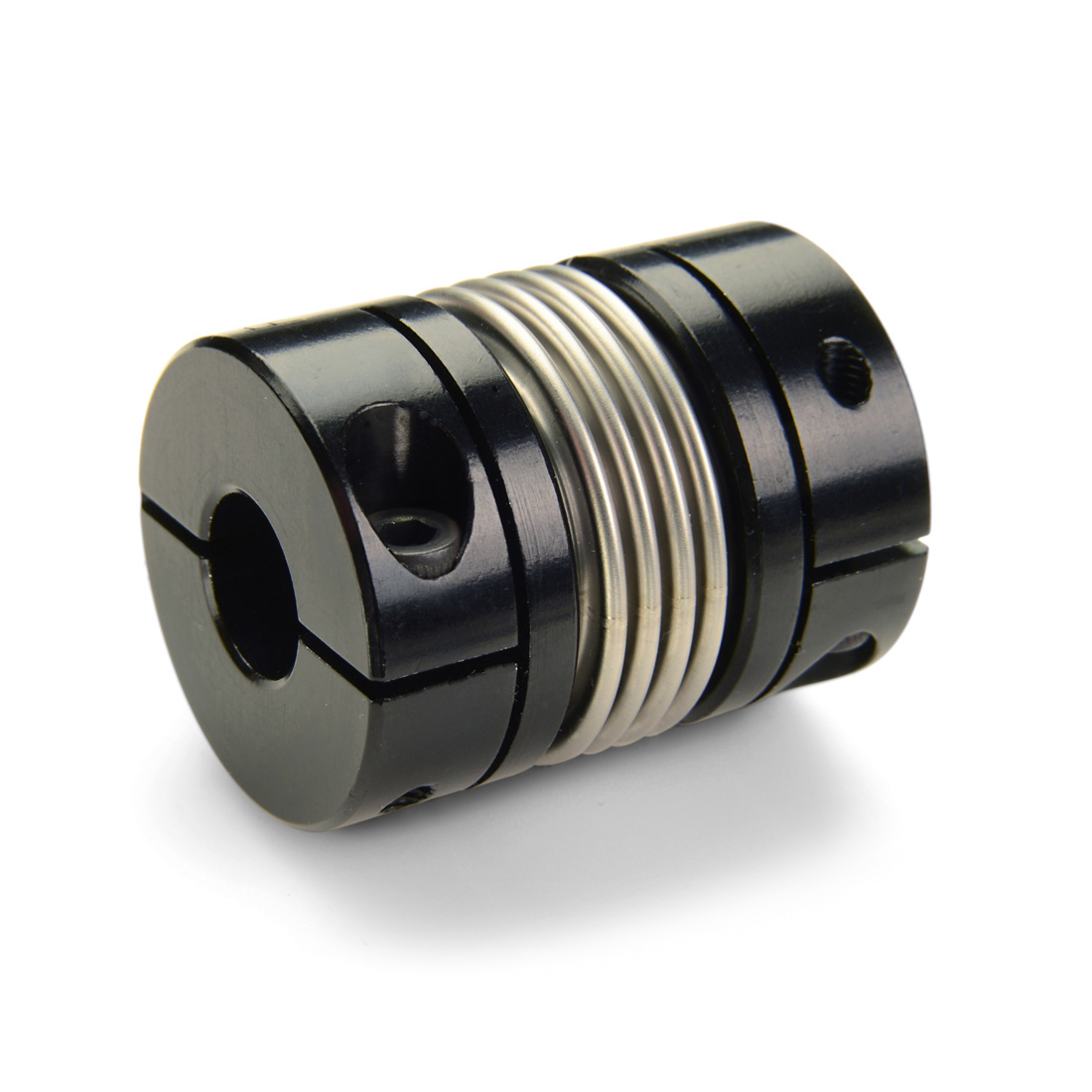

MBC51-25-20-A
Manufacturer
Ruland
Description
25mm X 20mm Bores
50.8mm Od, 61.3mm Length
Bellows Coupling
High Stiffness
Aluminum
50.8mm Od, 61.3mm Length
Bellows Coupling
High Stiffness
Aluminum
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Dynamic Torque Reversing
11.30 Nm
Shaft Tolerance
+0.000 mm / -0.013 mm
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163018
Cap Screw
M5
Dynamic Torque Non-Reversing
22.60 Nm
Hex Wrench Size
4.0 mm
Maximum Speed
10000 RPM
Torsional Stiffness
108 Nm/Deg
Angular Misalignment
2.0 deg
Parallel Misalignment
0.25 mm
Axial Motion
0.50 mm
Bellows Attachment Method
Epoxy
Length Tolerance
+/- 0.76 mm
Temperature
-40°F to 200°F (-40°C to 93°C)
Product Group
Bellows Coupling Standard Length
Static Torque
45.2 Nm
Screw Material
Alloy Steel
Bore Tolerance
+0.03 mm / -0.00 mm
Material
Aluminum

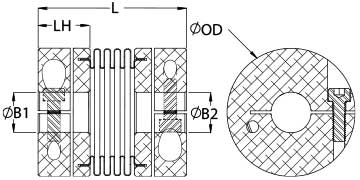

Bore (B1)
25 mm
Bore (B2)
20 mm
Keyway
No
B1 Max Shaft Penetration
27.9 mm
B2 Max Shaft Penetration
27.9 mm
Seating Torque
9.5 Nm
Screw Finish
Black Oxide
Length (L)
2.413 in (61.3 mm)
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Number of Screws
2 ea
O.D. (D)
2.000 in (50.8 mm)
Recommended Hex Key
Metric Hex Keys
