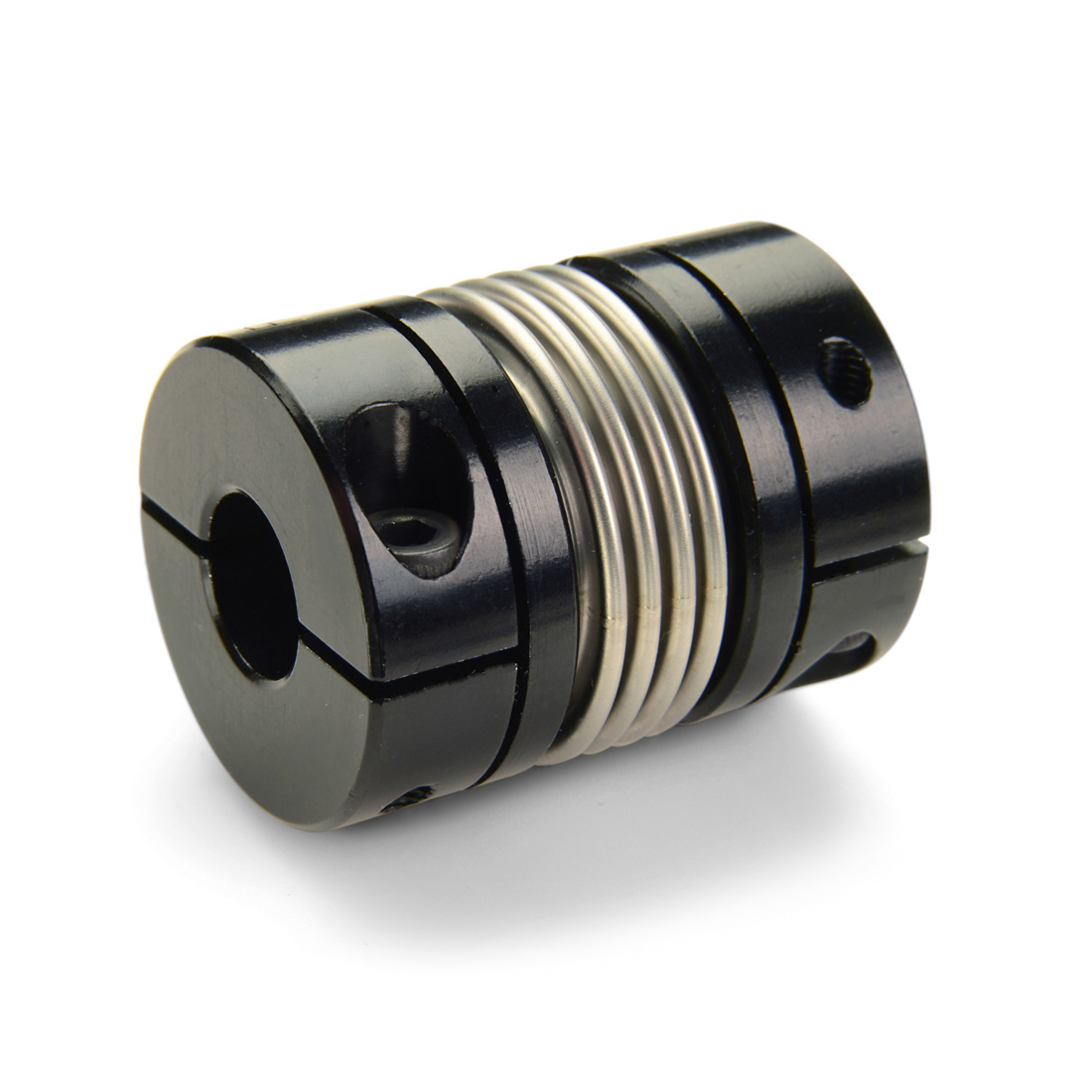

MBC80-45-42-A
Manufacturer
Ruland
Description
45mm X 42mm Bores
79.4mm, Od, 96.9mm Length
Bellows Coupling
High Stiffness
Aluminum
79.4mm, Od, 96.9mm Length
Bellows Coupling
High Stiffness
Aluminum
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Dynamic Torque Reversing
38 Nm
Balanced Design
Yes
UNSPC
31163018
Cap Screw
M8
Static Torque
152 Nm
Dynamic Torque Non-Reversing
76 Nm
Temperature
-40°F to 200°F (-40°C to 93°C)
Torsional Stiffness
395.5 Nm/Deg
Parallel Misalignment
0.30 mm
Angular Misalignment
2.0 deg
Axial Motion
0.76 mm
Bellows Attachment Method
Epoxy
Length Tolerance
+/- 0.76 mm
Recommended Hex Key
Metric Hex Keys
B1 Min Shaft Penetration
22.2 mm
Product Group
Bellows Coupling Standard Length
Shaft Tolerance
+0.000 mm / -0.013 mm
Zero-Backlash?
Yes
Maximum Speed
10000 RPM

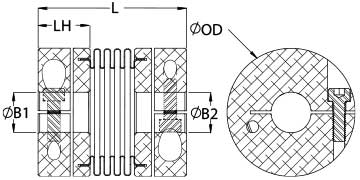

Length (L)
3.816 in (96.9 mm)
ISO 9001:2015
Certified
Bore (B1)
45 mm
Bore (B2)
42 mm
Keyway
No
B1 Max Shaft Penetration
44.5 mm
B2 Max Shaft Penetration
44.5 mm
Screw Material
Alloy Steel
Bore Tolerance
+0.03 mm / -0.00 mm
Screw Finish
Black Oxide
Hex Wrench Size
6.0 mm
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Number of Screws
2
Seating Torque
39 Nm
O.D. (D)
3.125 in (79.4 mm)
Material
Aluminum
B2 Min Shaft Penetration
22.2 mm
