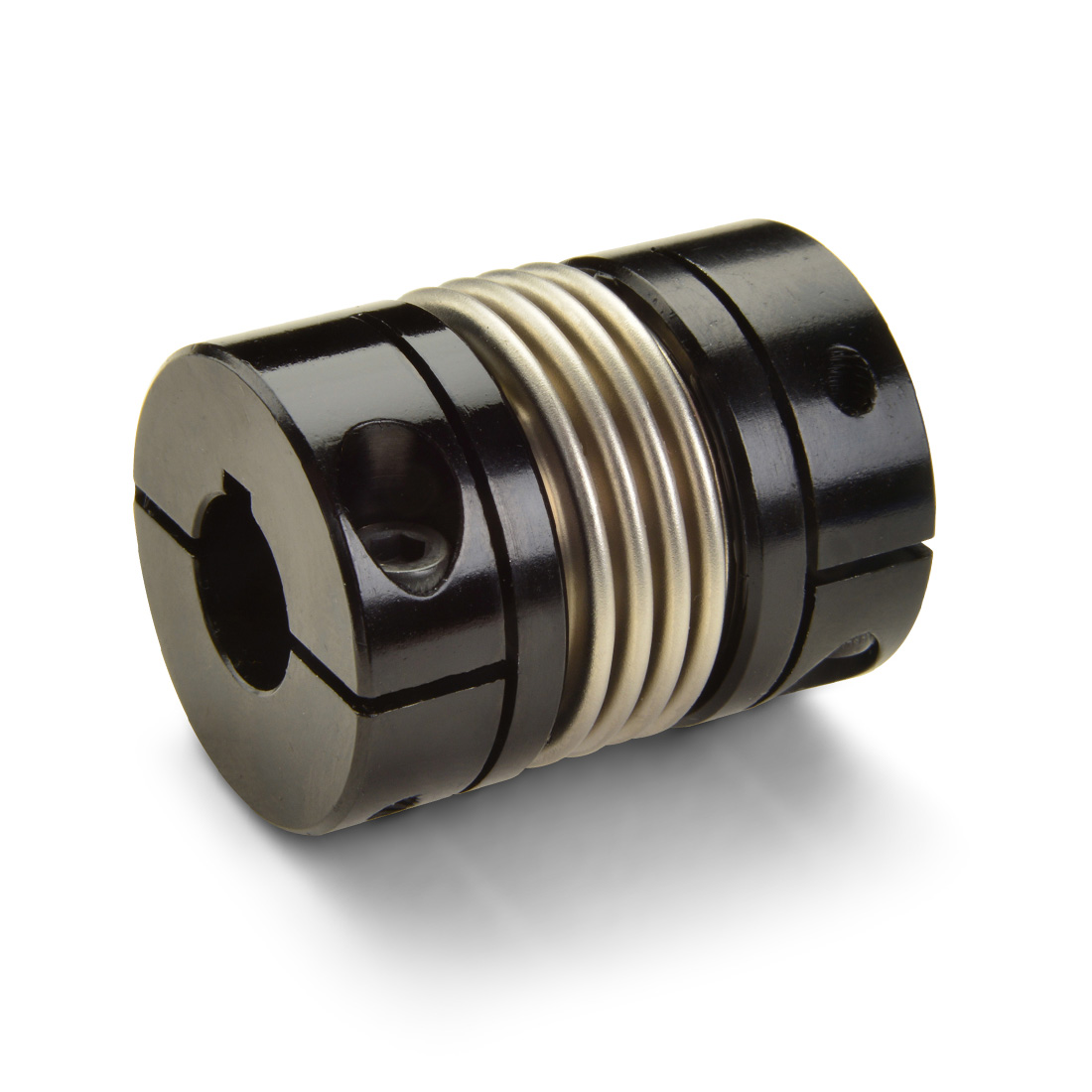

MBCK41-17-12-A
Manufacturer
Ruland
Description
17mm X 12mm Bores
41.3mm Od, 51.7mm Length
Bellows Coupling With Keyways
High Stiffness
Aluminum
41.3mm Od, 51.7mm Length
Bellows Coupling With Keyways
High Stiffness
Aluminum
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Seating Torque
4.6 Nm
Product Group
Bellows Coupling Standard Length
Shaft Tolerance
+0.000 mm / -0.013 mm
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163018
Cap Screw
M4
Hex Wrench Size
3.0 mm
Dynamic Torque Reversing
7.00 Nm
Dynamic Torque Non-Reversing
14.00 Nm
Torsional Stiffness
63 Nm/Deg
Angular Misalignment
2.0 deg
Parallel Misalignment
0.25 mm
Axial Motion
0.50 mm
Bellows Attachment Method
Epoxy
Length Tolerance
+/- 0.76 mm
Maximum Speed
10000 RPM
Temperature
-40°F to 200°F (-40°C to 93°C)
Static Torque
28.0 Nm
Number of Screws
2 ea
Bore Tolerance
+0.03 mm / -0.00 mm
Material
Aluminum

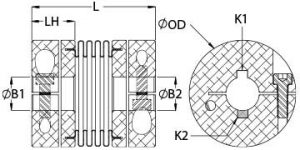

Bore (B1)
17 mm
Bore (B2)
12 mm
Keyway
Yes
Keyway (K1)
5 mm
Keyway (K2)
4 mm
B2 Max Shaft Penetration
24.0 mm
B1 Max Shaft Penetration
24.0 mm
Length (L)
2.035 in (51.7 mm)
Screw Material
Alloy Steel
Screw Finish
Black Oxide
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
O.D. (D)
1.625 in (41.3 mm)
Recommended Hex Key
Metric Hex Keys
