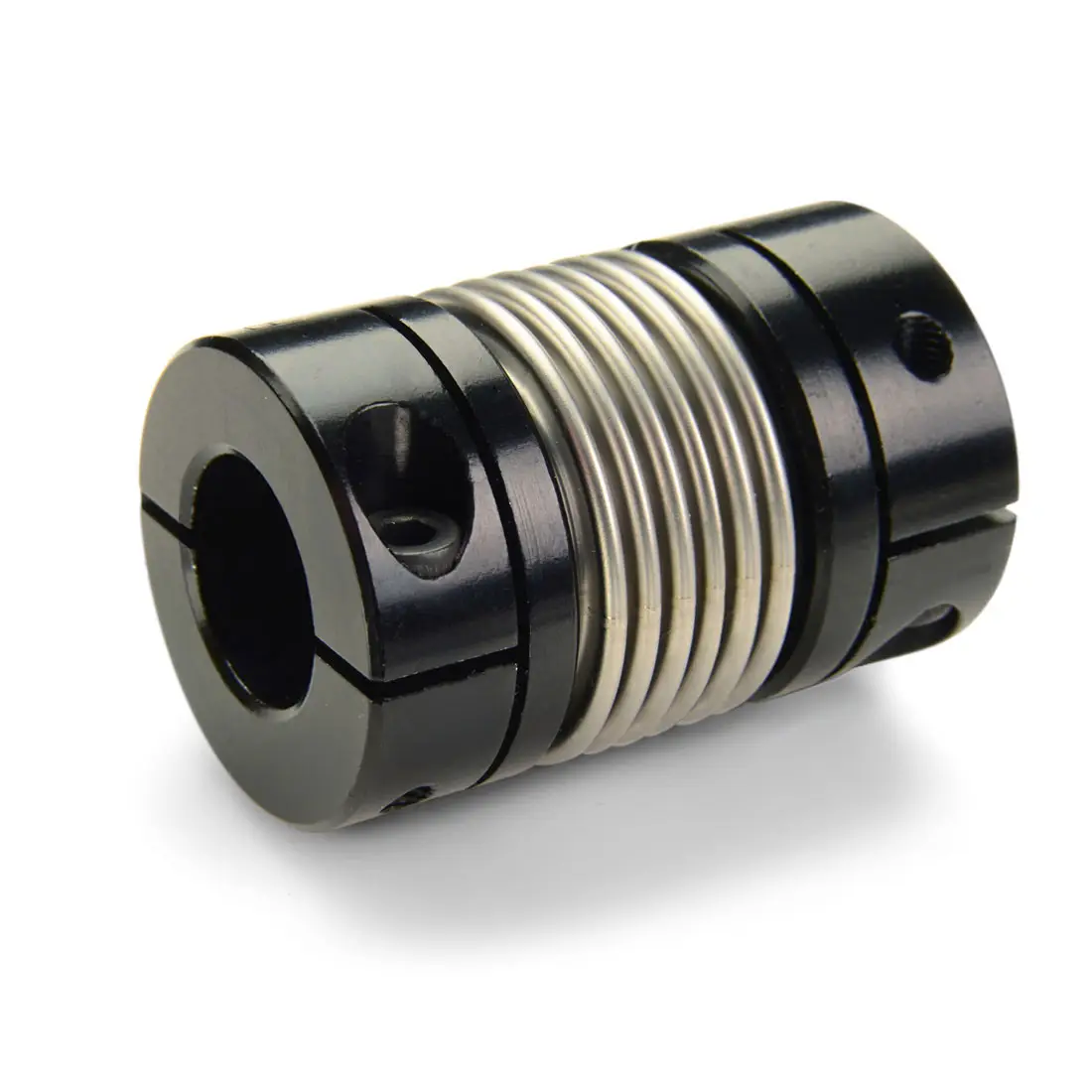

MBCL19-8-6-A
Manufacturer
Ruland
Description
8mm X 6mm Bores
19.1mm, Od, 34.4 Mm Length
Bellows Coupling
Increased Misalignment
Aluminum
19.1mm, Od, 34.4 Mm Length
Bellows Coupling
Increased Misalignment
Aluminum

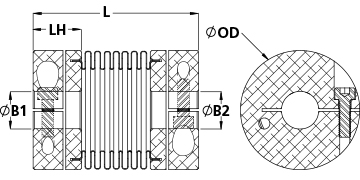

Bore (B1)
8 mm
Bore (B2)
6 mm
O.D. (D)
0.750 in (19.1 mm)
Length (L)
1.355 in (34.4 mm)
This quantity is not fully in stock. Leave your contact details below and we will confirm availability for the remainder.
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Hex Wrench Size
2.0 mm
Temperature
-40°F to 200°F (-40°C to 93°C)
Product Group
Bellows Coupling Standard Length
Shaft Tolerance
+0.000 mm / -0.013 mm
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163018
Maximum Speed
10000 RPM
Cap Screw
M2.5
Dynamic Torque Non-Reversing
2.25 Nm
Dynamic Torque Reversing
1.13 Nm
Torsional Stiffness
9.8 Nm/Deg
Angular Misalignment
3.0 deg
Parallel Misalignment
0.20 mm
Axial Motion
0.51 mm
Bellows Attachment Method
Epoxy
Static Torque
4.5 Nm
Seating Torque
1.21 Nm
Bore Tolerance
+0.03 mm / -0.00 mm
Number of Screws
2 ea
O.D. (D)
0.750 in (19.1 mm)
Material
Aluminum
Bore (B1)
8 mm
Bore (B2)
6 mm
Keyway
No
B1 Max Shaft Penetration
14.5 mm
Length (L)
1.355 in (34.4 mm)
B2 Max Shaft Penetration
14.5 mm
Screw Material
Alloy Steel
Screw Finish
Black Oxide
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Length Tolerance
+/- 0.76 mm
