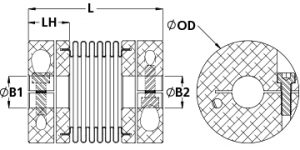

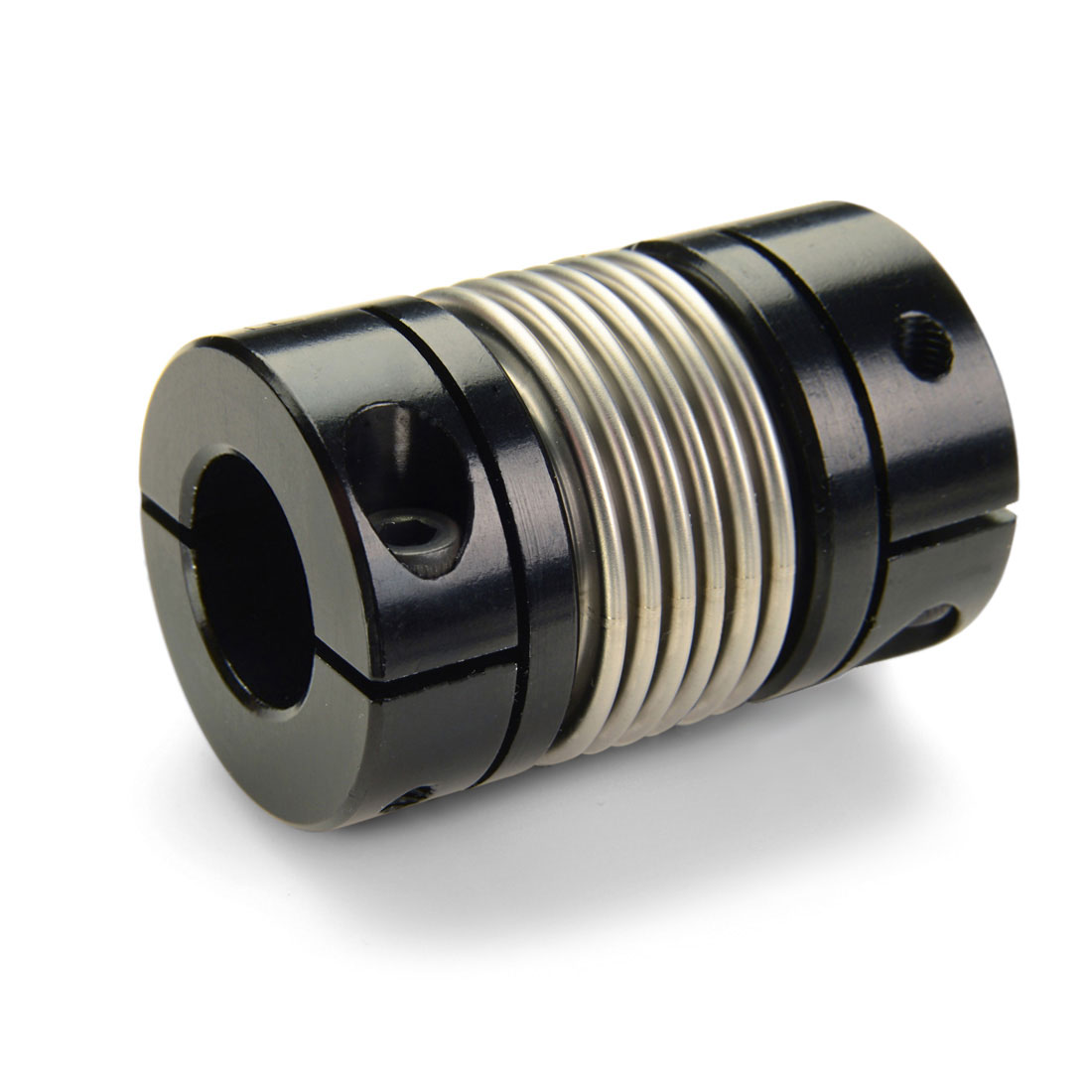

MBCL41-16-10-A
Manufacturer
Ruland
Description
16mm X 10mm Bores
41.3mm, Od, 58.8 Mm Length
Bellows Coupling
Increased Misalignment
Aluminum
41.3mm, Od, 58.8 Mm Length
Bellows Coupling
Increased Misalignment
Aluminum
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Hex Wrench Size
3.0 mm
Temperature
-40°F to 200°F (-40°C to 93°C)
Product Group
Bellows Coupling Standard Length
Shaft Tolerance
+0.000 mm / -0.013 mm
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163018
Maximum Speed
10000 RPM
Cap Screw
M4
Dynamic Torque Non-Reversing
14.00 Nm
Dynamic Torque Reversing
7.00 Nm
Torsional Stiffness
39.4 Nm/Deg
Angular Misalignment
3.0 deg
Parallel Misalignment
0.38 mm
Axial Motion
0.76 mm
Bellows Attachment Method
Epoxy
Static Torque
28.0 Nm
Seating Torque
4.6 Nm
Bore Tolerance
+0.03 mm / -0.00 mm
Number of Screws
2 ea

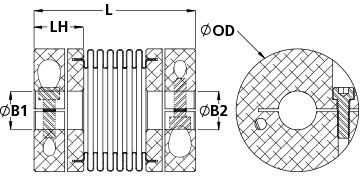

O.D. (D)
1.625 in (41.3 mm)
Material
Aluminum
Bore (B1)
16 mm
Bore (B2)
10 mm
Keyway
No
B1 Max Shaft Penetration
24.0 mm
Length (L)
2.316 in (58.8 mm)
B2 Max Shaft Penetration
24.0 mm
Screw Material
Alloy Steel
Screw Finish
Black Oxide
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Length Tolerance
+/- 0.76 mm
