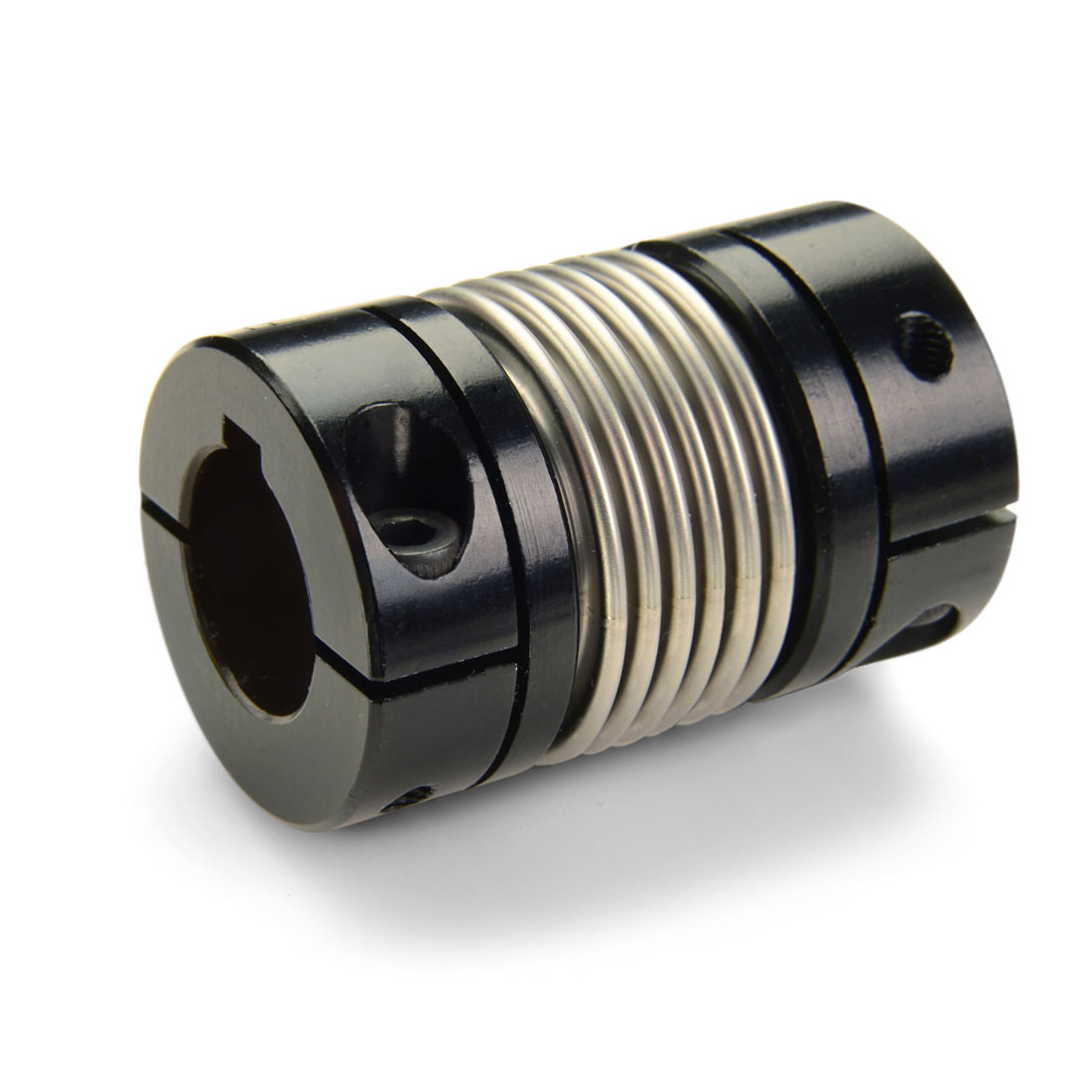

MBCLK41-13-12-A
Manufacturer
Ruland
Description
13mm X 12mm Bores
41.3mm, Od, 58.8 Mm Length
Bellows Coupling With Keyways
Increased Misalignment
Aluminum
41.3mm, Od, 58.8 Mm Length
Bellows Coupling With Keyways
Increased Misalignment
Aluminum
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Seating Torque
4.6 Nm
Maximum Speed
10000 RPM
Temperature
-40°F to 200°F (-40°C to 93°C)
Product Group
Bellows Coupling Standard Length
Shaft Tolerance
+0.000 mm / -0.013 mm
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163018
Hex Wrench Size
3.0 mm
Cap Screw
M4
Dynamic Torque Non-Reversing
14.00 Nm
Dynamic Torque Reversing
7.00 Nm
Torsional Stiffness
39.4 Nm/Deg
Angular Misalignment
3.0 deg
Parallel Misalignment
0.38 mm
Axial Motion
0.76 mm
Bellows Attachment Method
Epoxy
Static Torque
28.0 Nm
Number of Screws
2 ea
B2 Max Shaft Penetration
24.0 mm
Tariff Code
8483.60.8000

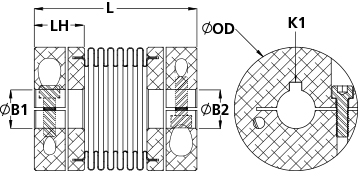

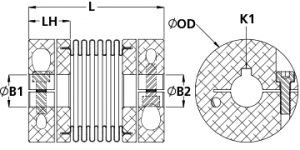

O.D. (D)
1.625 in (41.3 mm)
Material
Aluminum
Bore (B1)
13 mm
Bore (B2)
12 mm
Keyway
Yes
Keyway (K1)
5 mm
Keyway (K2)
4 mm
Length (L)
2.316 in (58.8 mm)
B1 Max Shaft Penetration
24.0 mm
Bore Tolerance
+0.03 mm / -0.00 mm
Screw Material
Alloy Steel
Screw Finish
Black Oxide
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Length Tolerance
+/- 0.76 mm
