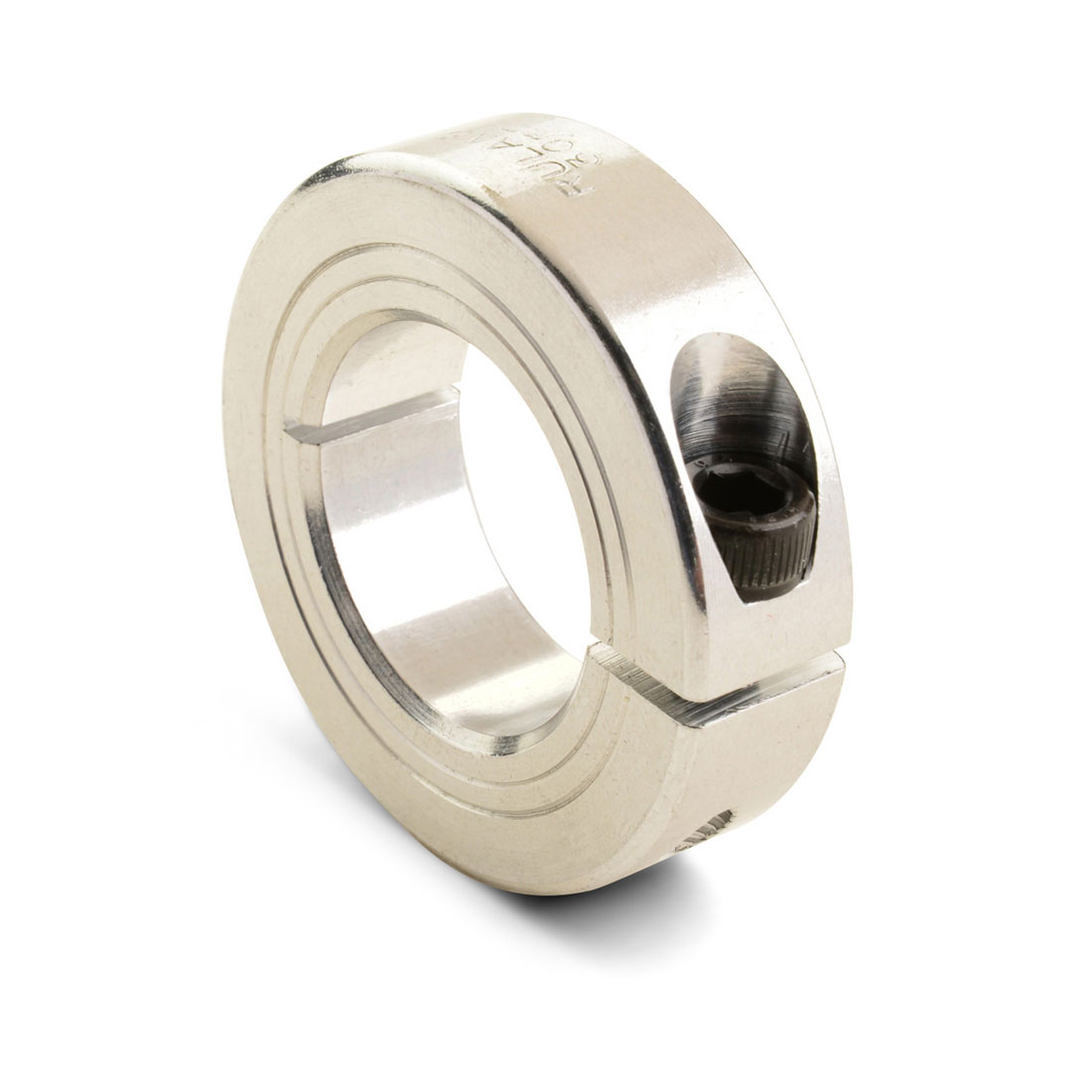

MCL-9-A
Manufacturer
Ruland
Description
9mm Bore; 24mm Od, 9mm Width
One-piece Shaft Collar
Aluminum
Clamp Style
One-piece Shaft Collar
Aluminum
Clamp Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications

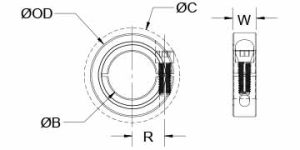

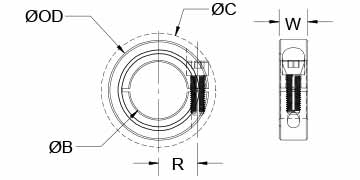

Brand
Ruland
O.D. (D)
24 mm
Material
Aluminum
Bore (B1)
9 mm
Bore Tolerance
+0.050 mm / +0.012 mm
Screw Material
Alloy Steel
Screw Finish
Black Oxide
Forged Clamp Screw
M3 x 10
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Number of Screws
1 ea
Screw Location (R)
8.51 mm
Seating Torque
2.1 Nm
Hex Wrench Size
2.5 mm
Temperature
-40°F to 225°F (-40°C to 107°C)
Country of Origin
USA
Finish Specification
Bright No Plating
Shaft Tolerance
+0.000 mm / -0.013 mm
UNSPC
31162811
Clearance Diameter (C) MAX
26.3 mm
Material Specification
2024-T351 Bar
Width (W)
9 mm
