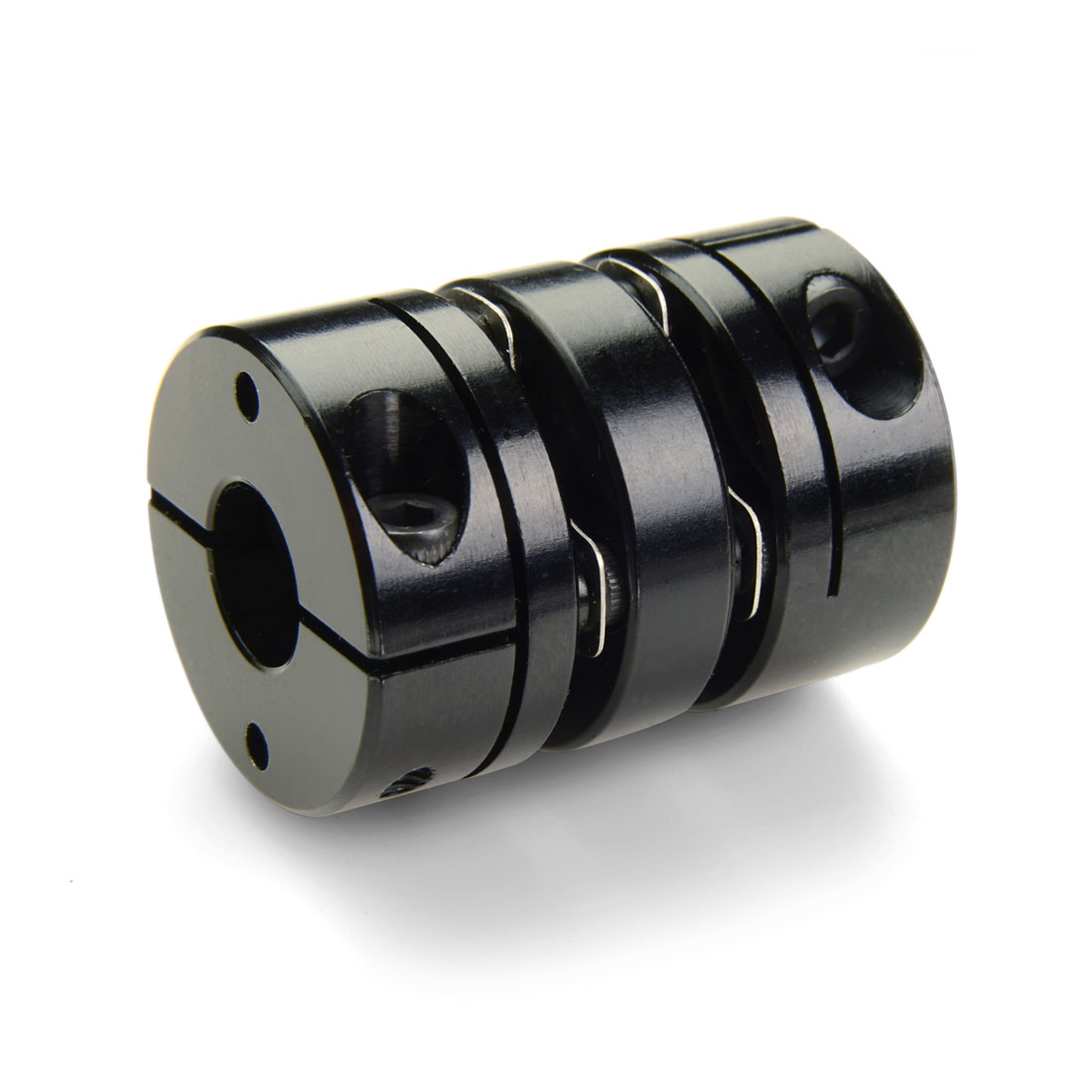

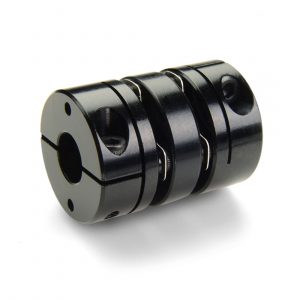

MDCD70-38-24-A
Manufacturer
Ruland
Description
38mm X 24mm Bores
69.9mm Od, And 89.7 Mm Length
Clamp Double Disc Coupling
Accommodates All Types Of Misalignment
Anodized Aluminum Hubs, Stainless Steel Disc Springs, And A Center Spacer
69.9mm Od, And 89.7 Mm Length
Clamp Double Disc Coupling
Accommodates All Types Of Misalignment
Anodized Aluminum Hubs, Stainless Steel Disc Springs, And A Center Spacer
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Dynamic Torque Reversing
32.49 Nm
Temperature
-40°F to 200°F (-40°C to 93°C)
Country of Origin
USA
Shaft Tolerance
+0.000 mm / -0.013 mm
Balanced Design
Yes
UNSPC
31163008
Dynamic Torque Non-Reversing
48.01 Nm
Number of Screws
2 ea
Seating Torque
39 Nm
Torsional Stiffness
180.8 Nm/Deg
Angular Misalignment
2.0 deg
Parallel Misalignment
0.30 mm
Axial Motion
0.76 mm
Recommended Hex Key
Metric Hex Keys
B1 Min Shaft Penetration
19.1 mm
Hex Wrench Size
6.0 mm
Maximum Speed
10000 RPM
Static Torque
96.03 Nm
Bore Tolerance
+0.03 mm / -0.00 mm
B2 Max Shaft Penetration
41.9 mm

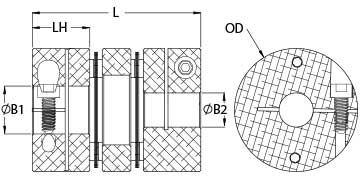

O.D. (D)
2.750 in (69.9 mm)
Material
Aluminum
Bore (B1)
38 mm
Bore (B2)
24 mm
Keyway
No
B1 Max Shaft Penetration
30.5 mm
Tariff Code
8483.60.8000
Screw Material
Alloy Steel
Length (L)
3.531 in (89.7 mm)
Screw Finish
Black Oxide
Forged Clamp Screw
M8
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Note
Stainless steel hubs are available upon request.
B2 Min Shaft Penetration
19.1 mm
