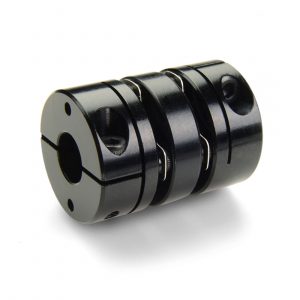

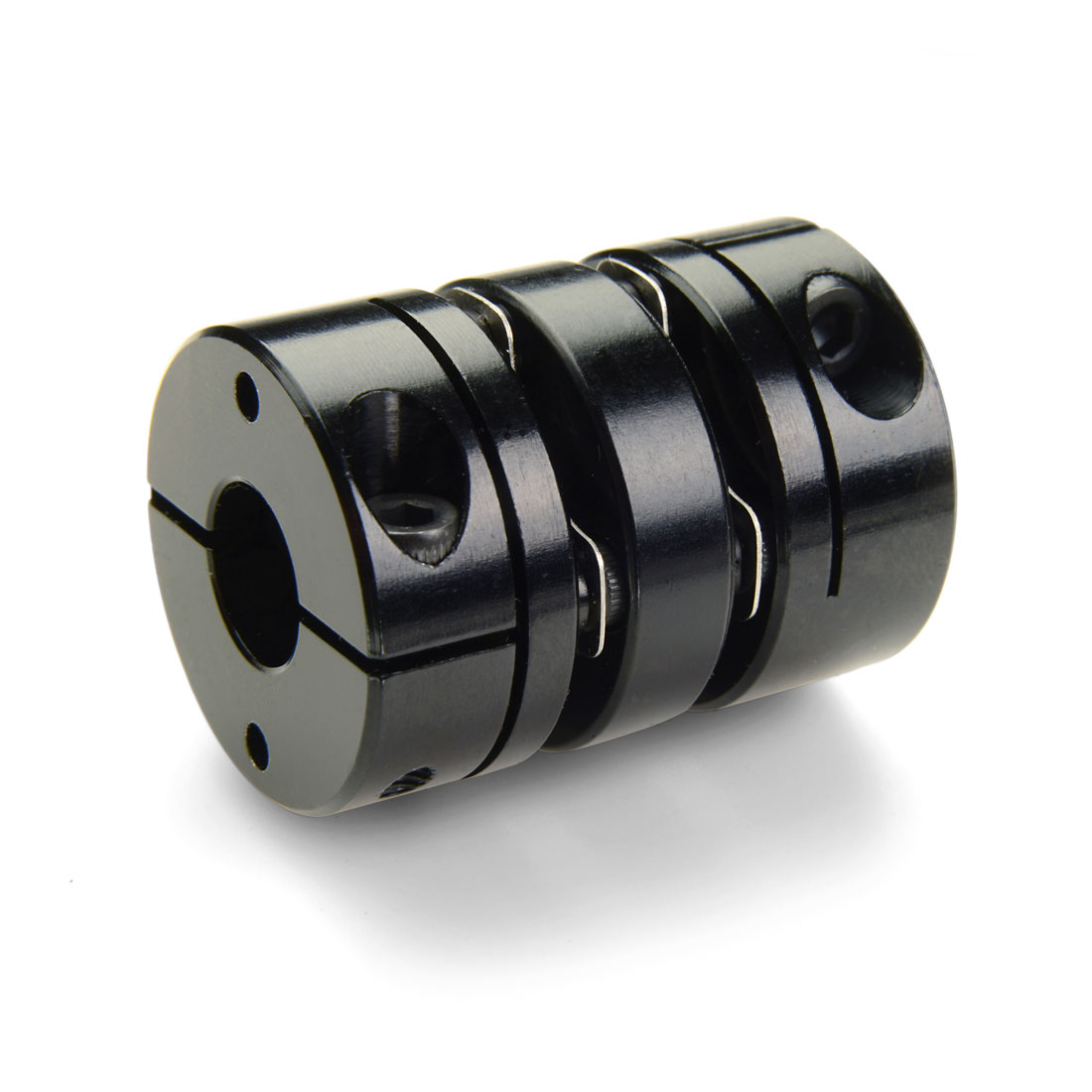

MDCDE41-15-14-A
Manufacturer
Ruland
Description
15mm X 14mm Bores
41.3mm Od, And 55.0mm Length
Electrically Isolating Clamp Double Disc Coupling
Accommodates All Types Of Misalignment
Anodized Aluminum Hubs, Stainless Steel Disc Springs, And An Acetal Center Spacer
41.3mm Od, And 55.0mm Length
Electrically Isolating Clamp Double Disc Coupling
Accommodates All Types Of Misalignment
Anodized Aluminum Hubs, Stainless Steel Disc Springs, And An Acetal Center Spacer
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
UNSPC
31163008
Hex Wrench Size
3.0 mm
Maximum Speed
10000 RPM
Temperature
-10°F to 150°F (-23°C to 65°C)
Country of Origin
USA
Shaft Tolerance
+0.000 mm / -0.013 mm
Balanced Design
Yes
Static Torque
20.3 Nm
Number of Screws
2 ea
Dynamic Torque Non-Reversing
10.15 Nm
Dynamic Torque Reversing
5.08 Nm
Torsional Stiffness
42.4 Nm/Deg
Angular Misalignment
2.0 deg
Parallel Misalignment
0.25 mm
Axial Motion
0.51 mm
Seating Torque
4.6 Nm
Tariff Code
8483.60.8000

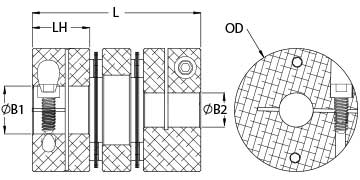

Length (L)
2.165 in (55.0 mm)
B1 Max Shaft Penetration
26.1 mm
Note
Stainless steel hubs are available upon request.
O.D. (D)
1.625 in (41.3 mm)
Material
Aluminum
Bore (B1)
15 mm
Bore (B2)
14 mm
Keyway
No
B2 Max Shaft Penetration
26.1 mm
Conflict Minerals
Compliant
Bore Tolerance
+0.03 mm / -0.00 mm
Screw Material
Alloy Steel
Screw Finish
Black Oxide
Forged Clamp Screw
M4
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Recommended Hex Key
Metric Hex Keys
