MDCDK80-38-35-A
Manufacturer
Ruland
Description
38mm X 35mm Bores
79.4mm Od, And 100.0mm Length
10mm X 10mm Keyways

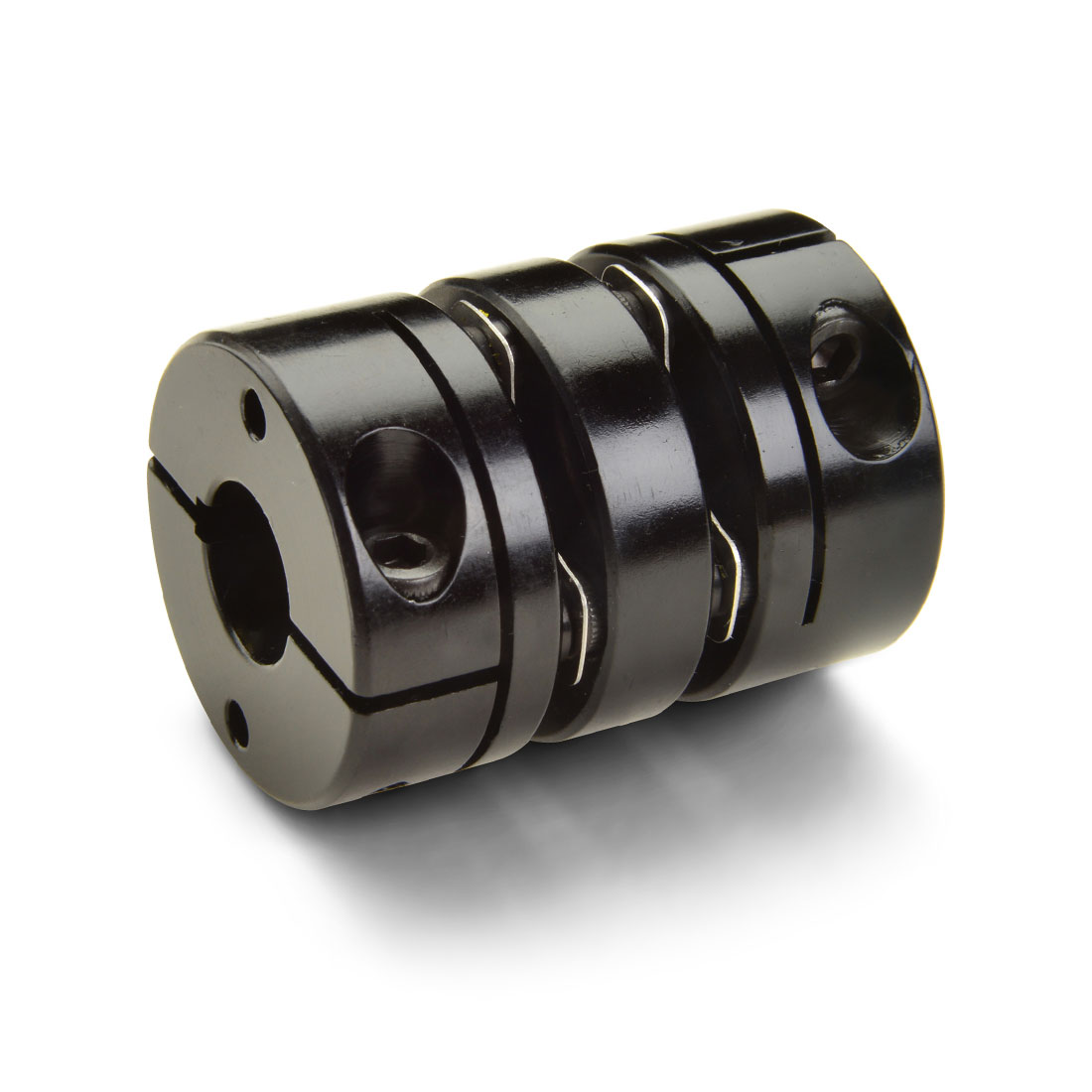

Clamp Double Disc Coupling
Anodized Aluminum Hubs, Stainless Steel Disc Springs, And A Center Spacer
79.4mm Od, And 100.0mm Length
10mm X 10mm Keyways
Clamp Double Disc Coupling
Anodized Aluminum Hubs, Stainless Steel Disc Springs, And A Center Spacer
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Tariff Code
8483.60.8000
Maximum Speed
10000 RPM
Temperature
-40°F to 200°F (-40°C to 93°C)
Country of Origin
USA
Shaft Tolerance
+0.000 mm / -0.013 mm
Balanced Design
Yes
UNSPC
31163008
Number of Screws
2 ea
Dynamic Torque Reversing
32.49 Nm
Dynamic Torque Non-Reversing
64.97 Nm
Torsional Stiffness
282.5 Nm/Deg
Angular Misalignment
2.0 deg
Parallel Misalignment
0.30 mm
Axial Motion
0.76 mm
Recommended Hex Key
Metric Hex Keys
B1 Min Shaft Penetration
22.2 mm
Seating Torque
39 Nm
Hex Wrench Size
6.0 mm
Static Torque
129.93 Nm
Conflict Minerals
Compliant
B2 Max Shaft Penetration
46.8 mm

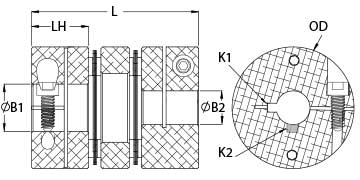

O.D. (D)
3.125 in (79.4 mm)
Material
Aluminum
Bore (B1)
38 mm
Bore (B2)
35 mm
Keyway
Yes
Keyway (K1)
10 mm
B1 Max Shaft Penetration
46.8 mm
Keyway (K2)
10 mm
Length (L)
3.938 in (100.0 mm)
Bore Tolerance
+0.03 mm / -0.00 mm
Screw Material
Alloy Steel
Screw Finish
Black Oxide
Forged Clamp Screw
M8
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Note
Stainless steel hubs are available upon request.
B2 Min Shaft Penetration
22.2 mm
