MDCS51-15-15-A
Manufacturer
Ruland
Description
15mm X 15mm Bores
50.8mm Od, 46.1mm Length

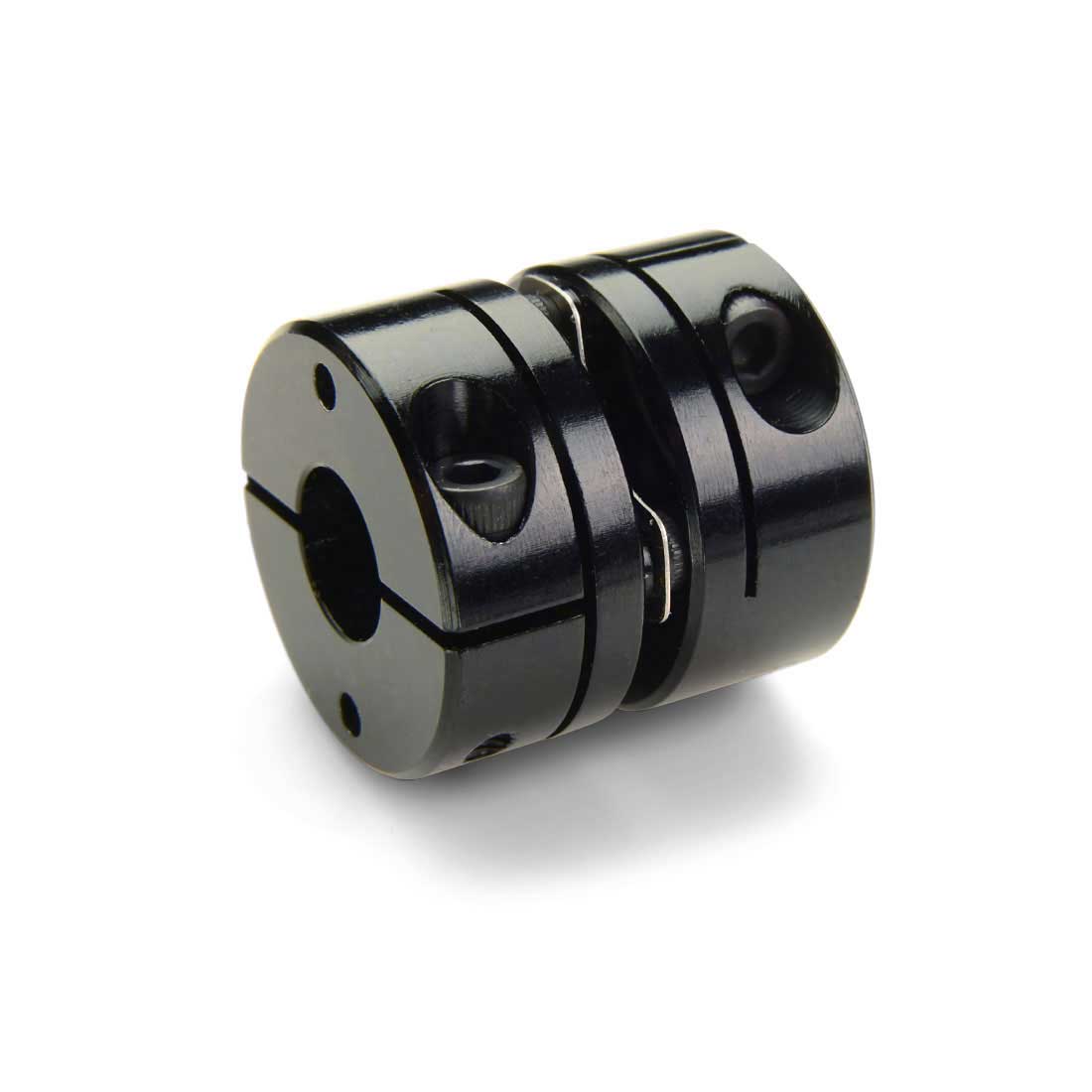

Clamp Single Disc Coupling
Accommodates Angular Misalignment And Axial Motion
Anodized Aluminum Hubs, Stainless Steel Disc Springs
50.8mm Od, 46.1mm Length
Clamp Single Disc Coupling
Accommodates Angular Misalignment And Axial Motion
Anodized Aluminum Hubs, Stainless Steel Disc Springs

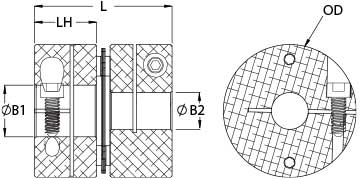

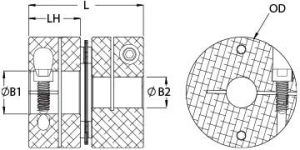

Bore (B1)
15 mm
Bore (B2)
15 mm
O.D. (D)
2.000 in (50.8 mm)
Length (L)
1.813 in (46.1 mm)
This quantity is not fully in stock. Leave your contact details below and we will confirm availability for the remainder.
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
UNSPC
31163008
Hex Wrench Size
4.0 mm
Maximum Speed
10000 RPM
Temperature
-40°F to 200°F (-40°C to 93°C)
Country of Origin
USA
Shaft Tolerance
+0.000 mm / -0.013 mm
Balanced Design
Yes
Static Torque
39.6 Nm
Number of Screws
2 ea
Dynamic Torque Non-Reversing
19.80 Nm
Dynamic Torque Reversing
9.90 Nm
Torsional Stiffness
98.0 Nm/Deg
Angular Misalignment
1.0 deg
Parallel Misalignment
0.00 mm
Axial Motion
0.32 mm
Seating Torque
9.5 Nm
Tariff Code
8483.60.8000
Length (L)
1.813 in (46.1 mm)
B1 Max Shaft Penetration
22.2 mm
Note
Stainless steel hubs are available upon request.
O.D. (D)
2.000 in (50.8 mm)
Material
Aluminum
Bore (B1)
15 mm
Bore (B2)
15 mm
Keyway
No
B2 Max Shaft Penetration
22.2 mm
Conflict Minerals
Compliant
Bore Tolerance
+0.03 mm / -0.00 mm
Screw Material
Alloy Steel
Screw Finish
Black Oxide
Forged Clamp Screw
M5
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Recommended Hex Key
Metric Hex Keys
