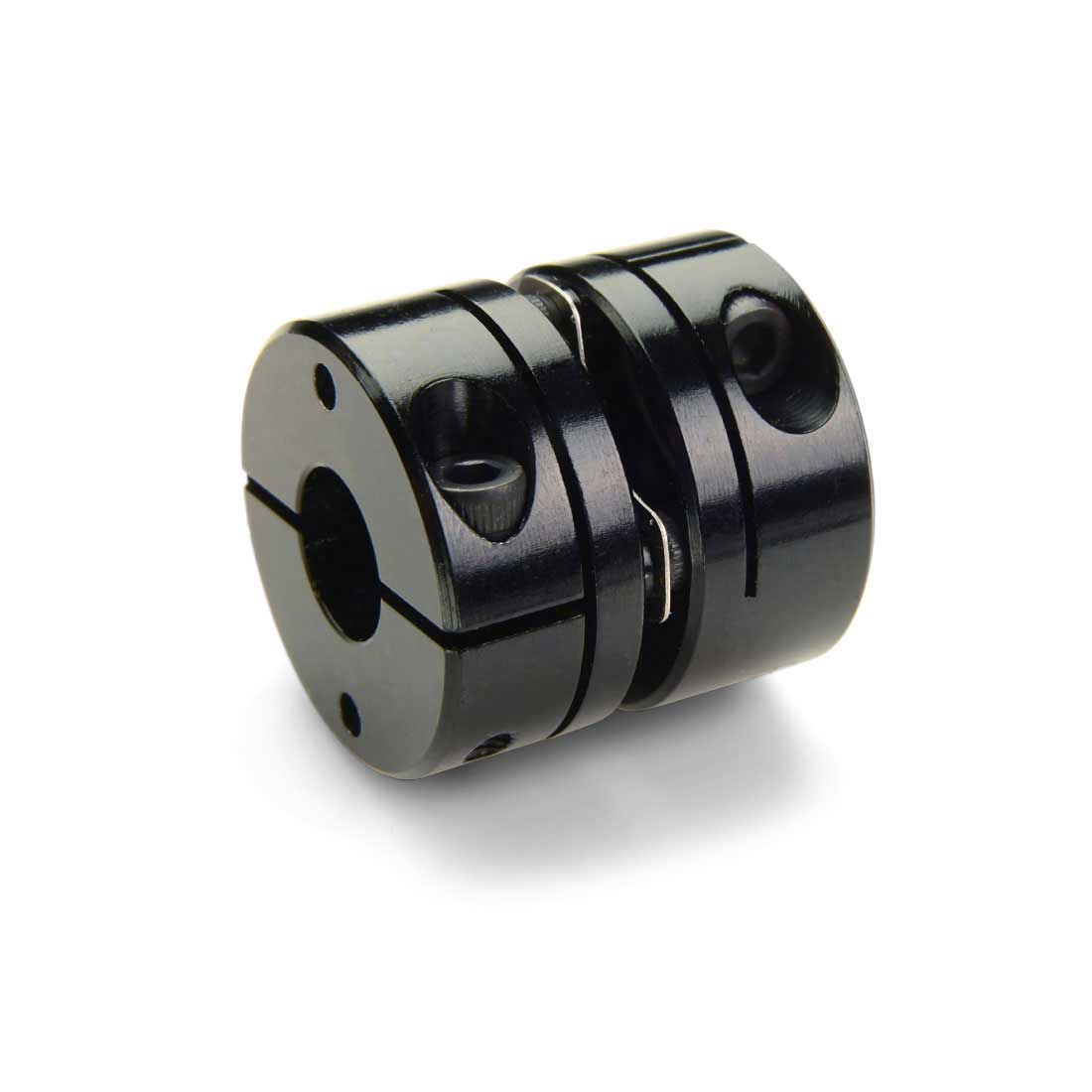

MDCS57-19-16-A
Manufacturer
Ruland
Description
19mm X 16mm Bores
57.2mm Od, 58.8mm Length
Clamp Single Disc Coupling
Accommodates Angular Misalignment And Axial Motion
Anodized Aluminum Hubs, Stainless Steel Disc Springs
57.2mm Od, 58.8mm Length
Clamp Single Disc Coupling
Accommodates Angular Misalignment And Axial Motion
Anodized Aluminum Hubs, Stainless Steel Disc Springs
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
UNSPC
31163008
Hex Wrench Size
5.0 mm
Maximum Speed
10000 RPM
Temperature
-40°F to 200°F (-40°C to 93°C)
Country of Origin
USA
Shaft Tolerance
+0.000 mm / -0.013 mm
Balanced Design
Yes
Static Torque
50.9 Nm
Number of Screws
2 ea
Dynamic Torque Non-Reversing
25.45 Nm
Dynamic Torque Reversing
12.73 Nm
Torsional Stiffness
113.0 Nm/Deg
Angular Misalignment
1.0 deg
Parallel Misalignment
0.00 mm
Axial Motion
0.38 mm
Seating Torque
16 Nm
Tariff Code
8483.60.8000

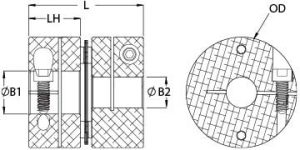

Length (L)
2.313 in (58.8 mm)
B1 Max Shaft Penetration
27.6 mm
Note
Stainless steel hubs are available upon request.
O.D. (D)
2.250 in (57.2 mm)
Material
Aluminum
Bore (B1)
19 mm
Bore (B2)
16 mm
Keyway
No
B2 Max Shaft Penetration
27.6 mm
Conflict Minerals
Compliant
Bore Tolerance
+0.03 mm / -0.00 mm
Screw Material
Alloy Steel
Screw Finish
Black Oxide
Forged Clamp Screw
M6
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Recommended Hex Key
Metric Hex Keys
