MDCSK41-18-12-A
Manufacturer
Ruland
Description
18mm X 12mm Bores
41.3mm Od, 39.7mm Length
6mm X 4mm Keyways

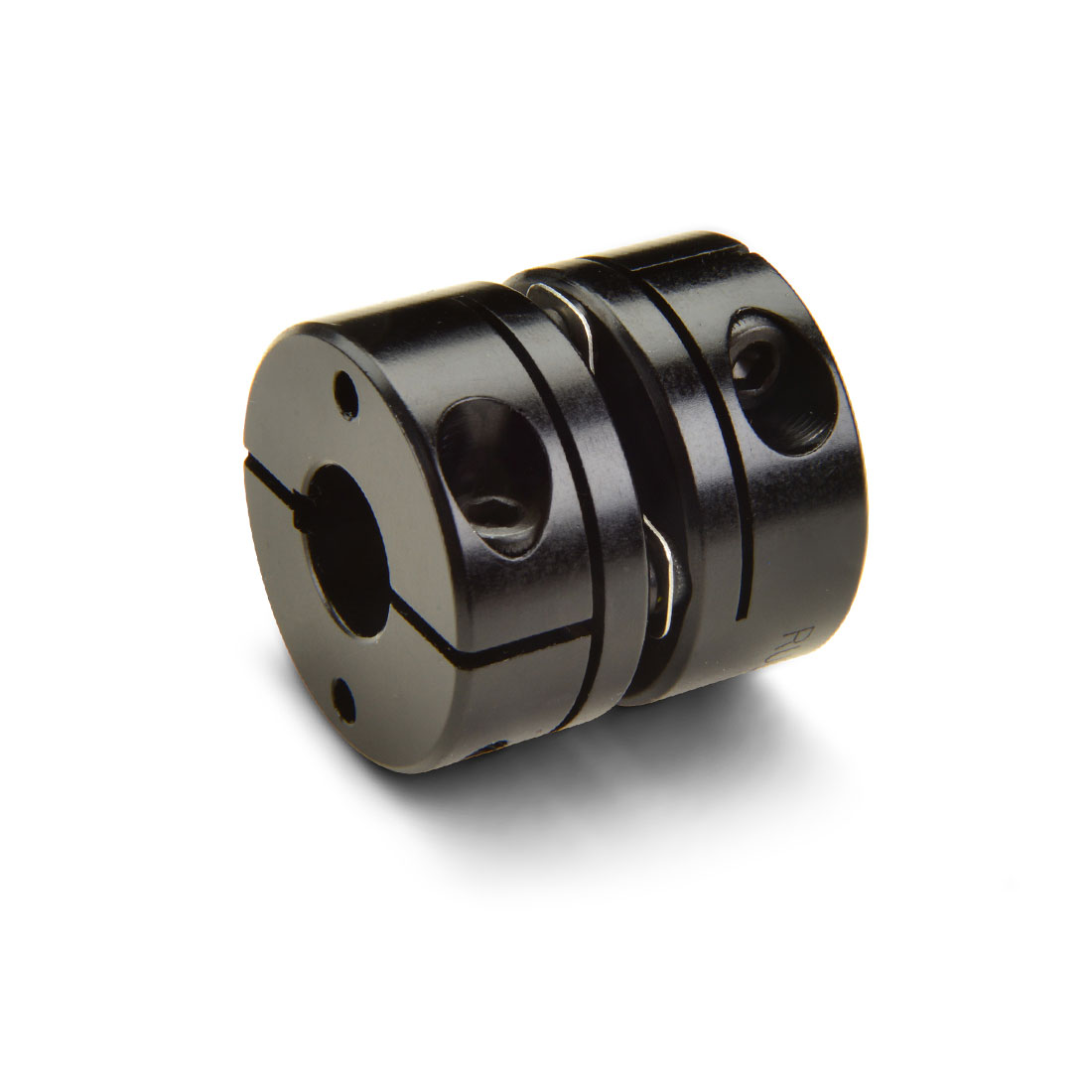

Clamp Single Disc Coupling
Anodized Aluminum Hubs, Stainless Steel Disc Springs
41.3mm Od, 39.7mm Length
6mm X 4mm Keyways
Clamp Single Disc Coupling
Anodized Aluminum Hubs, Stainless Steel Disc Springs
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Static Torque
20.3 Nm
Hex Wrench Size
3.0 mm
Maximum Speed
10000 RPM
Temperature
-40°F to 200°F (-40°C to 93°C)
Country of Origin
USA
Shaft Tolerance
+0.000 mm / -0.013 mm
UNSPC
31163008
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Dynamic Torque Non-Reversing
10.15 Nm
Dynamic Torque Reversing
5.08 Nm
Torsional Stiffness
70.6 Nm/Deg
Angular Misalignment
1.0 deg
Parallel Misalignment
0.00 mm
Axial Motion
0.25 mm
Number of Screws
2 ea
Seating Torque
4.6 Nm
Balanced Design
Yes
B1 Max Shaft Penetration
19.2 mm
Keyway (K2)
4 mm
O.D. (D)
1.625 in (41.3 mm)
Material
Aluminum
Bore (B1)
18 mm
Bore (B2)
12 mm
Keyway
Yes
Keyway (K1)
6 mm
RoHS3
Compliant
B2 Max Shaft Penetration
19.2 mm
Length (L)
1.563 in (39.7 mm)
Bore Tolerance
+0.03 mm / -0.00 mm
Screw Material
Alloy Steel
Screw Finish
Black Oxide
Forged Clamp Screw
M4
ISO 9001:2015
Certified
REACH
Compliant
Note
Stainless steel hubs are available upon request.
Recommended Hex Key
Metric Hex Keys
