MRLC16-6-3-A
Manufacturer
Ruland
Description

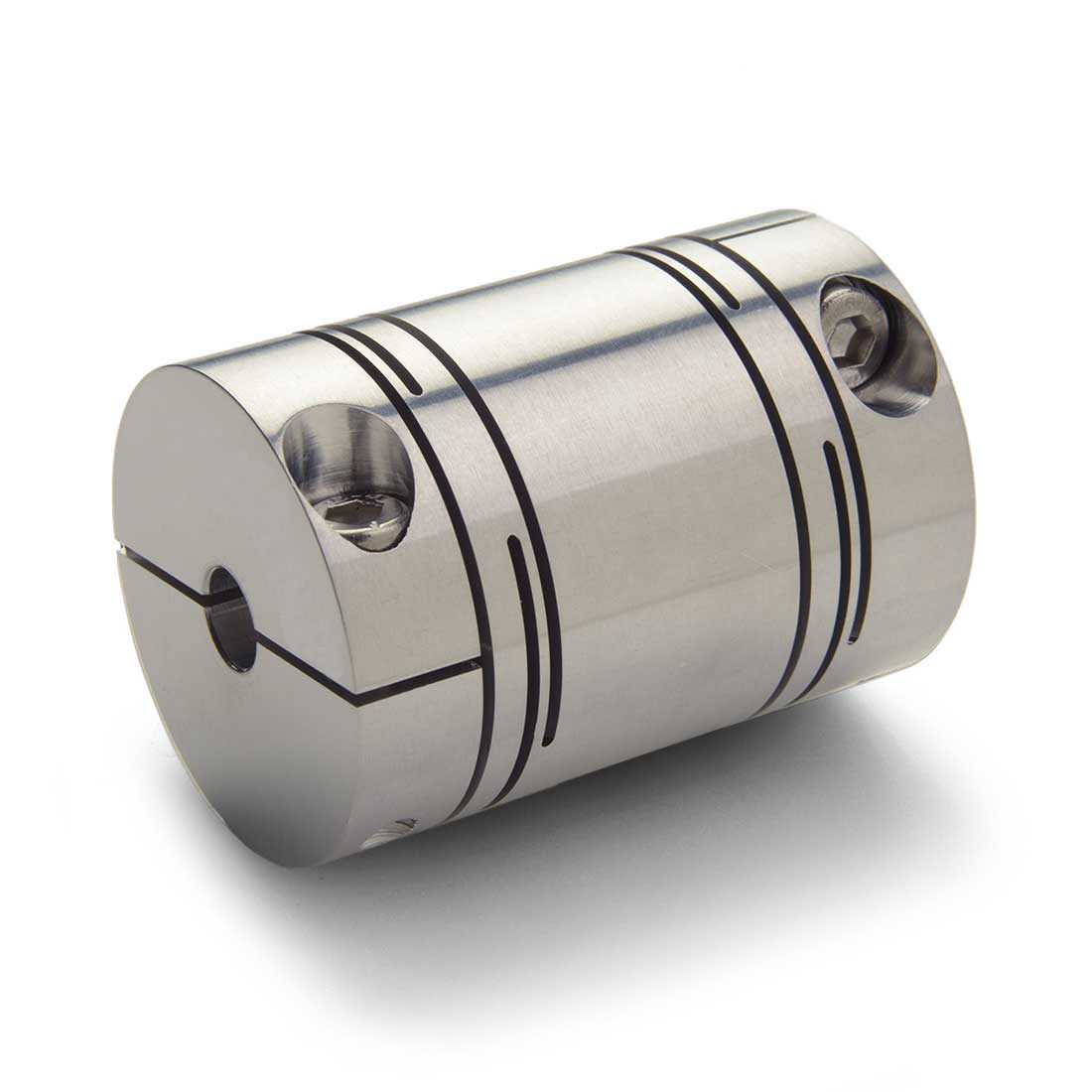

6mm X 3mm Long Slit Coupling
16.0mm Od
23.5mm Length
Aluminum
Clamp Style
16.0mm Od
23.5mm Length
Aluminum
Clamp Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Hex Wrench Size
1.5 mm
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163003
Clearance Diameter (C) MAX
18.0 mm
Cap Screw
M2
Maximum Speed
10000 RPM
Torsional Stiffness
1.4 Nm/Deg
Dynamic Torque Reversing
0.55 Nm
Angular Misalignment
2.5 deg
Parallel Misalignment
0.20 mm
Axial Motion
0.40 mm
Peak Torque
1.25 Nm
Moment of Inertia
0.0012183 lb-in²
Country of Origin
Ireland
Finish Specification
SurTec 650
Dynamic Torque Non-Reversing
0.85 Nm
Seating Torque
0.36 Nm
Screw Finish
Bright
Material
Aluminum
Bore (B1)
6 mm
Bore (B2)
3 mm
B1 Max Shaft Penetration
7.9 mm
B2 Max Shaft Penetration
7.9 mm
Screw Material
18-8 300 Series Stainless Steel
Bore Tolerance
+0.020 mm / +0.000 mm
Length (L)
23.5 mm
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Number of Screws
2
O.D. (D)
16 mm
Material Specification
7075-T651 Bar
