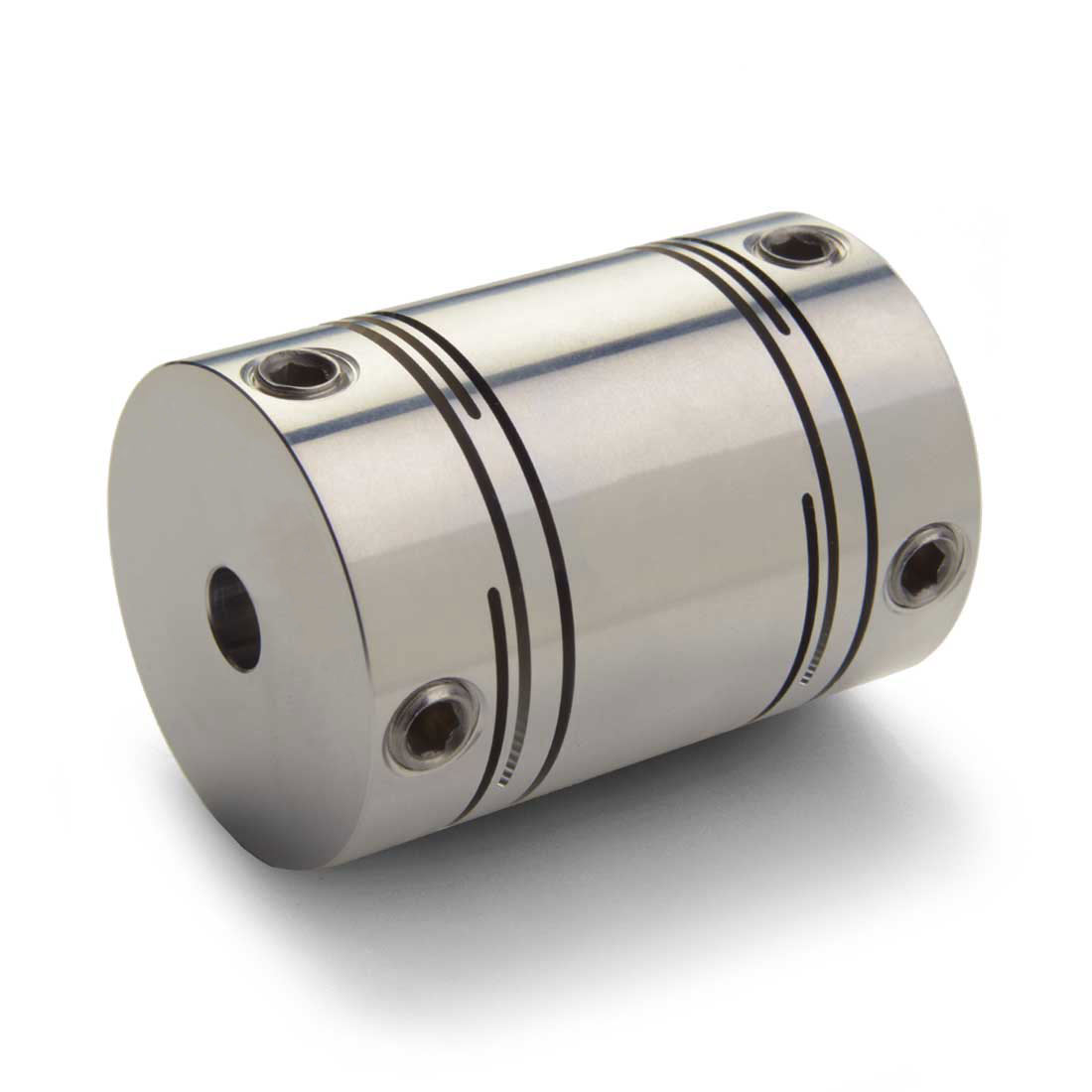

MRLS16-8-7-A
Manufacturer
Ruland
Description
8 Mm X 7 Mm Long Slit Coupling
16.0mm Od
23.5mm Length
Aluminum
Set Screw Style
16.0mm Od
23.5mm Length
Aluminum
Set Screw Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Hex Wrench Size
1.5 mm
Country of Origin
Ireland
Finish Specification
SurTec 650
Zero-Backlash?
Yes
Forged Set Screw
M3
Balanced Design
Yes
UNSPC
31163003
Maximum Speed
17000 RPM
Dynamic Torque Non-Reversing
1.15 Nm
Torsional Stiffness
1.4 Nm/Deg
Angular Misalignment
2.5 deg
Parallel Misalignment
0.20 mm
Axial Motion
0.40 mm
Peak Torque
1.90 Nm
Moment of Inertia
0.0011805 lb-in²
Dynamic Torque Reversing
0.75 Nm
Seating Torque
0.73 Nm
Screw Material
18-8 300 Series Stainless Steel
Number of Screws
4

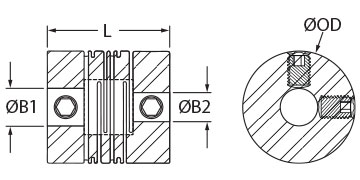

O.D. (D)
16 mm
Material
Aluminum
Bore (B1)
8 mm
Bore (B2)
7 mm
B1 Max Shaft Penetration
7.9 mm
B2 Max Shaft Penetration
7.9 mm
Length (L)
23.5 mm
Bore Tolerance
+0.020 mm / +0.000 mm
Screw Finish
Bright
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Material Specification
7075-T651 Bar
