MRSC20-10-10-A
Manufacturer
Ruland
Description

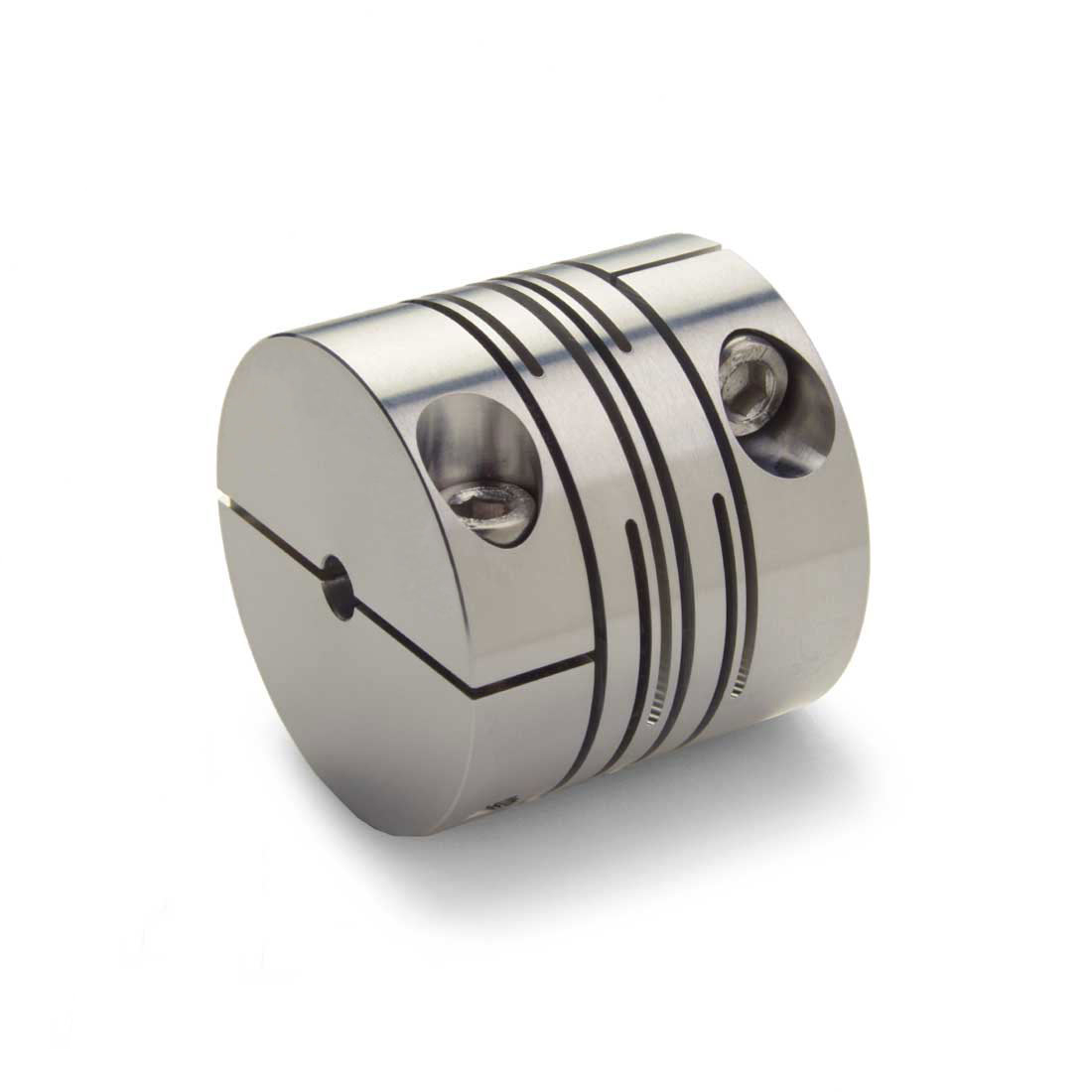

10mm X 10mm Short Slit Coupling
20.0mm Od
21.5mm Length
Aluminum
Clamp Style
20.0mm Od
21.5mm Length
Aluminum
Clamp Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Hex Wrench Size
2.0 mm
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163003
Clearance Diameter (C) MAX
21.8 mm
Cap Screw
M2.5
Maximum Speed
7500 RPM
Torsional Stiffness
1.9 Nm/Deg
Dynamic Torque Reversing
0.95 Nm
Angular Misalignment
3.0 deg
Parallel Misalignment
0.12 mm
Axial Motion
0.50 mm
Peak Torque
2.45 Nm
Moment of Inertia
0.0025716 lb-in²
Country of Origin
Ireland
Finish Specification
SurTec 650
Dynamic Torque Non-Reversing
1.45 Nm
Seating Torque
0.73 Nm
Screw Finish
Bright
Material
Aluminum
Bore (B1)
10 mm
Bore (B2)
10 mm
B1 Max Shaft Penetration
8.6 mm
B2 Max Shaft Penetration
8.6 mm
Screw Material
18-8 300 Series Stainless Steel
Bore Tolerance
+0.020 mm / +0.000 mm
Length (L)
21.5 mm
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Number of Screws
2
O.D. (D)
20 mm
Material Specification
7075-T651 Bar
