MRSC20-10-4-A
Manufacturer
Ruland
Description

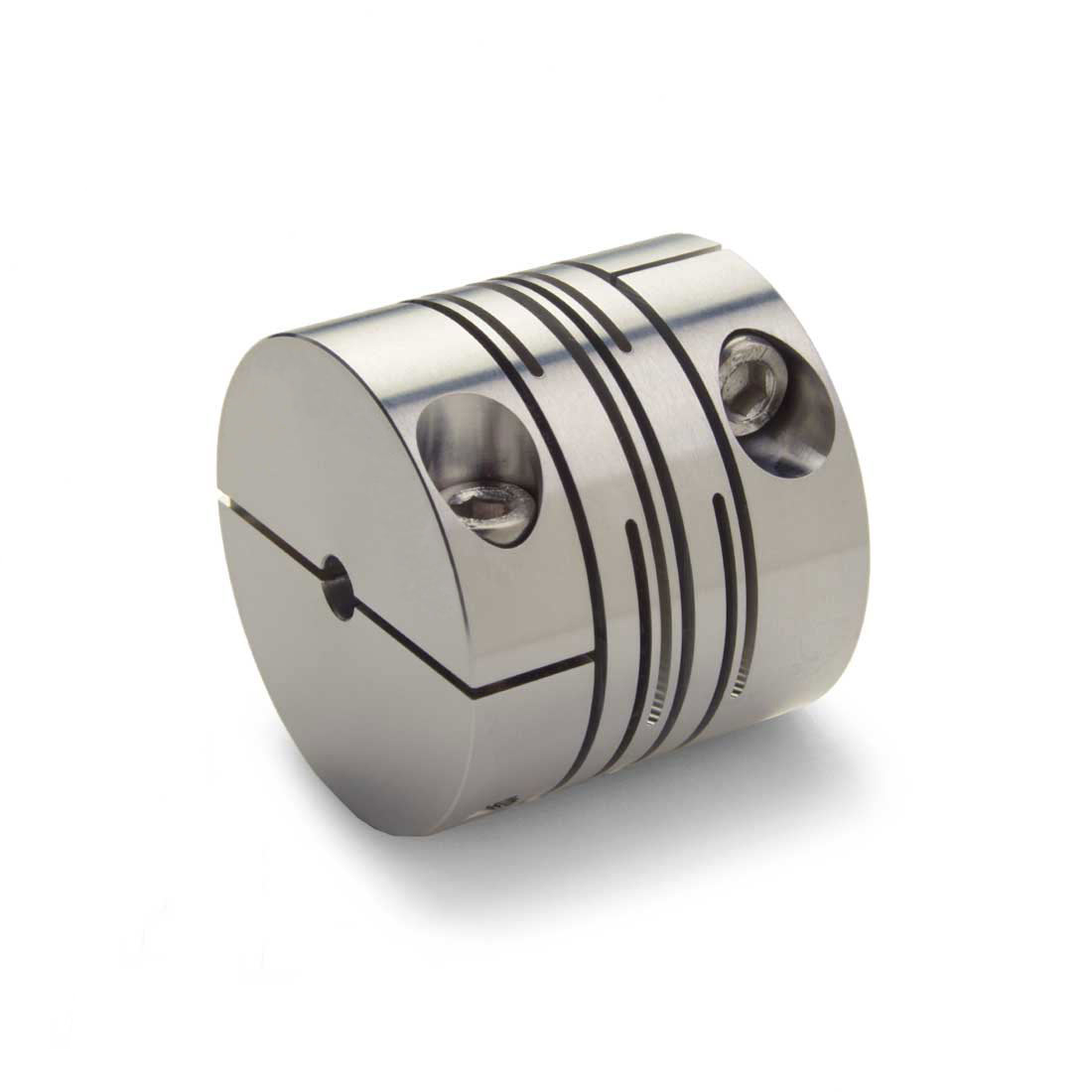

10mm X 4mm Short Slit Coupling
20.0mm Od
21.5mm Length
Aluminum
Clamp Style
20.0mm Od
21.5mm Length
Aluminum
Clamp Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Hex Wrench Size
2.0 mm
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163003

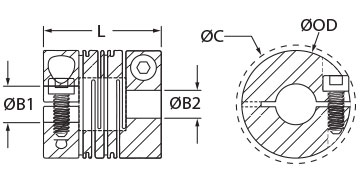

Clearance Diameter (C) MAX
21.8 mm
Cap Screw
M2.5
Maximum Speed
7500 RPM
Torsional Stiffness
1.9 Nm/Deg
Dynamic Torque Reversing
0.95 Nm
Angular Misalignment
3.0 deg
Parallel Misalignment
0.12 mm
Axial Motion
0.50 mm
Peak Torque
2.45 Nm
Moment of Inertia
0.0026321 lb-in²
Country of Origin
Ireland
Finish Specification
SurTec 650
Dynamic Torque Non-Reversing
1.45 Nm
Seating Torque
0.73 Nm
Screw Finish
Bright
Material
Aluminum
Bore (B1)
10 mm
Bore (B2)
4 mm
B1 Max Shaft Penetration
8.6 mm
B2 Max Shaft Penetration
8.6 mm
Screw Material
18-8 300 Series Stainless Steel
Bore Tolerance
+0.020 mm / +0.000 mm
Length (L)
21.5 mm
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Number of Screws
2
O.D. (D)
20 mm
Material Specification
7075-T651 Bar
