MRSS20-5-5-A
Manufacturer
Ruland
Description

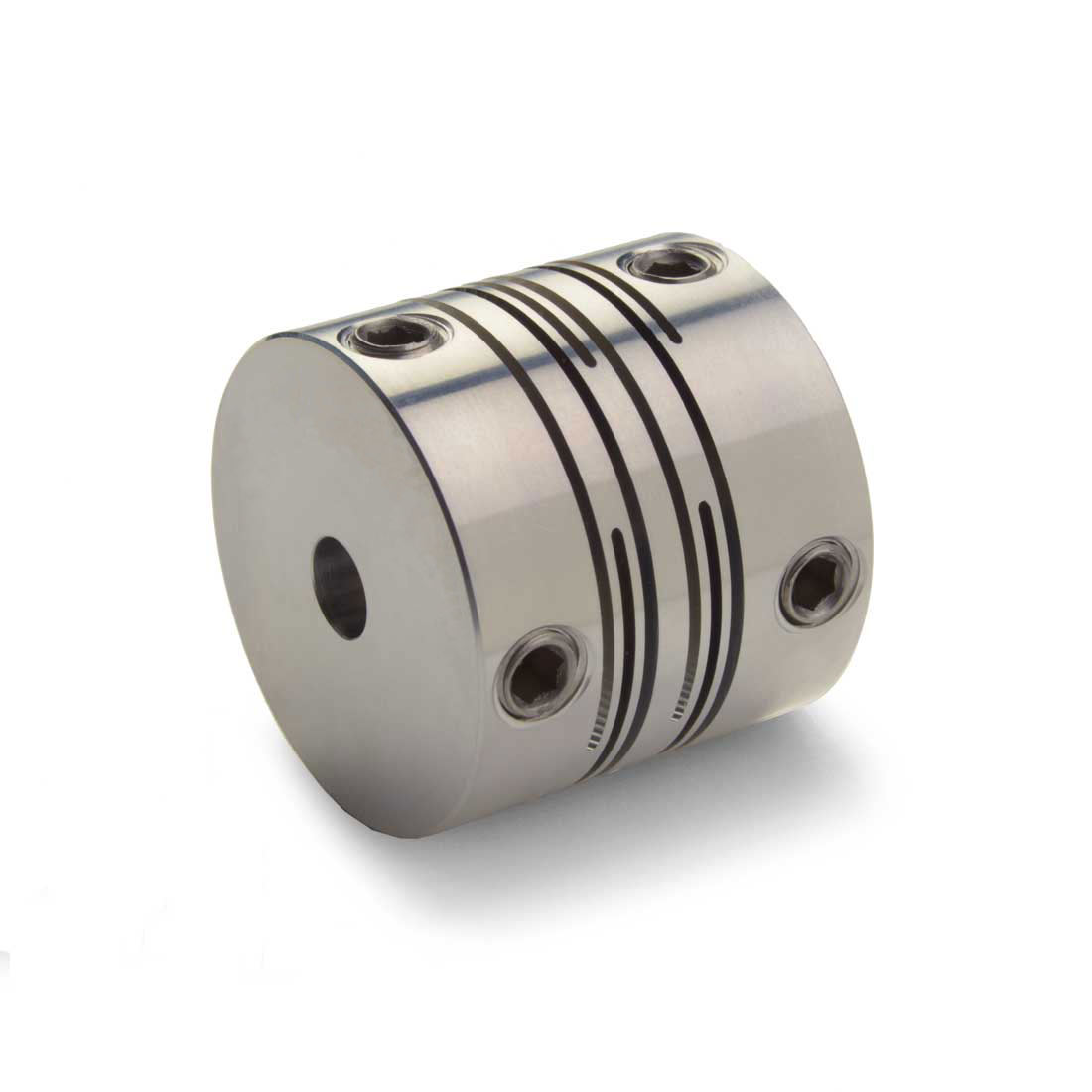

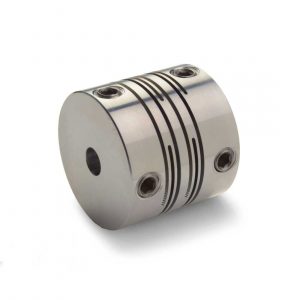

5mm X 5mm Short Slit Coupling
20.0mm Od
21.5mm Length
Aluminum
Set Screw Style
20.0mm Od
21.5mm Length
Aluminum
Set Screw Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Hex Wrench Size
2.0 mm
Country of Origin
Ireland
Finish Specification
SurTec 650
Zero-Backlash?
Yes
Forged Set Screw
M4
Balanced Design
Yes
UNSPC
31163003
Maximum Speed
20000 RPM
Dynamic Torque Non-Reversing
1.95 Nm
Torsional Stiffness
1.9 Nm/Deg
Angular Misalignment
3.0 deg
Parallel Misalignment
0.12 mm
Axial Motion
0.50 mm
Peak Torque
3.25 Nm
Moment of Inertia
0.0027517 lb-in²
Dynamic Torque Reversing
1.30 Nm
Seating Torque
1.76 Nm
Screw Material
18-8 300 Series Stainless Steel
Number of Screws
4

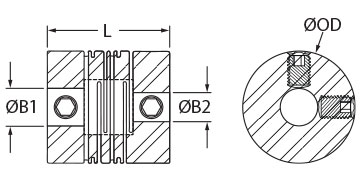

O.D. (D)
20 mm
Material
Aluminum
Bore (B1)
5 mm
Bore (B2)
5 mm
B1 Max Shaft Penetration
8.6 mm
B2 Max Shaft Penetration
8.6 mm
Length (L)
21.5 mm
Bore Tolerance
+0.020 mm / +0.000 mm
Screw Finish
Bright
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Material Specification
7075-T651 Bar
