MRSS8-3-2-A
Manufacturer
Ruland
Description

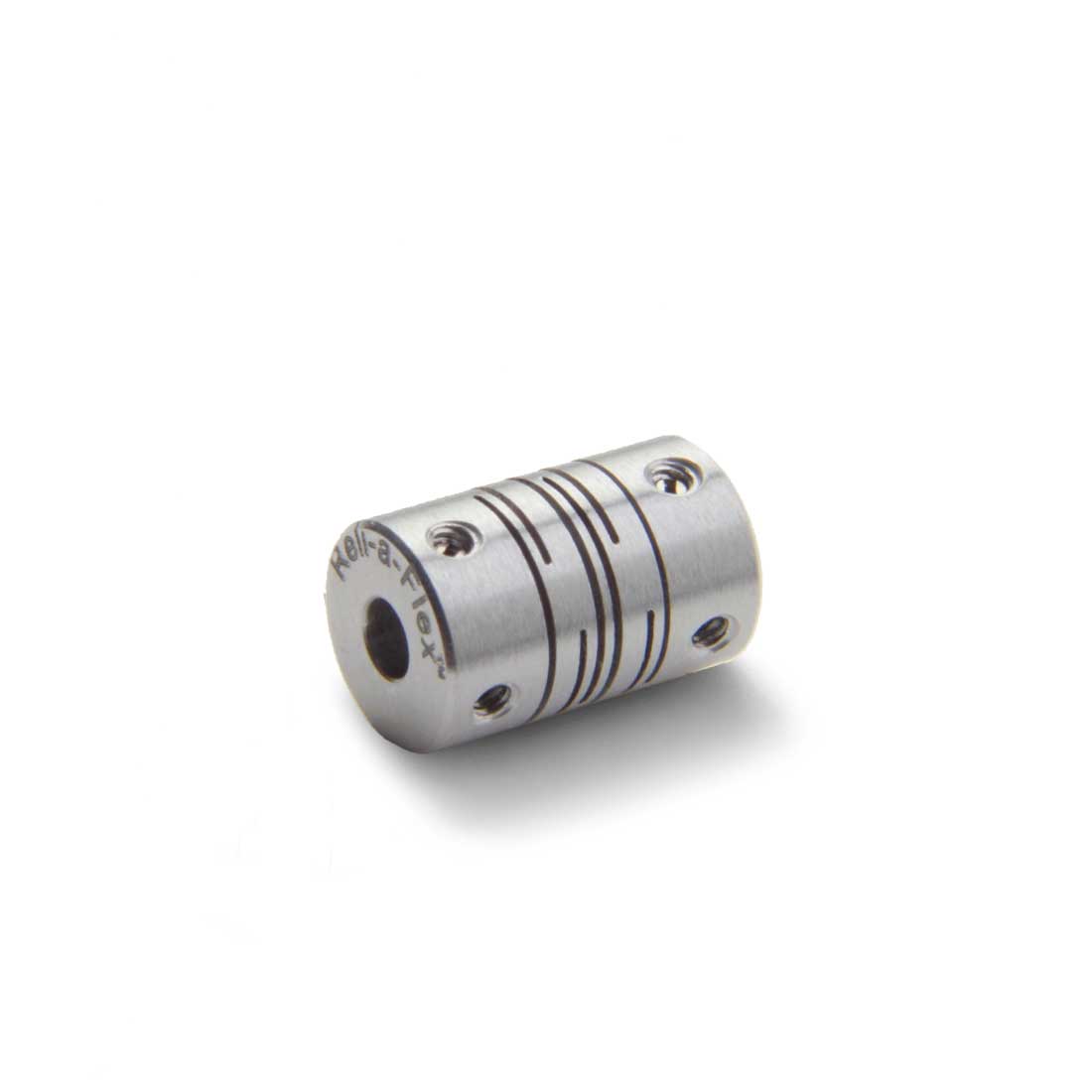

3mm X 2mm Short Slit Coupling
8.0mm Od
11.7mm Length
Aluminum
Set Screw Style
8.0mm Od
11.7mm Length
Aluminum
Set Screw Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Dynamic Torque Reversing
0.20 Nm
Country of Origin
Ireland
Finish Specification
SurTec 650
Zero-Backlash?
Yes
Forged Set Screw
M1.6
Balanced Design
Yes
UNSPC
31163003
Hex Wrench Size
0.7 mm
Dynamic Torque Non-Reversing
0.30 Nm
Torsional Stiffness
0.2 Nm/Deg
Angular Misalignment
2.0 deg
Parallel Misalignment
0.05 mm
Axial Motion
0.10 mm
Peak Torque
0.50 Nm
Moment of Inertia
0.0000384 lb-in²
Maximum Speed
40000 RPM
Bore Tolerance
+0.010 mm / -0.000 mm
Number of Screws
4
Tariff Code
8483.60.8000
Conflict Minerals
Compliant
RoHS3
Compliant
REACH
Compliant
ISO 9001:2015
Certified
Screw Finish
Bright
Screw Material
18-8 300 Series Stainless Steel

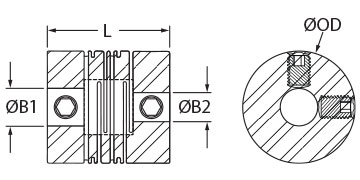

Length (L)
11.7 mm
B2 Max Shaft Penetration
5.2 mm
B1 Max Shaft Penetration
5.2 mm
Bore (B2)
2 mm
Bore (B1)
3 mm
Material
Aluminum
O.D. (D)
8 mm
Material Specification
7075-T651 Bar
