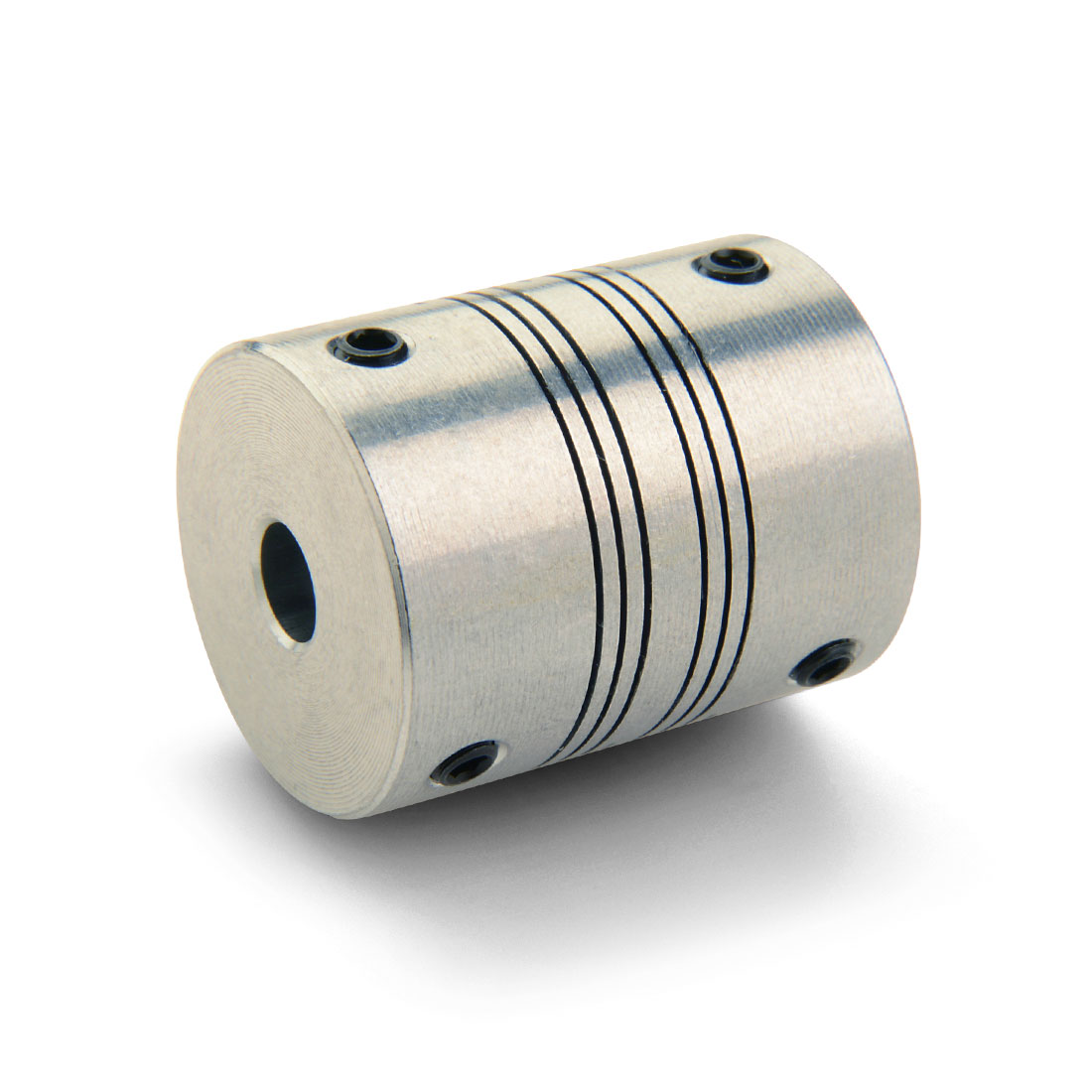

MWS15-1/8″-1/8″-A
Manufacturer
Ruland
Description
1/8" X 1/8" Bores
0.590" (15.0mm) Od 0.787" (20.0mm) Length
Four Beam Coupling
Aluminum Set Screw Style
0.590" (15.0mm) Od 0.787" (20.0mm) Length
Four Beam Coupling
Aluminum Set Screw Style

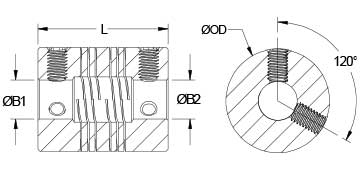

Bore (B1)
0.1250 in
Bore (B2)
0.1250 in
O.D. (D)
0.590 in (15.0 mm)
Length (L)
0.787 in (20.0 mm)
This quantity is not fully in stock. Leave your contact details below and we will confirm availability for the remainder.
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Forged Set Screw
M3
Maximum Speed
6000 RPM
Temperature
-40°F to 225°F (-40°C to 107°C)
Country of Origin
USA
Product Group
4 Beam Couplings Set Screw
Shaft Tolerance
+0.0000 in / -0.0005 in
Zero-Backlash?
Yes
UNSPC
31163003
Seating Torque
0.92 Nm
Static Torque
0.85 Nm
Dynamic Torque Non-Reversing
0.43 Nm
Dynamic Torque Reversing
0.21 Nm
Torsional Stiffness
4.44 Deg/Nm
Angular Misalignment
3.0 deg
Parallel Misalignment
0.20 mm
Hex Wrench Size
1.5 mm
Number of Screws
4 ea
Length (L)
0.787 in (20.0 mm)
B2 Max Shaft Penetration
0.378 in (9.6 mm)
O.D. (D)
0.590 in (15.0 mm)
Material
Aluminum
Bore (B1)
0.1250 in
Bore (B2)
0.1250 in
Keyway
No
B1 Max Shaft Penetration
0.378 in (9.6 mm)
Bore Tolerance
+0.001 in / -0.000 in (+0.025 mm / -0.000 mm)
Tariff Code
8483.60.8000
Screw Material
Alloy Steel
Screw Finish
Black Oxide
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Axial Motion
0.13 mm
