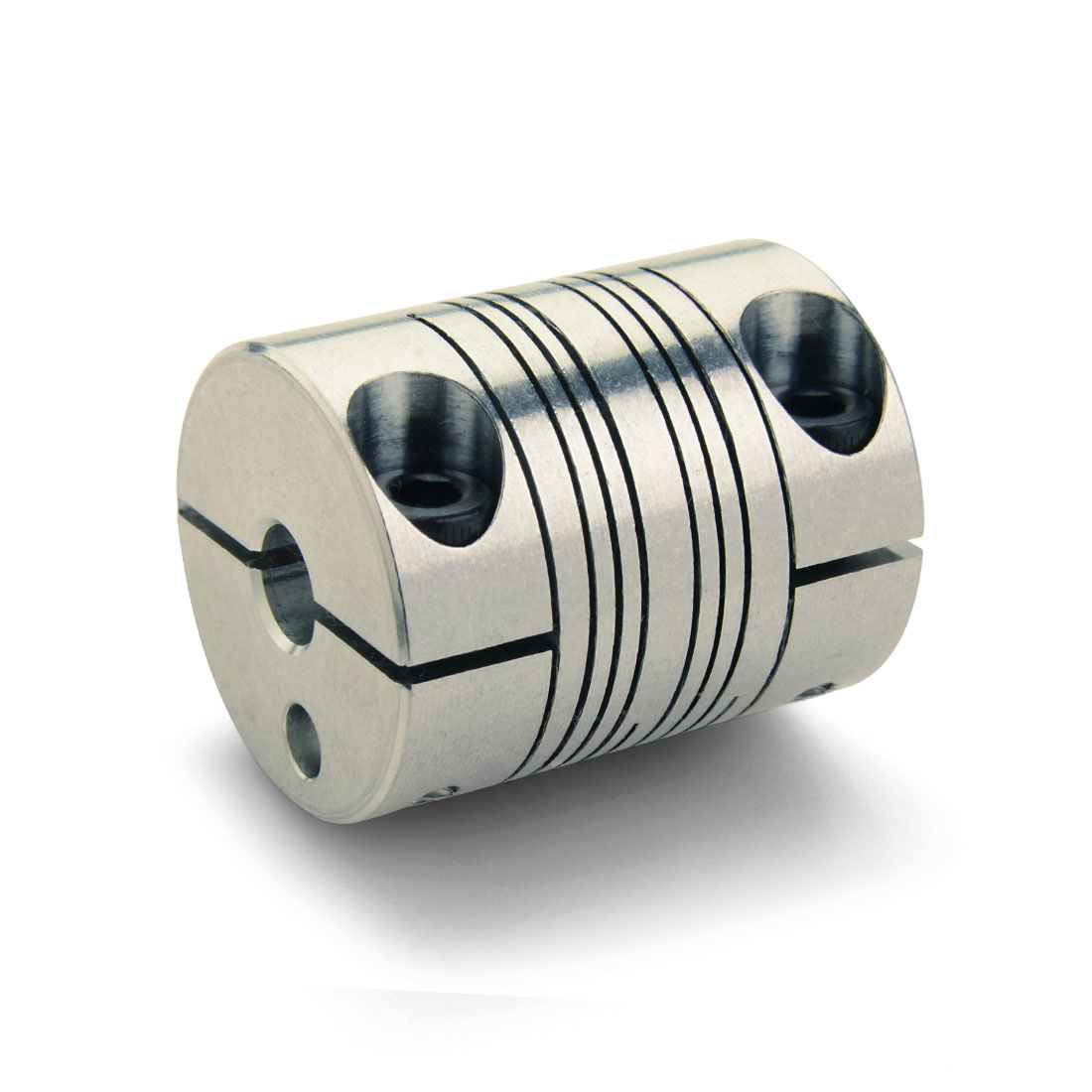

PCMR10-3-3-A
Manufacturer
Ruland
Description
3mm X 3mm Bores
9.5mm Od, 14.3mm Length
Four Beam Coupling
Aluminum Clamp Style
9.5mm Od, 14.3mm Length
Four Beam Coupling
Aluminum Clamp Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Seating Torque
0.29 Nm
Parallel Misalignment
0.20 mm
Angular Misalignment
3.0 deg
Torsional Stiffness
11.83 Deg/Nm
Dynamic Torque Reversing
0.16 Nm
Dynamic Torque Non-Reversing
0.31 Nm
Static Torque
0.62 Nm
Cap Screw
M1.6
UNSPC
31163003
Shaft Tolerance
+0.000 mm / -0.013 mm
Product Group
P-Series 4 Beam Couplings Clamp
Country of Origin
USA
Temperature
-40°F to 225°F (-40°C to 107°C)
Maximum Speed
6000 RPM
Hex Wrench Size
1.5 mm
Number of Screws
2 ea
O.D. (D)
0.375 in (9.5 mm)
Tariff Code
8483.60.8000
Conflict Minerals
Compliant
RoHS3
Compliant
REACH
Compliant
ISO 9001:2015
Certified
Screw Finish
Black Oxide
Screw Material
Alloy Steel
Bore Tolerance
+0.025 mm / -0.000 mm
B2 Max Shaft Penetration
6.7 mm
B1 Max Shaft Penetration
6.7 mm
Keyway
No
Bore (B2)
3 mm
Bore (B1)
3 mm
Material
Aluminum
Axial Motion
0.13 mm
