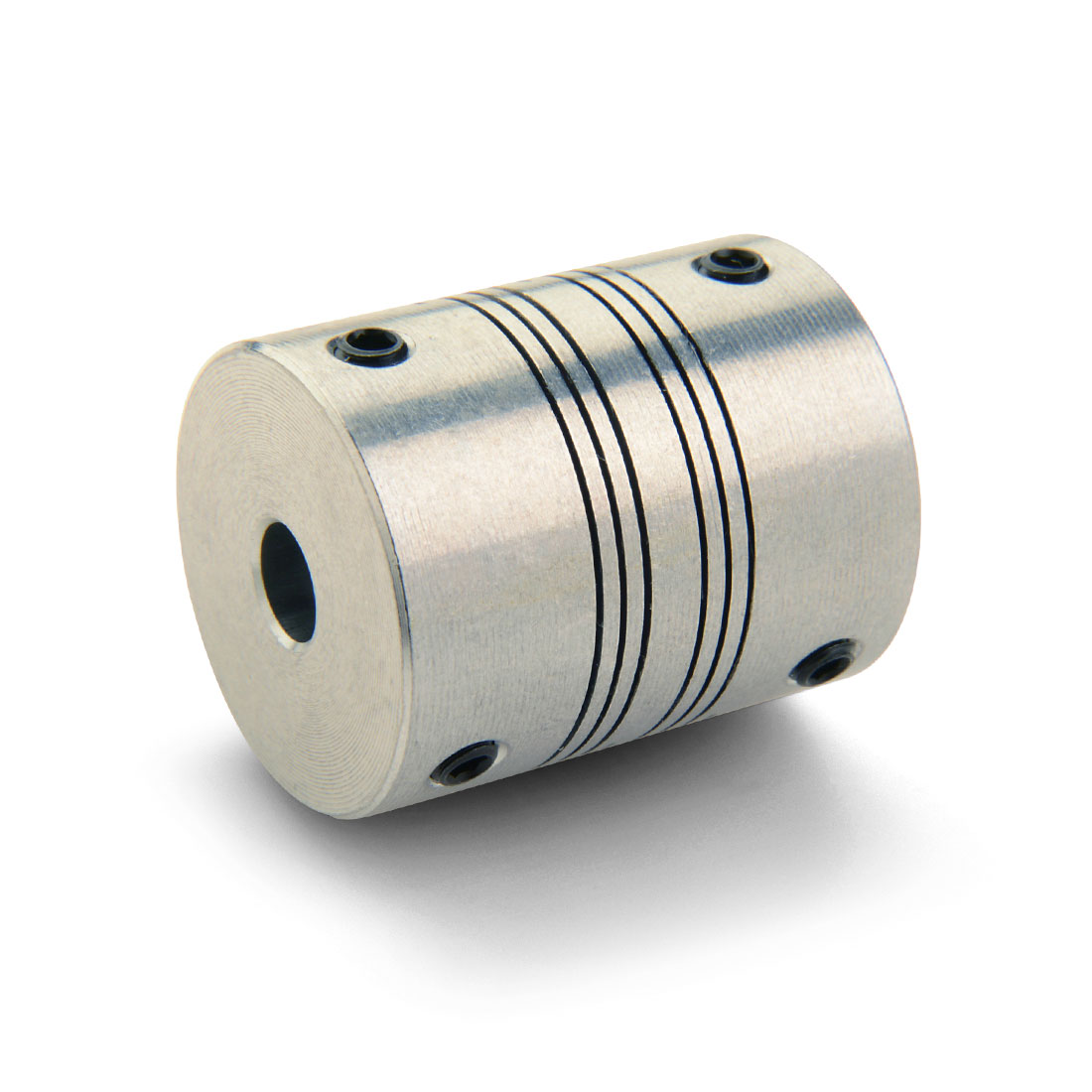

PSR6-3MM-3/32″-A
Manufacturer
Ruland
Description
3mm X 3/32" Bores
0.375" Od, 0.563" Length
Four Beam Coupling
Aluminum Set Screw Style
0.375" Od, 0.563" Length
Four Beam Coupling
Aluminum Set Screw Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Seating Torque
0.21 Nm
Parallel Misalignment
0.008 in (0.20 mm)
Angular Misalignment
3.0 deg
Torsional Stiffness
1.337 Deg/lb-in (11.83 Deg/Nm)
Dynamic Torque Reversing
1.4 lb-in (0.16 Nm)
Dynamic Torque Non-Reversing
2.7 lb-in (0.31 Nm)
Static Torque
5.5 lb-in (0.62 Nm)
UNSPC
31163003
Forged Set Screw
M2
Shaft Tolerance
+0.0000 in / -0.0005 in +0.000 mm / -0.013 mm
Product Group
P-Series 4 Beam Couplings Set Screw
Country of Origin
USA
Temperature
-40°F to 225°F (-40°C to 107°C)
Maximum Speed
6000 RPM
Hex Wrench Size
0.9 mm
Number of Screws
4 ea
O.D. (D)
0.375 in (9.5 mm)
Tariff Code
8483.60.8000
Conflict Minerals
Compliant
RoHS3
Compliant
REACH
Compliant
ISO 9001:2015
Certified
Screw Finish
Black Oxide
Screw Material
Alloy Steel
Bore Tolerance
+0.001 in / -0.000 in (+0.025 mm / -0.000 mm)
B2 Max Shaft Penetration
0.265 in (6.7 mm)
B1 Max Shaft Penetration
0.265 in (6.7 mm)
Keyway
No
Bore (B2)
0.0938 in
Bore (B1)
3 mm
Material
Aluminum
Axial Motion
0.005 in (0.13 mm)
