RLC10-3/16″-3MM-A
Manufacturer
Ruland
Description

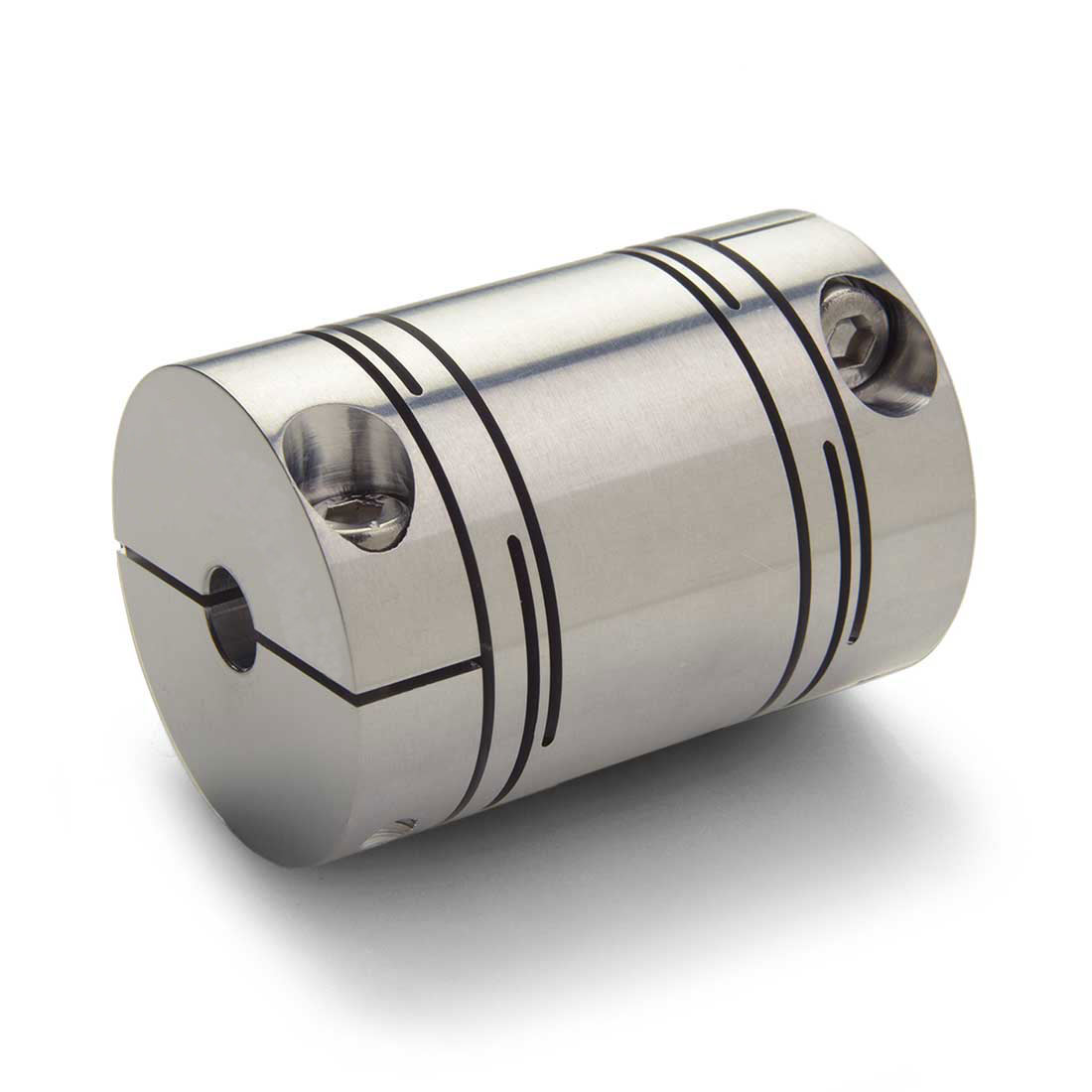

0.188" X 3mm Long Slit Coupling
0.630" (16.0mm) Od
0.925" (23.5mm) Length
Aluminum
Clamp Style
0.630" (16.0mm) Od
0.925" (23.5mm) Length
Aluminum
Clamp Style

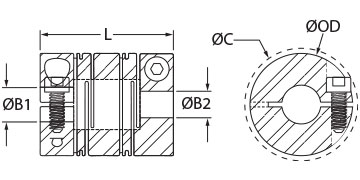

Bore (B1)
0.1875 in
Bore (B2)
3 mm
O.D. (D)
0.630 in (16.0 mm)
Length (L)
0.925 in (23.5 mm)
This quantity is not fully in stock. Leave your contact details below and we will confirm availability for the remainder.
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Dynamic Torque Non-Reversing
7.5 lb-in (0.85 Nm)
Finish Specification
SurTec 650
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163003
Clearance Diameter (C) MAX
0.709 in (18.0 mm)
Cap Screw
M2
Dynamic Torque Reversing
4.9 lb-in (0.55 Nm)
Maximum Speed
10000 RPM
Torsional Stiffness
12.4 lb-in/Deg (1.4 Nm/Deg)
Angular Misalignment
2.5 deg
Parallel Misalignment
0.008 in (0.20 mm)
Axial Motion
0.016 in (0.40 mm)
Peak Torque
11.1 in-lb (1.25 Nm)
Moment of Inertia
0.0012302 lb-in²
Country of Origin
Ireland
Hex Wrench Size
1.5 mm
Length (L)
0.925 in (23.5 mm)
Bore Tolerance
+0.001 in / -0.000 in (+0.020 mm / -0.000 mm)
O.D. (D)
0.630 in (16.0 mm)
Material
Aluminum
Bore (B1)
0.1875 in
Bore (B2)
3 mm
B1 Max Shaft Penetration
0.311 in (7.9 mm)
B2 Max Shaft Penetration
0.311 in (7.9 mm)
Screw Material
18-8 300 Series Stainless Steel
Seating Torque
0.36 Nm
Screw Finish
Bright
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Number of Screws
2
Material Specification
7075-T651 Bar
