RLS13-5/16″-5MM-A
Manufacturer
Ruland
Description

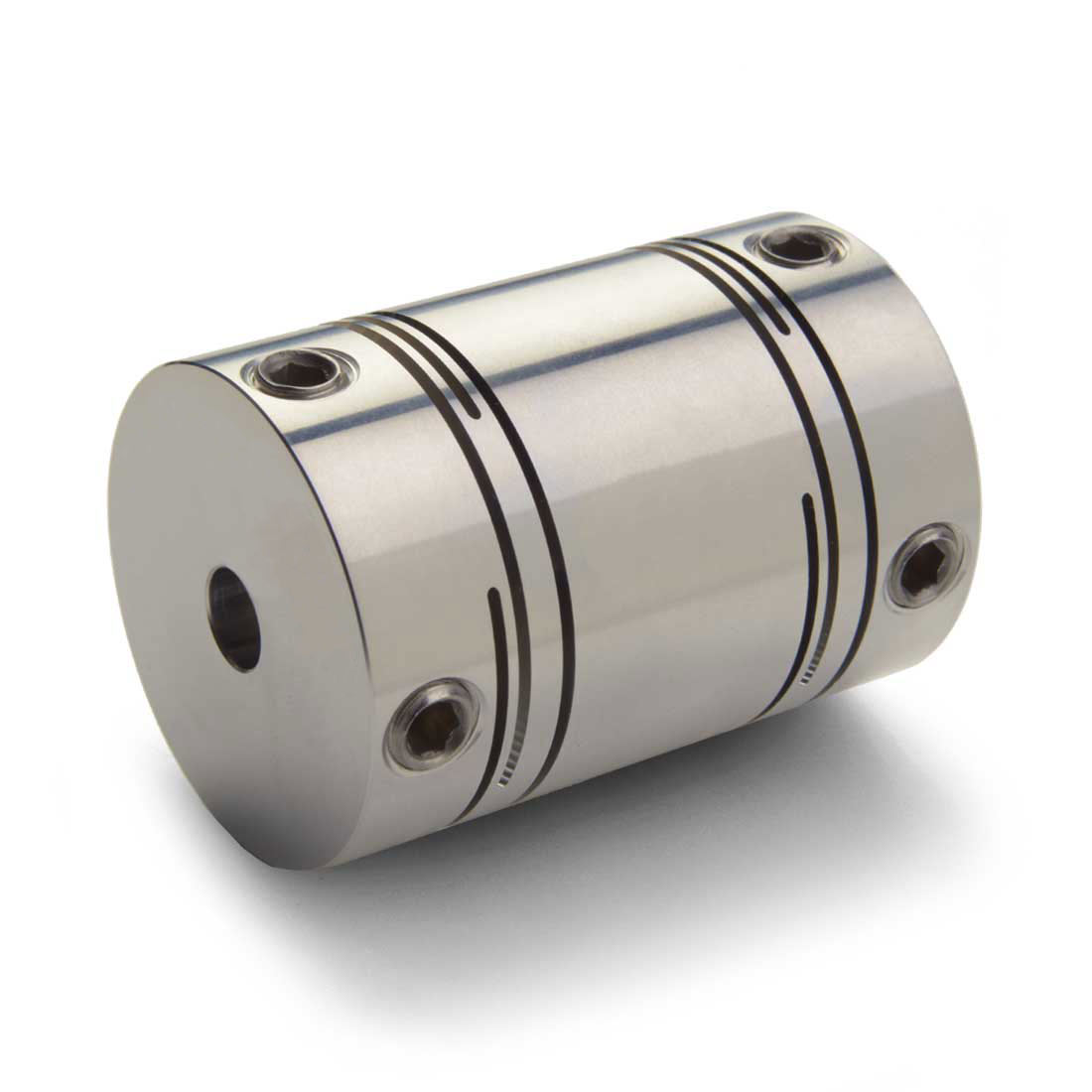

0.313" X 5mm Long Slit Coupling
0.787" (20.0mm) Od
1.024" (26.0mm) Length
Aluminum
Set Screw Style
0.787" (20.0mm) Od
1.024" (26.0mm) Length
Aluminum
Set Screw Style

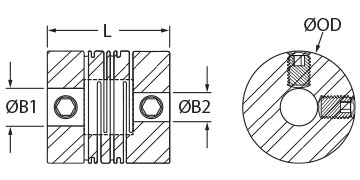

Bore (B1)
0.3125 in
Bore (B2)
5 mm
O.D. (D)
0.787 in (20.0 mm)
Length (L)
1.024 in (26.0 mm)
This quantity is not fully in stock. Leave your contact details below and we will confirm availability for the remainder.
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Dynamic Torque Non-Reversing
17.3 lb-in (1.95 Nm)
Country of Origin
Ireland
Finish Specification
SurTec 650
Zero-Backlash?
Yes
Forged Set Screw
M4
Balanced Design
Yes
UNSPC
31163003
Dynamic Torque Reversing
11.5 lb-in (1.30 Nm)
Hex Wrench Size
2.0 mm
Torsional Stiffness
20.4 lb-in/Deg (2.3 Nm/Deg)
Angular Misalignment
3.0 deg
Parallel Misalignment
0.010 in (0.25 mm)
Axial Motion
0.020 in (0.51 mm)
Peak Torque
28.8 in-lb (3.25 Nm)
Moment of Inertia
0.0033829 lb-in²
Maximum Speed
15000 RPM
Seating Torque
1.76 Nm
Length (L)
1.024 in (26.0 mm)
Bore Tolerance
+0.001 in / -0.000 in (+0.020 mm / -0.000 mm)
O.D. (D)
0.787 in (20.0 mm)
Material
Aluminum
Bore (B1)
0.3125 in
Bore (B2)
5 mm
B1 Max Shaft Penetration
0.339 in (8.6 mm)
B2 Max Shaft Penetration
0.339 in (8.6 mm)
Screw Material
18-8 300 Series Stainless Steel
Number of Screws
4
Screw Finish
Bright
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Material Specification
7075-T651 Bar
