RLS16-5-4-A
Manufacturer
Ruland
Description

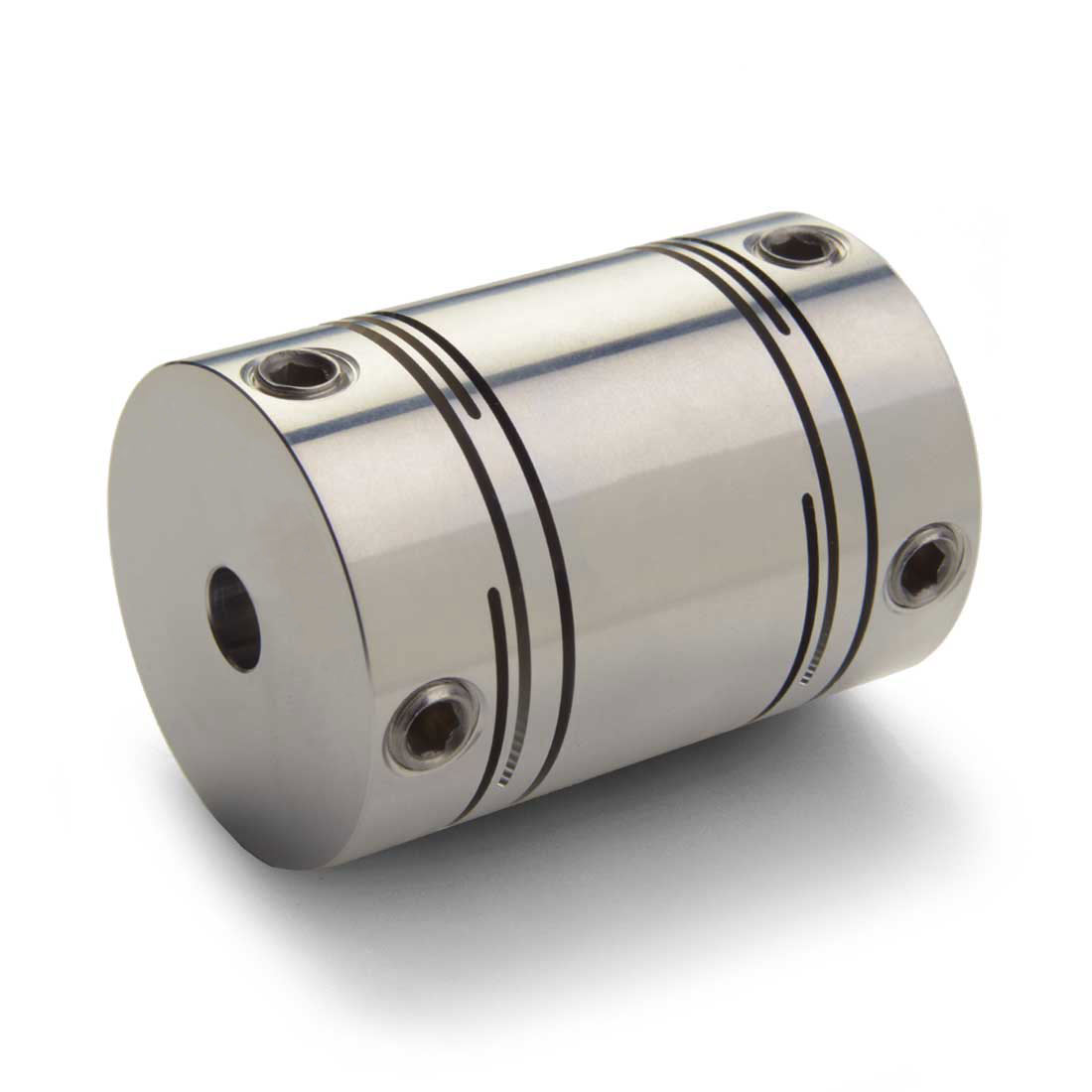

0.313" X 0.250" Long Slit Coupling
0.984" Od
1.339" Length
Aluminum
Set Screw Style
0.984" Od
1.339" Length
Aluminum
Set Screw Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Dynamic Torque Non-Reversing
27.4 lb-in
Country of Origin
Ireland
Finish Specification
SurTec 650
Zero-Backlash?
Yes
Forged Set Screw
M5
Balanced Design
Yes
UNSPC
31163003
Dynamic Torque Reversing
18.1 lb-in
Hex Wrench Size
2.5 mm
Torsional Stiffness
33.6 lb-in/Deg
Angular Misalignment
3.0 deg
Parallel Misalignment
0.016 in
Axial Motion
0.028 in
Peak Torque
46 in-lb
Moment of Inertia
0.01087 lb-in²
Maximum Speed
12000 RPM
Seating Torque
3.20 Nm

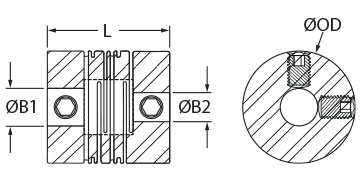

Length (L)
1.339 in
Bore Tolerance
+0.001 in / -0.000 in
O.D. (D)
0.984 in
Material
Aluminum
Bore (B1)
0.3125 in
Bore (B2)
0.2500 in
B1 Max Shaft Penetration
0.378 in
B2 Max Shaft Penetration
0.378 in
Screw Material
18-8 300 Series Stainless Steel
Number of Screws
4
Screw Finish
Bright
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Material Specification
7075-T651 Bar
