RSC13-5-3-A
Manufacturer
Ruland
Description

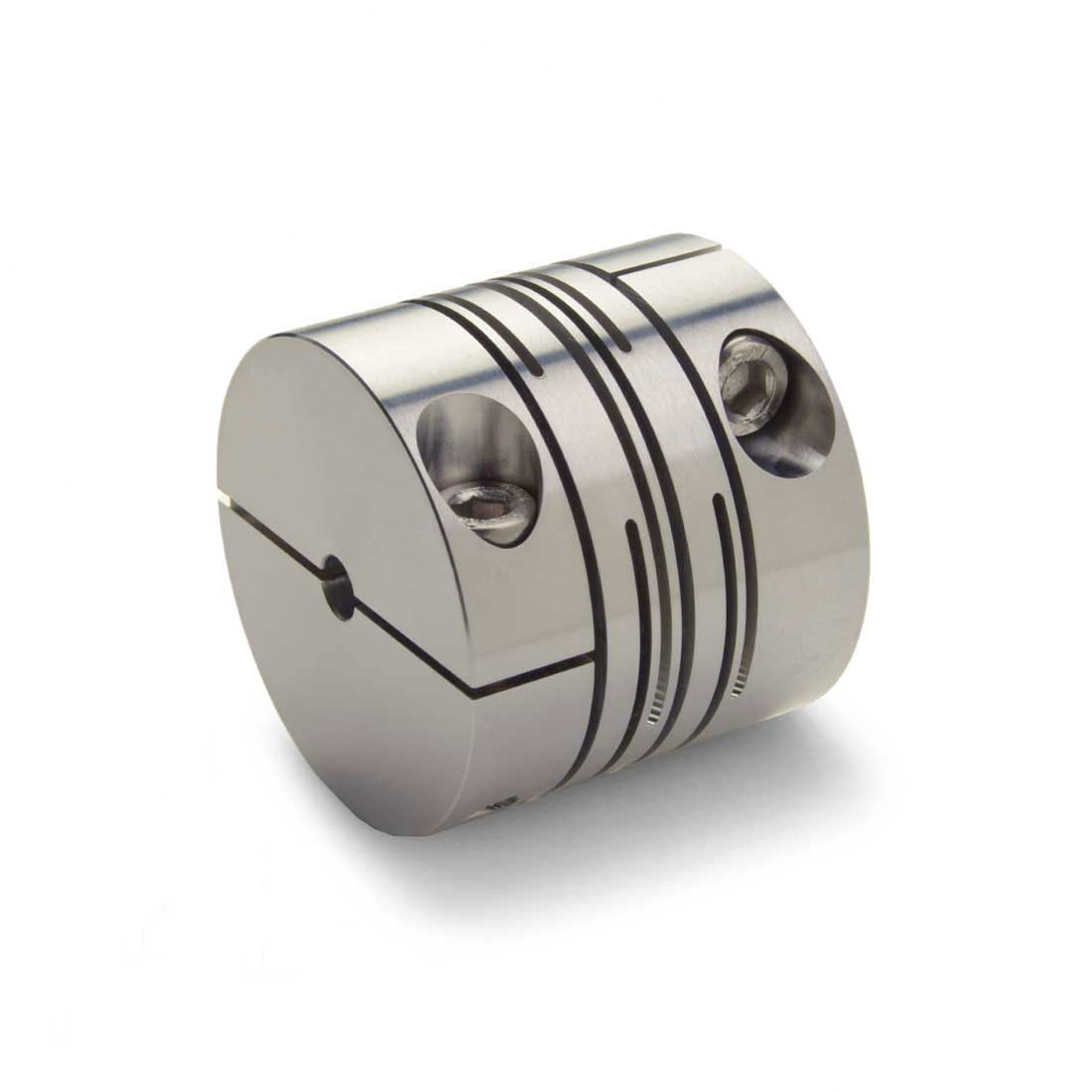

0.313" X 0.188" Short Slit Coupling
0.787" Od
0.846" Length
Aluminum
Clamp Style
0.787" Od
0.846" Length
Aluminum
Clamp Style

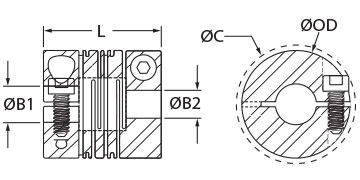

Bore (B1)
0.3125 in
Bore (B2)
0.1875 in
O.D. (D)
0.787 in
Length (L)
0.846 in
This quantity is not fully in stock. Leave your contact details below and we will confirm availability for the remainder.
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Dynamic Torque Non-Reversing
12.8 lb-in
Finish Specification
SurTec 650
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163003
Clearance Diameter (C) MAX
0.858 in
Cap Screw
M2.5
Dynamic Torque Reversing
8.4 lb-in
Maximum Speed
7500 RPM
Torsional Stiffness
16.8 lb-in/Deg
Angular Misalignment
3.0 deg
Parallel Misalignment
0.005 in
Axial Motion
0.020 in
Peak Torque
21.7 in-lb
Moment of Inertia
0.0026893 lb-in²
Country of Origin
Ireland
Hex Wrench Size
2.0 mm
Length (L)
0.846 in
Bore Tolerance
+0.001 in / -0.000 in
O.D. (D)
0.787 in
Material
Aluminum
Bore (B1)
0.3125 in
Bore (B2)
0.1875 in
B1 Max Shaft Penetration
0.339 in
B2 Max Shaft Penetration
0.339 in
Screw Material
18-8 300 Series Stainless Steel
Seating Torque
0.73 Nm
Screw Finish
Bright
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Number of Screws
2
Material Specification
7075-T651 Bar
