RSC16-3/8″-5MM-A
Manufacturer
Ruland
Description

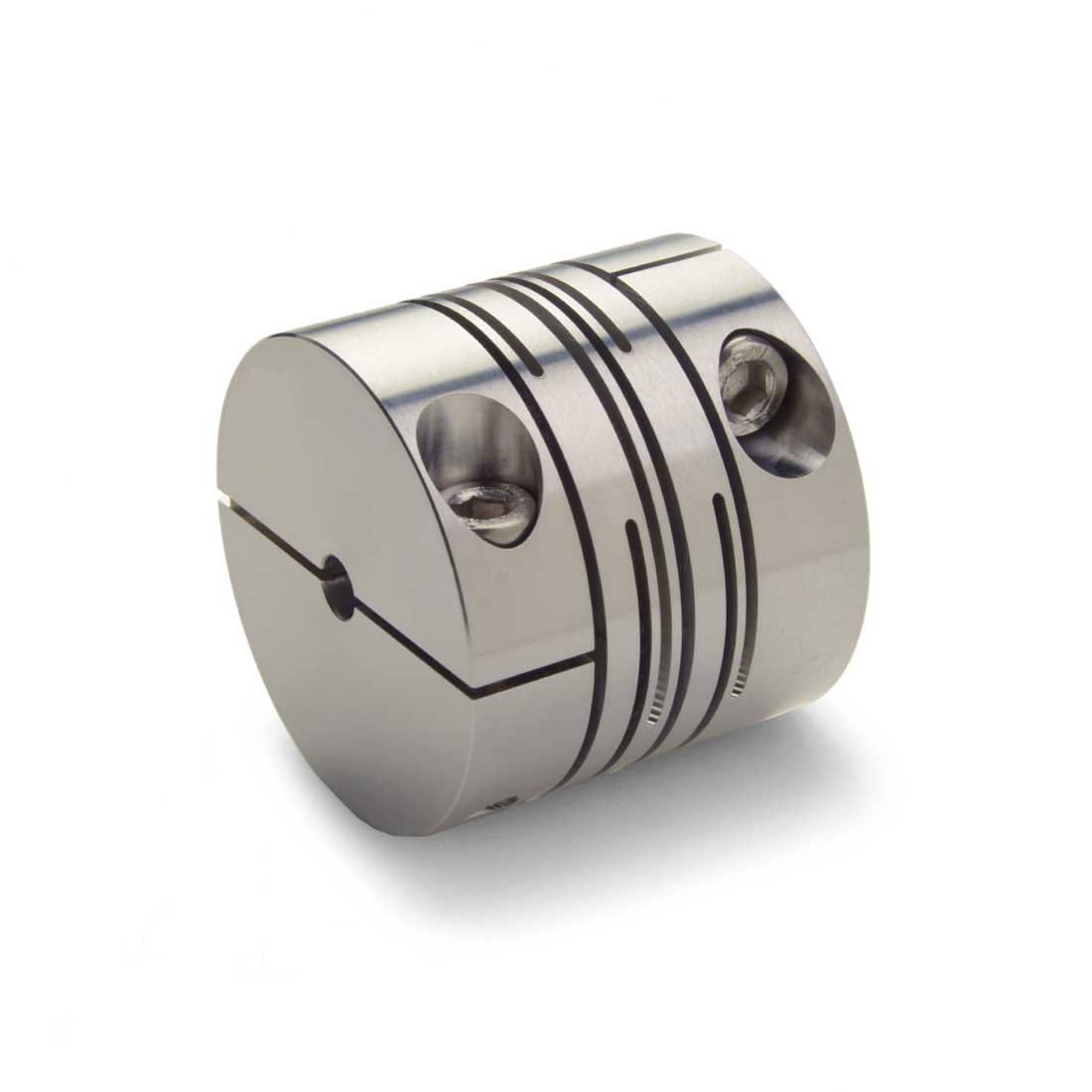

0.375" X 5mm Short Slit Coupling
0.984" (25.0mm) Od
1.016" (25.8mm) Length
Aluminum
Clamp Style
0.984" (25.0mm) Od
1.016" (25.8mm) Length
Aluminum
Clamp Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Dynamic Torque Non-Reversing
20.8 lb-in (2.35 Nm)
Finish Specification
SurTec 650
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163003

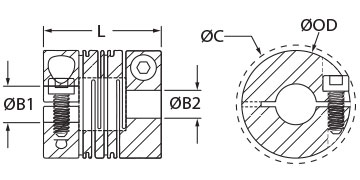

Clearance Diameter (C) MAX
1.059 in (26.9 mm)
Cap Screw
M3
Dynamic Torque Reversing
13.7 lb-in (1.55 Nm)
Maximum Speed
5000 RPM
Torsional Stiffness
27.4 lb-in/Deg (3.1 Nm/Deg)
Angular Misalignment
3.0 deg
Parallel Misalignment
0.016 in (0.40 mm)
Axial Motion
0.028 in (0.70 mm)
Peak Torque
34.5 in-lb (3.90 Nm)
Moment of Inertia
0.0076856 lb-in²
Country of Origin
Ireland
Hex Wrench Size
2.5 mm
Length (L)
1.016 in (25.8 mm)
Bore Tolerance
+0.001 in / -0.000 in (+0.020 mm / -0.000 mm)
O.D. (D)
0.984 in (25.0 mm)
Material
Aluminum
Bore (B1)
0.3750 in
Bore (B2)
5 mm
B1 Max Shaft Penetration
0.378 in (9.6 mm)
B2 Max Shaft Penetration
0.378 in (9.6 mm)
Screw Material
18-8 300 Series Stainless Steel
Seating Torque
1.10 Nm
Screw Finish
Bright
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Number of Screws
2
Material Specification
7075-T651 Bar
