RSC16-4-4-A
Manufacturer
Ruland
Description

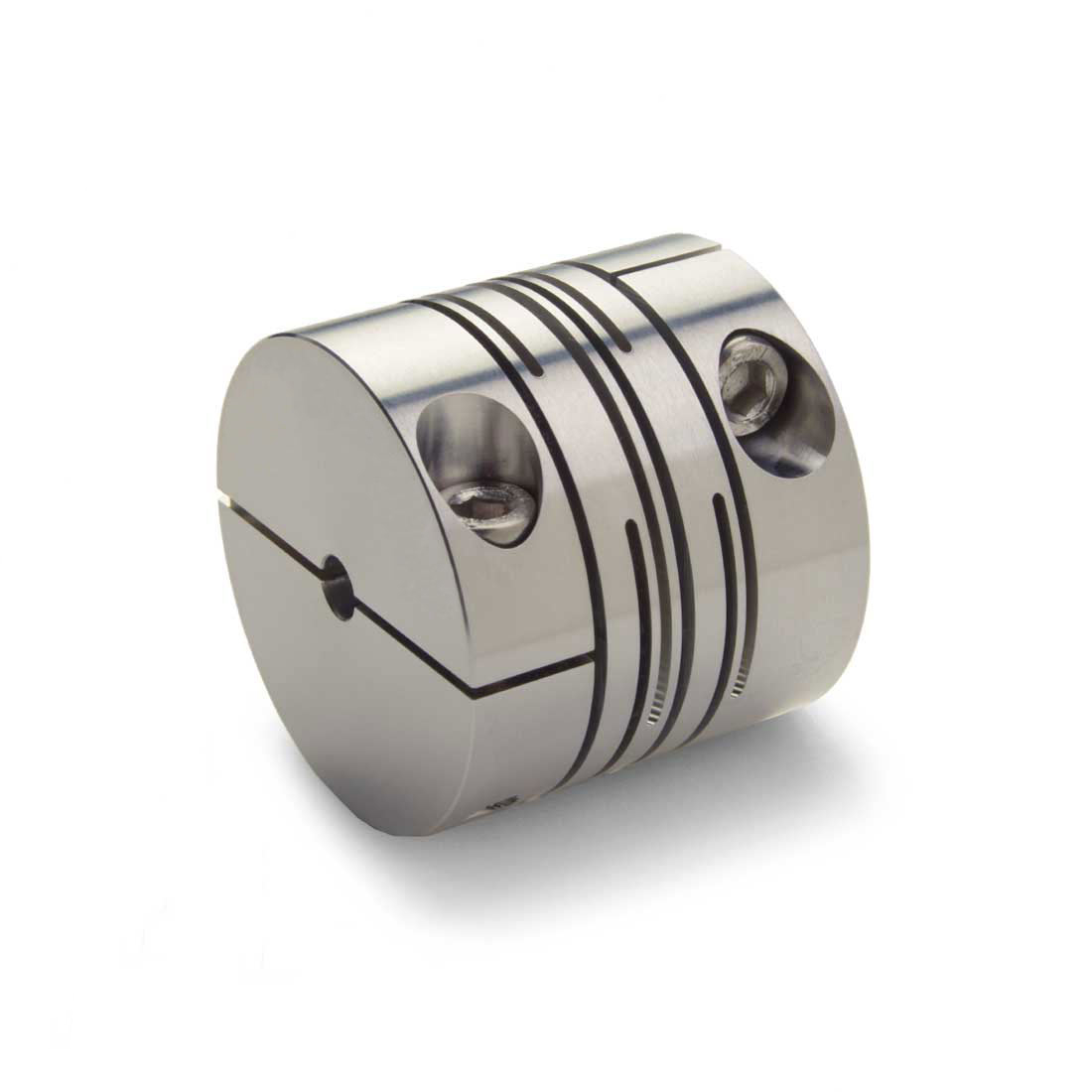

0.250" X 0.250" Short Slit Coupling
0.984" Od
1.016" Length
Aluminum
Clamp Style
0.984" Od
1.016" Length
Aluminum
Clamp Style

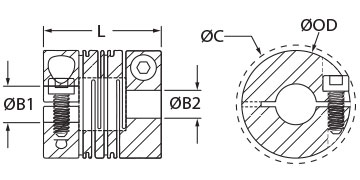

Bore (B1)
0.2500 in
Bore (B2)
0.2500 in
O.D. (D)
0.984 in
Length (L)
1.016 in
This quantity is not fully in stock. Leave your contact details below and we will confirm availability for the remainder.
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Dynamic Torque Non-Reversing
20.8 lb-in
Finish Specification
SurTec 650
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163003
Clearance Diameter (C) MAX
1.059 in
Cap Screw
M3
Dynamic Torque Reversing
13.7 lb-in
Maximum Speed
5000 RPM
Torsional Stiffness
27.4 lb-in/Deg
Angular Misalignment
3.0 deg
Parallel Misalignment
0.016 in
Axial Motion
0.028 in
Peak Torque
34.5 in-lb
Moment of Inertia
0.0077489 lb-in²
Country of Origin
Ireland
Hex Wrench Size
2.5 mm
Length (L)
1.016 in
Bore Tolerance
+0.001 in / -0.000 in
O.D. (D)
0.984 in
Material
Aluminum
Bore (B1)
0.2500 in
Bore (B2)
0.2500 in
B1 Max Shaft Penetration
0.378 in
B2 Max Shaft Penetration
0.378 in
Screw Material
18-8 300 Series Stainless Steel
Seating Torque
1.10 Nm
Screw Finish
Bright
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Number of Screws
2
Material Specification
7075-T651 Bar
