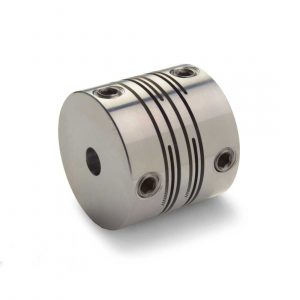

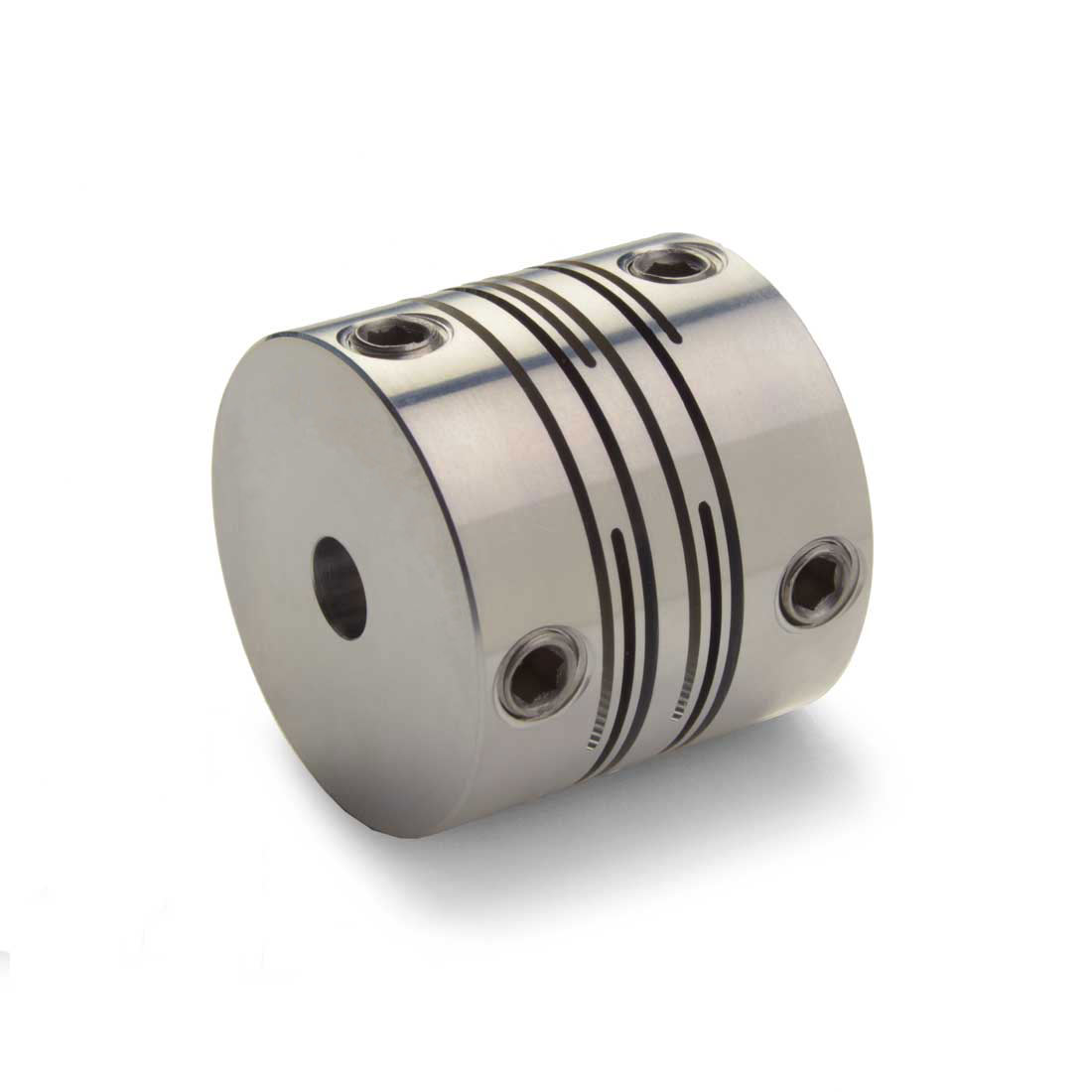

RSS16-8MM-5/16″-A
Manufacturer
Ruland
Description
8mm X 0.313" Short Slit Coupling
0.984" (25.0mm) Od
1.016" (25.8mm) Length
Aluminum
Set Screw Style
0.984" (25.0mm) Od
1.016" (25.8mm) Length
Aluminum
Set Screw Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Dynamic Torque Non-Reversing
27.4 lb-in (3.10 Nm)
Country of Origin
Ireland
Finish Specification
SurTec 650
Zero-Backlash?
Yes
Forged Set Screw
M5
Balanced Design
Yes
UNSPC
31163003
Dynamic Torque Reversing
18.3 lb-in (2.05 Nm)
Hex Wrench Size
2.5 mm
Torsional Stiffness
26.6 lb-in/Deg (3.0 Nm/Deg)
Angular Misalignment
3.0 deg
Parallel Misalignment
0.006 in (0.15 mm)
Axial Motion
0.028 in (0.70 mm)
Peak Torque
46.0 in-lb (5.20 Nm)
Moment of Inertia
0.0078662 lb-in²
Maximum Speed
15000 RPM
Seating Torque
3.20 Nm

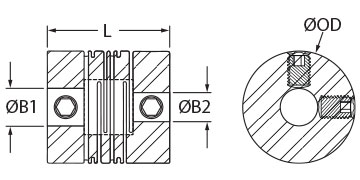

Length (L)
1.016 in (25.8 mm)
Bore Tolerance
+0.001 in / -0.000 in (+0.020 mm / -0.000 mm)
O.D. (D)
0.984 in (25.0 mm)
Material
Aluminum
Bore (B1)
8 mm
Bore (B2)
0.3125 in
B1 Max Shaft Penetration
0.378 in (9.6 mm)
B2 Max Shaft Penetration
0.378 in (9.6 mm)
Screw Material
18-8 300 Series Stainless Steel
Number of Screws
4
Screw Finish
Bright
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Material Specification
7075-T651 Bar
