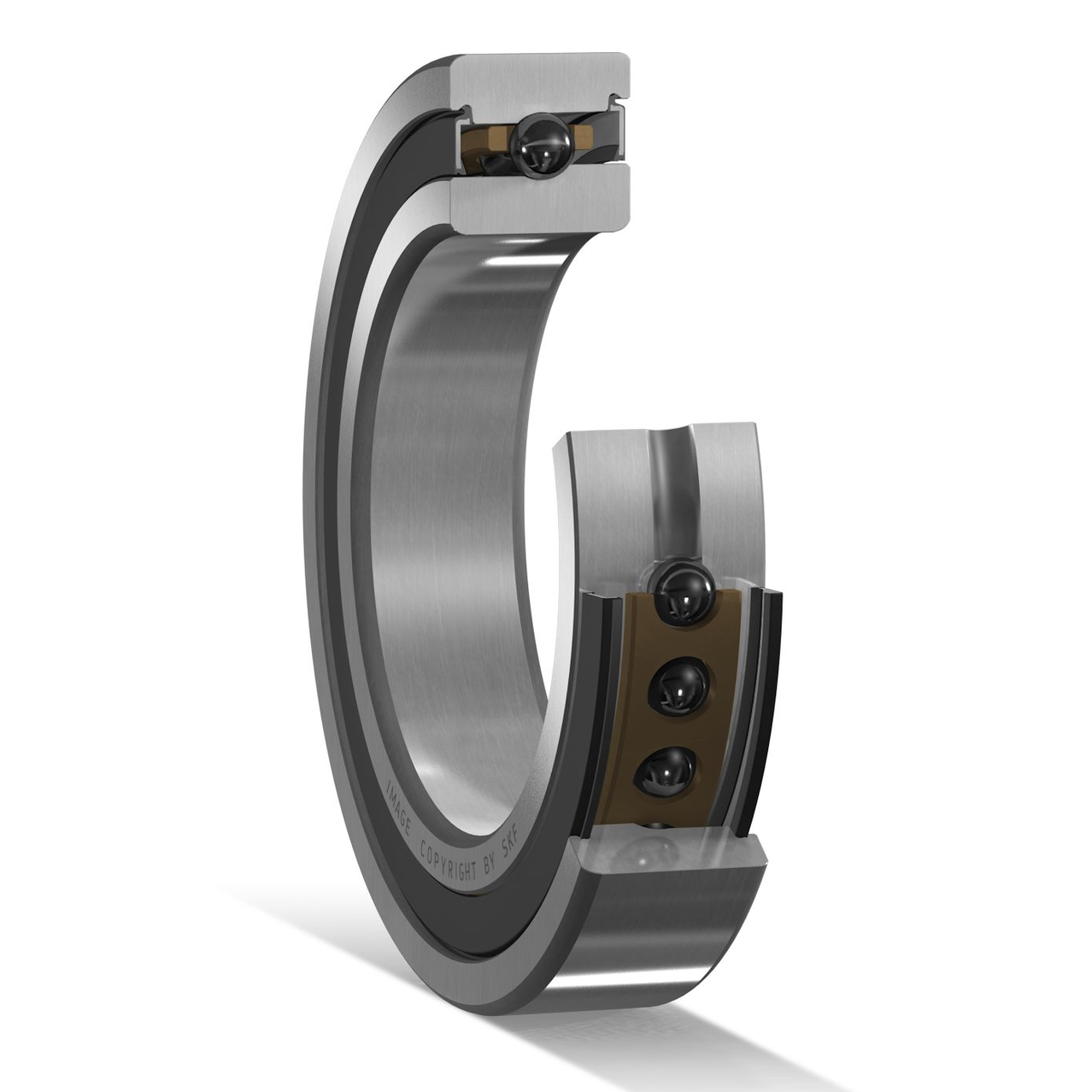

S71914 CBGA/HCP4A
Manufacturer
SKF
Description
70mm X 100mm X 16mm
Super Precision Thrust Ball
Angular Contact Screw Drive
15° High-speed B Design
Single - Universal Matched
Super Precision Thrust Ball
Angular Contact Screw Drive
15° High-speed B Design
Single - Universal Matched
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Bore Diameter (d)
70 mm
Outside Diameter (D)
100 mm
Width (B)
16 mm
Contact Angle
15° high-speed B design
Bearing Arrangement
Single - Universal Matched
Brand
SKF
Precision
P4A
Ring Material
Chrome Steel 100Cr6
Ball Material
Ceramic Si3N4
Preload
Light Preload
Dynamic Load(Cr)
3102 lbs
Static Load(C0r)
2810 lbs
Closure
Rubber Seal
