Bearing Used in Welding Robots

This article explains bearings commonly specified in welding robots and gives a practical approach in selecting the best solution.

Key Notes:

• Welding robots can load bearings in all three directions (Fr/Fa/M) and often under shock; the bearings selected and their orientation create the (stack) that affects stiffness and lost motion.
• Clearance and preload can result in too much or too little  play creating heat, and energy waste or being too loose.
• Seals are critical in harsh environments, however contact seals can increase torque or drag in the bearing—so sealing and lubrication should be considered together.
• Crossed-roller and four-point contact bearings are popular in rotary actuators specifically because they can handle combined loads compactly (crossed-roller often are used as an output bearing and the  four-point contact bearing is often specified as an input bearing).

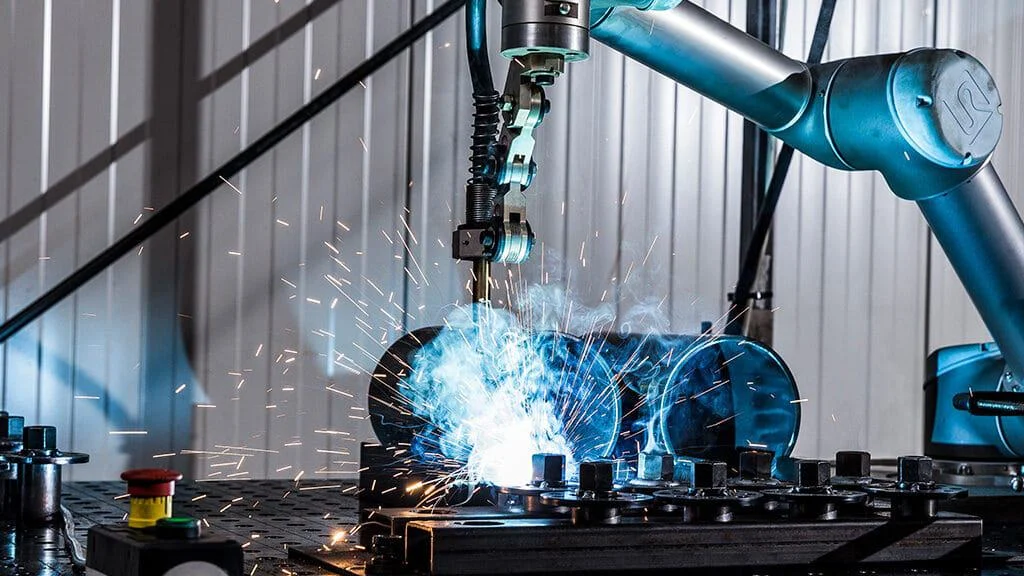

What is a Welding Robot?

A welding robot is a precision motion system. Welding robots are automated, programmable, and specialized . Welding robots are used as industrial robots and collaborative robots (cobots) that can effectively produce high-precision arc,  MIG, Sport or TIG welding. Welding robots can improve productivity for repetitive, high-mix/low-volume, and particularly complex production tasks.

At the wrist and elbow, various loads create combined forces and moments; at the base and external positioners, large lever arms and payload offsets create high overturning moment (M) loading.

Welding environments are commonly aggressive enough that the robot-protection industry explicitly designs covers for “heat radiation and splatter from hot particles” in welding and other high-temperature processes. Even if your bearing is internal, the joint is living in that thermal environment and selecting the best seals, grease, and cages are needed to survive in it.

Second, contamination is relentless. In robotics, seals are often described as the first line of defense — preventing dirt/dust/water/abrasives from ingress and keeping lubrication inside the bearing. But protection isn’t binary: even shielded bearings can have small gaps that permit particle entry, and NMB highlights that particle contamination can critically affect bearing performance.

Also don’t underestimate shock. NMB’s handling guidance notes that dropping a bearing can brinell it (dent raceways) and lead to high acoustic noise in operation, and that bearings are easily affected by shock forces.

Bearing Types Used in Welding Robots and Where they Belong

There’s no universal “welding robot bearing”. Selecting bearings that meet the application needs such as  speed support, stiffness and repeatability, misalignment management, or large-diameter moment handling.

Deep groove ball bearings (DGBB): the speed-and-simplicity backbone
Deep groove ball bearings are widely used because they’re simple, durable, and easy to maintain, and they’re designed for radial load with limited axial load capability. In robots, they are in motors, auxiliary shafts, linear-actuator supports, and used where high speed and low friction matter more than maximum moment stiffness.

Angular contact ball bearings and duplex pairs: precision under combined loads
Angular contact bearings manage axial load in one direction and typically get paired for bidirectional axial capability useful in robot joints where direction reversals are normal.

PIB’s WIB brand  SA angular contact bearing overview adds what designers actually need for welding robots: typical contact-angle “families” (e.g., 15° or 30°), high-speed performance (often tens of thousands RPM depending on size and lubrication), and configuration options like ceramic balls, polymer cages, seals/shields, and custom lubrication.

Four-point contact bearings: compact combined-load packages (often actuator input bearings)
Four-point contact bearings are built to handle radial and axial loads in both directions, and TechBriefs describes them as versatile, compact, and cost-effective—often used as the input bearing in rotary actuators. If your axis is packaging-limited and you want fewer parts than a duplex stack, four-point contact is often the best solution.

Crossed-roller bearings: high stiffness for Fr + Fa + M (often actuator output bearings)
Crossed-roller bearings are popular in robot wrists and rotary tables when you need high rigidity and rotational accuracy in a compact footprint; PIB’s materials describe crossed-roller bearings as ideal for space-constrained applications including industrial robots and turntables/precision indexing mechanisms.

PIB’s own application writeup on crossed rollers (via IKO CRBF series examples) provides a useful “typical size/range” anchor: CRBFV shaft diameters roughly 35–115 mm and CRBHV roughly 30–250 mm, with options for seal/no-seal, accuracy classes (P2 to P6), and preload/clearance variants (T1, C1, C2).

Cylindrical roller bearings: heavy radial load capacity in drivetrains
Cylindrical roller bearings are often selected for high radial loads and robustness, especially inside gearboxes/reducers and heavy drivetrain sections. PIB’s guidance on roller bearings highlights that roller bearings (including cylindrical) are designed to carry heavy radial loads with better load distribution due to larger contact area than ball bearings.

Tapered roller bearings: combined radial+axial loads with adjustable rigidity
Tapered roller bearings are a strong candidate for heavier rotational axes (base axis modules, external axes, and some positioners) where you want combined radial+axial capacity and a rigid arrangement. PIB’s bearing selection guidance notes that tapered roller bearings accommodate both radial and axial loads simultaneously and are available in multiple configurations (single-row through multi-row) to match load capacity needs.

Spherical plain bearings and rod ends: misalignment and linkage control
If you have linkages (dress pack guides, compliance mechanisms, peripheral tooling), rod ends and spherical plain bearings allow angular misalignment without binding. PIB’s selection guidance describes rod end bearings as a spherical bearing inside a housing that accommodates angular misalignments, typically used in oscillating motion and linkages.

Slewing/turntable bearings (slewing rings): big moments for base axes and positioners
When an axis becomes a turntable robot bases, turrets, heavy swivels, palletizing turntables, or external positioners, slewing ring bearings are a possible  fit. PIB notes that slewing rings (some exceeding a meter in diameter) support and rotate platforms such as turret mechanisms or swiveling robot chassis, carry very high axial and radial loads, may use balls or crossed rollers, and may incorporate gear teeth. In dusty, impact, continuous-duty conditions, robust designs with protections like triple-lip seals and grease reservoirs are favored.

Clearance vs. preload: the repeatability torque trade

Сlearance  leads to motion-transfer delays, reduced accuracy, shaking/jerky motion, and rattling noise from vibration; too much clearance also increases wear and reduces life expectancy. Torque must also be carefully managed — high torque means excessive power consumption; too little torque can imply increased clearance.

Practical welding-robot translation:

If the axis must hold a tight weld path (wrist orientation, seam tracking, coordinated motion), bias toward architectures that let you control preload and stiffness (crossed roller, duplex ACBB stacks, some four-point solutions). If the axis is speed-dominated and lightly moment-loaded (certain motor shafts), you may tolerate more clearance but must protect sealing and lubrication life.

Lubrication:

What survives heat, what survives speed, what survives your maintenance plan
NMB’s lubrication guidance states lubricant selection affects bearing life, torque, speed, noise, grease migration/outgassing, temperature performance, and rust prevention.

It also spells out a key decision point: grease is used where frequent replenishment is undesirable or impossible, but grease (vs. oil) generally increases starting and running torque and can limit bearing speed. In welding robots, that matters because you’re often juggling heat (which changes viscosity) and production uptime (which discourages frequent relubrication).

Engineering sources note that many robotic bearing designs are available with self-lubricating materials or greased-for-life options to remove the need to regrease at specified intervals—one reason some OEMs prefer sealed, pre-lubricated solutions in harsh environments.

Sealing:

TechBriefs describe seals as the first line of defense: they prevent dirt/dust/water/abrasives from ingress and keep lubrication inside bearings; it also warns that if grease exits bearings, it can lead to premature failure.

Seal contact increases friction, affecting torque; TechBriefs explicitly calls out full contact seal impact on torque and how seal design/material advances aim to mitigate friction.

PIB’s sealing-focused content gives weld-cell designers a practical toolkit:  SKF cassette seals can add an extra wear sleeve for equipment exposed to heavy contamination, and secondary dust protection options like V-rings and axial excluders can help in dirty environments.

Where that becomes a “before/after” story in welding cells:

Before: A robot runs good until contamination wears a groove into the sealing surface, grease escapes, dirt enters, joint torque rises, and repeatability degrades.
After: You treat the seal running surface as a designed interface. PIB’s wear sleeve guidance explains how wear sleeves restore/replace sealing counterfaces, improving sealing effectiveness when shafts wear.

Materials and coatings:

Corrosion resistance, heat tolerance, and friction control
PIB’s WIB brand  SA angular contact  bearings offer a few options: (A) stainless/alloy choices, hybrid designs with ceramic balls (to reduce mass and friction), polymer cages (lighter/quieter) and metal cages (high-temperature strength), plus open/shielded/sealed options and custom lubrication choices. These are design considerations when humidity, cleaning chemicals, elevated temperatures, and contamination risk are present in the application..

Mounting and fit:

Bearings fail if seats are wrong, housings flex, or installation introduces misalignment. PIB’s “key factors” guidance emphasizes that bearing selection is not just “finding a part that dimensionally  fits,” but  factors like fit, mounting, and maintenance directly affect performance.

NMB warns that particle contamination critically affects bearing performance and that even shielded bearings can allow particle entry through small gaps, so storage, handling, and cleanliness practices belong in your spec and assembly plan.

Actuator interfaces:

Where bearings meet gears, the load case changes
Many welding robot joints are rotary actuators with gear reduction. TechBriefs lays out a common architecture: crossed rollers as actuator output bearings; four-point contact bearings as input bearings; and flexible ball bearings in wave generators of harmonic drive mechanisms.

PIB’s robotics content also notes that flexible bearings produced by TPI are used in strain wave gears (a harmonic-drive class) to transfer waveform and accommodate radial loading—useful context when you’re troubleshooting why a bearing sees unexpected radial/axial components in a compact reducer.

Spec comparison table

Example spec lines table

Maintenance, Inspection, and Sourcing

Because your payload, cycle rate, ambient temperature, and IP target are unspecified, any “one-size interval” would be fiction. What you can do immediately is define a maintenance strategy that is measurable and maps to bearing failure modes:

• If you want minimal planned downtime, prefer bearing solutions that can be greased-for-life or self-lubricating where appropriate, and then use condition indicators (axis torque/current trend, temperature rise, vibration/noise change) to trigger inspection. TechBriefs explicitly notes many robotic bearing designs are available with self-lubricating materials or greased-for-life options to remove the need for regreasing at specified intervals.
• When you do plan relubrication, treat the  lubricant choice as an engineering spec: NMB stresses that lubrication affects life, torque, speed, noise, grease migration, temperature, and rust prevention—and notes grease generally increases torque compared to oil and can limit speed.
• Put contamination control into the assembly plan, not just the BOM: NMB warns that particle contamination critically affects bearing performance and that even shielded bearings can allow particle entry through small gaps.

FAQ

Which bearing type is most common in welding robot wrists?
Wrist joints often benefit from architectures that can resist combined Fr/Fa/M with high stiffness; crossed-roller bearings are commonly used as actuator output bearings for exactly that combined-load role, while four-point contact bearings show up as compact input-bearing solutions.

Why did our weld path get “sloppier” over time?
Loss of repeatability often tracks to increased clearance from wear or contamination. TechBriefs links excessive clearance to motion transfer delays, imprecise positioning, and reduced accuracy; and NMB highlights how particle contamination can directly affect bearing performance.

Should we always choose sealed bearings in welding cells?
Seals are powerful because they keep contaminants out and keep lubrication in, and TechBriefs emphasizes both functions; but seals also create friction and can raise torque, so sealing must be balanced against torque and thermal budgets. In heavy-contamination designs, PIB discusses SKF cassette seals and wear sleeves as strategies to improve sealing robustness.

How do we decide between duplex angular contact and a four-point bearing?
Duplex angular contact is the “tunable stiffness” route via preload and arrangement; four-point contact is the “compact combined-load” route and is often used as an actuator input bearing. Your decision usually comes down to packaging, stiffness requirement, and acceptable torque/heat.

What’s a sensible first RFQ if we don’t know IP rating yet?
Send bounded estimates: worst-case Fr/Fa/M with a shock factor, duty cycle target, and a description of thermal/spatter exposure zones. Then specify your torque budget and whether you prefer sealed/greased-for-life solutions or periodic relube. That information maps directly to the clearance/torque/seal tradeoffs highlighted by TechBriefs and the lubrication impacts outlined by NMB.

Use the PIB online catalog to select most suitable bearing
Start with the PIB online catalog to filter by category (bearings, radial ball bearings, rod ends, spherical plain, thin section, thrust, etc.), then narrow by dimensions and manufacturer series.
For several categories, PIB also notes you can download brand PDFs that cover specs/dimensions/applications — useful when you want an RFQ package that engineering and purchasing both trust.
